Technical Specifications
| Parameter | Specification |
|---|---|

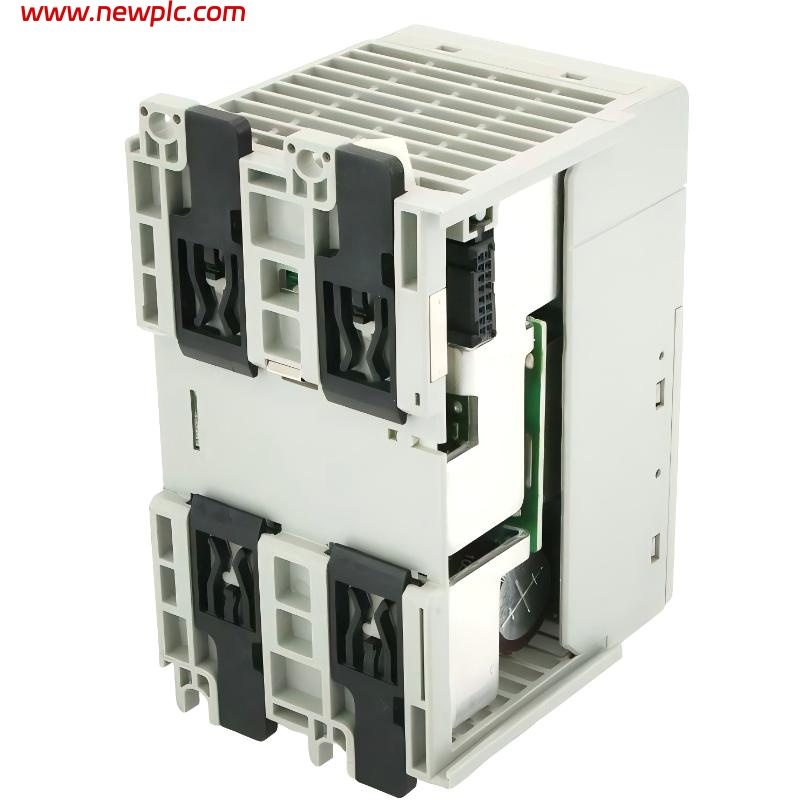

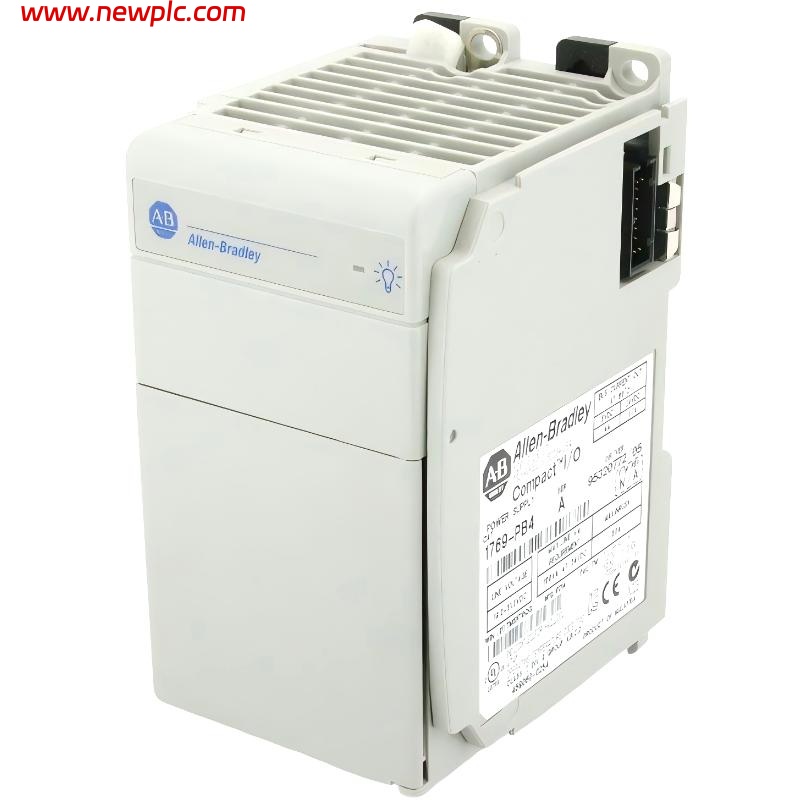

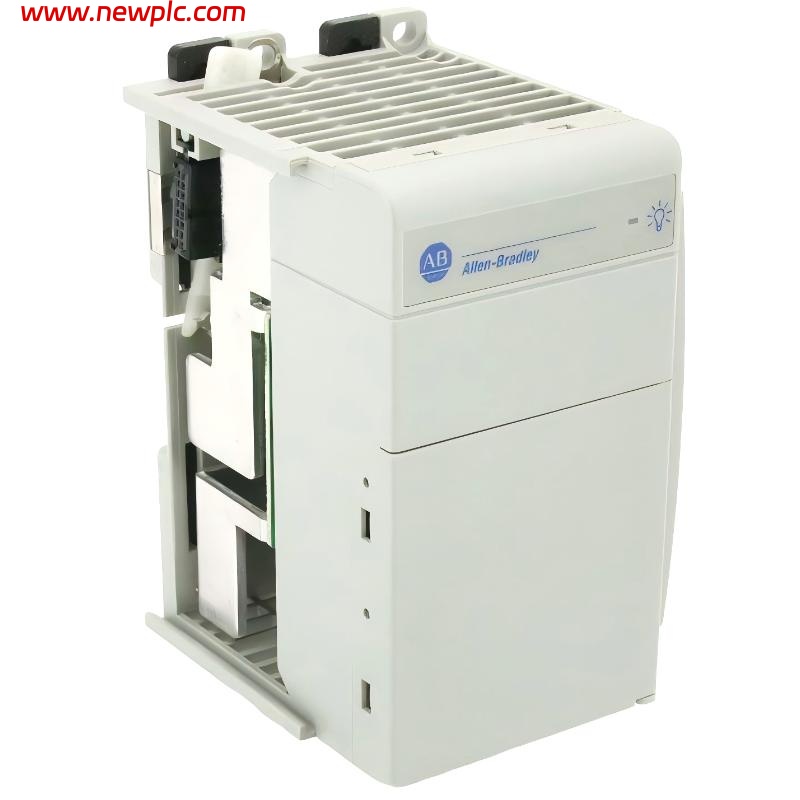

| Product Name | Allen-Bradley CompactLogix Power Supply |
| Model Number | 1769-PB4 |
| Module Type | DC input power supply for 1769 Compact I/O system |
| Input Voltage Range | 24 VDC nominal (approx. 19.2–31.2 VDC operating range) |
| Input Current | Approx. 6–10 A (depending on system load) |
| Output Voltage | 5 VDC and 24 VDC backplane power |
| Output Current | 4.0 A @ 5 VDC, 0.8 A @ 24 VDC |
| Power Capacity | Higher-capacity version for larger I/O systems |
| Protection Features | Overvoltage, overcurrent, and thermal protection |
| System Support | Supplies power to expanded 1769 Compact I/O banks |
| Mounting Type | DIN rail mounted (left-side of I/O bank) |
| Compatibility | 1769 CompactLogix and Compact I/O systems |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions (H × W × D) | 118 × 87 × 133 mm (approx.) |
| Weight | ~0.6 kg |
FAQ
FAQ
Q1. What is the 1769-PB4 used for?
It is a high-capacity DC power supply used to provide backplane power for larger Allen-Bradley 1769 Compact I/O systems.
Q2. What is the input voltage requirement?
It operates on a 24 VDC nominal input, typically within 19.2–31.2 VDC.
Q3. How is PB4 different from PB2?
PB4 provides higher current capacity, especially 4.0 A at 5V DC, making it suitable for larger systems.
Q4. What outputs does it provide?
It provides 5 VDC and 24 VDC backplane power for I/O modules.
Q5. Where is it installed?
It is installed on the left side of the Compact I/O rack.
Q6. Can it support extended I/O racks?
Yes, it is designed for larger or expanded 1769 I/O configurations.
Q7. Does it include protection features?
Yes, it includes overcurrent, overvoltage, and thermal protection.
Q8. What systems is it compatible with?
It is compatible with Allen-Bradley CompactLogix systems using 1769 Compact I/O architecture.
