Technical Specifications
| Parameter | Specification |
|---|---|

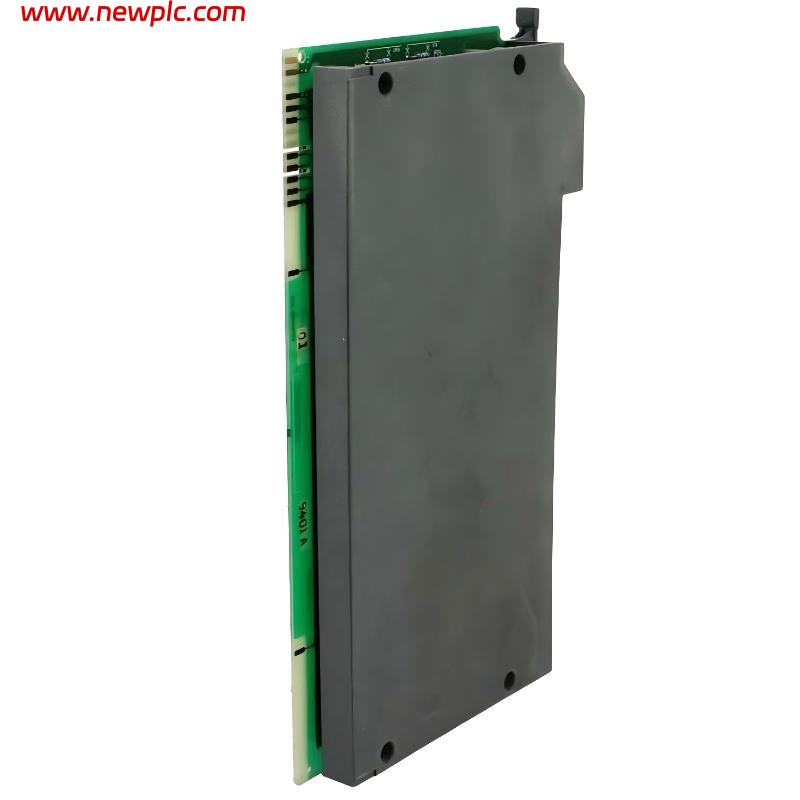

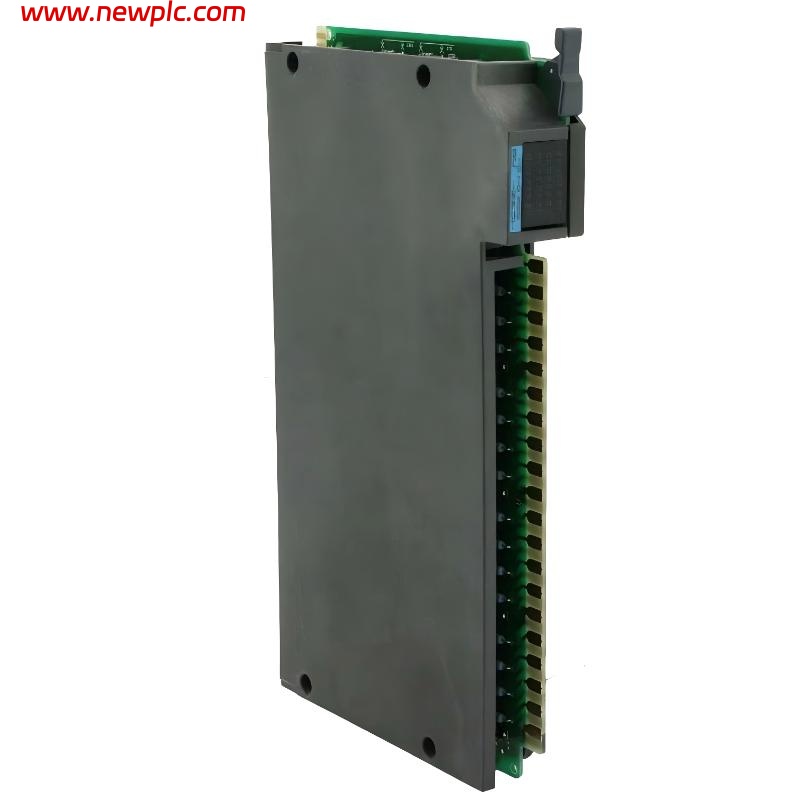

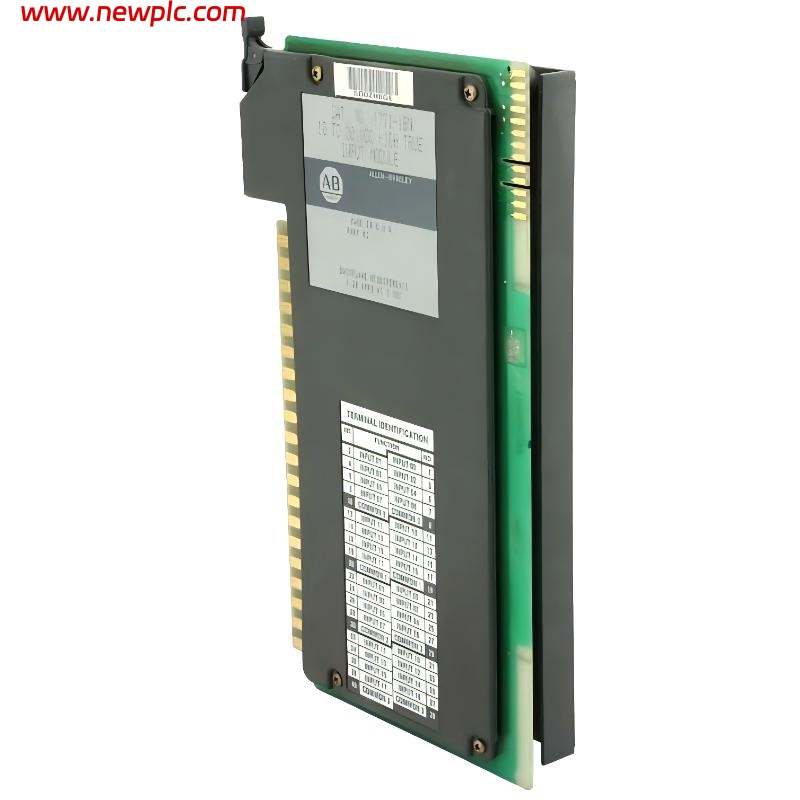

| Product Name | Allen-Bradley 1771-IBN Digital DC Input Module |
| Product Type | PLC Digital Input Module |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Series | PLC-5 (1771 Series) |
| Number of Inputs | 32 Points (4 groups × 8 inputs) |
| Input Voltage Range | 10–30 V DC |
| Input Type | Sink (source load compatible depending on wiring) |
| Input Current | Approx. 4.7 mA @ 10 V DC to 15.6 mA @ 30 V DC |
| Input Delay | ~6 ms (typical, filtered response) |
| Backplane Current | 280 mA @ 5 V DC |
| Power Dissipation | Up to 16.4 W |
| Wiring Arm | 1771-WN |
| Mounting Type | 1771 I/O chassis module |
| Operating Temperature | 0°C to 60°C |
| Dimensions (L × W × H) | 260 mm × 30 mm × 279 mm |
| Weight | 0.40 kg |
| Lifecycle Status | Discontinued (legacy PLC-5 system) |
FAQ
FAQ
Q1. What is the 1771-IBN used for?
It is used to receive 10–30 V DC digital signals from field devices such as sensors, switches, and relay contacts into a PLC system.
Q2. How many input channels does it have?
It provides 32 digital input points divided into 4 groups of 8.
Q3. What voltage range does it support?
It supports 10–30 V DC input signals.
Q4. What PLC systems is it compatible with?
It is compatible with Allen-Bradley PLC-5 systems using the 1771 I/O chassis.
Q5. What is the response time?
It has a filtered input delay of approximately 6 milliseconds.
Q6. What are the physical dimensions?
Approximately 260 mm × 30 mm × 279 mm.
Q7. What is the weight of the module?
About 0.40 kg.
Q8. Is the 1771-IBN still manufactured?
No, it is discontinued but still widely used in existing industrial installations.
