Technical Specifications
| Parameter | Specification |
|---|---|

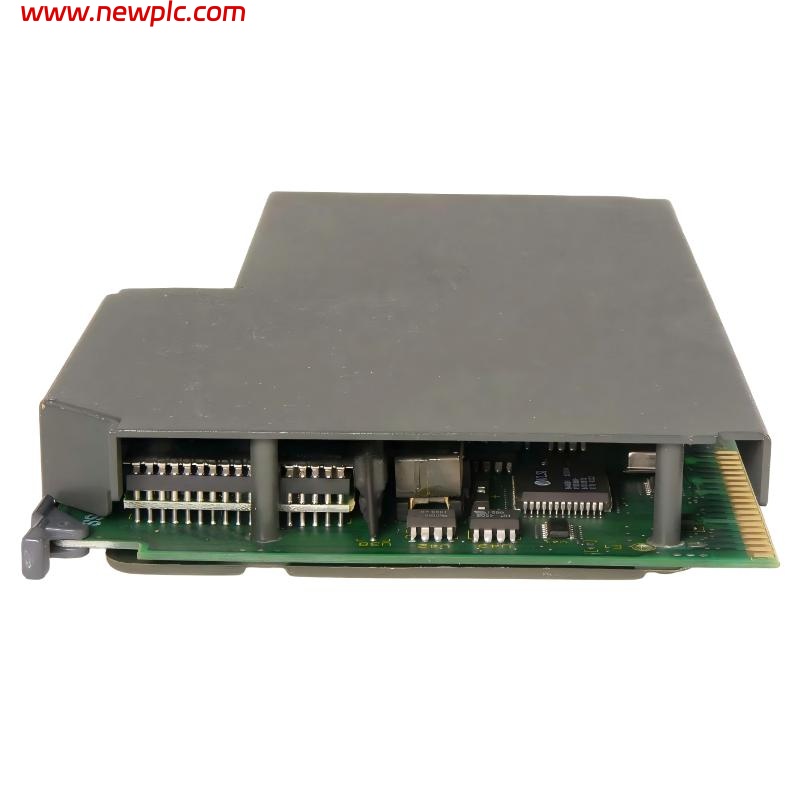

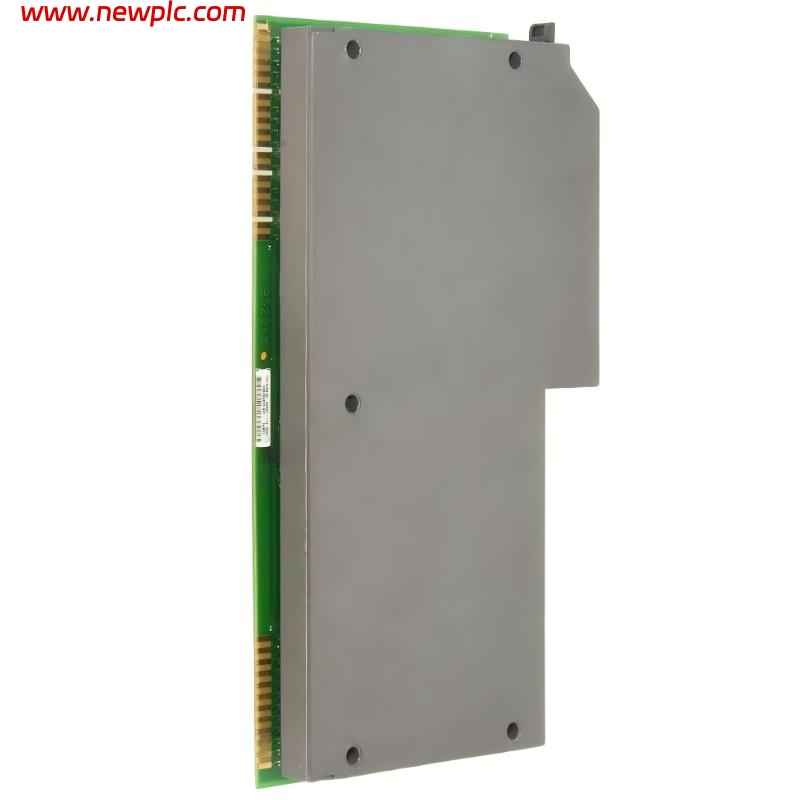

| Product Name | Allen-Bradley 1771-IXE Digital DC Input Module |
| Product Type | PLC High-Density DC Input Module |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Series | PLC-5 (1771 Series) |
| Number of Inputs | 32 Points |
| Input Voltage Range | 10–30 V DC |
| Input Type | High-speed DC digital input |
| Input Current | Approx. 4–12 mA per point (depending on voltage) |
| Input Delay | ~0.5–1 ms (high-speed response) |
| Backplane Current | 350 mA @ 5 V DC |
| Power Dissipation | Up to 10 W |
| Wiring Arm | 1771-WN |
| Mounting Type | Installed in 1771 I/O chassis |
| Operating Temperature | 0°C to 60°C |
| Dimensions (L × W × H) | 178 mm × 51 mm × 279 mm |
| Weight | 0.5 kg (approx. 1.1 lbs) |
| Lifecycle Status | Discontinued (legacy PLC-5 system) |
FAQ
FAQ
Q1. What is the 1771-IXE used for?
It is used to receive high-speed 10–30 V DC digital signals from field devices into PLC-5 systems.
Q2. How many input channels does it provide?
It provides 32 digital input channels.
Q3. What voltage range does it support?
It supports 10–30 V DC input signals.
Q4. What is the main advantage of this module?
It offers high-speed response suitable for fast switching applications.
Q5. What PLC system is it compatible with?
It is designed for Allen-Bradley PLC-5 systems using the 1771 I/O chassis.
Q6. What is the response time?
Approximately 0.5–1 millisecond, depending on input conditions.
Q7. What are the physical dimensions?
Approximately 178 mm × 51 mm × 279 mm.
Q8. What is the weight of the module?
Approximately 0.5 kg (about 1.1 lbs).
