Technical Specifications
| Parameter | Specification |
|---|---|

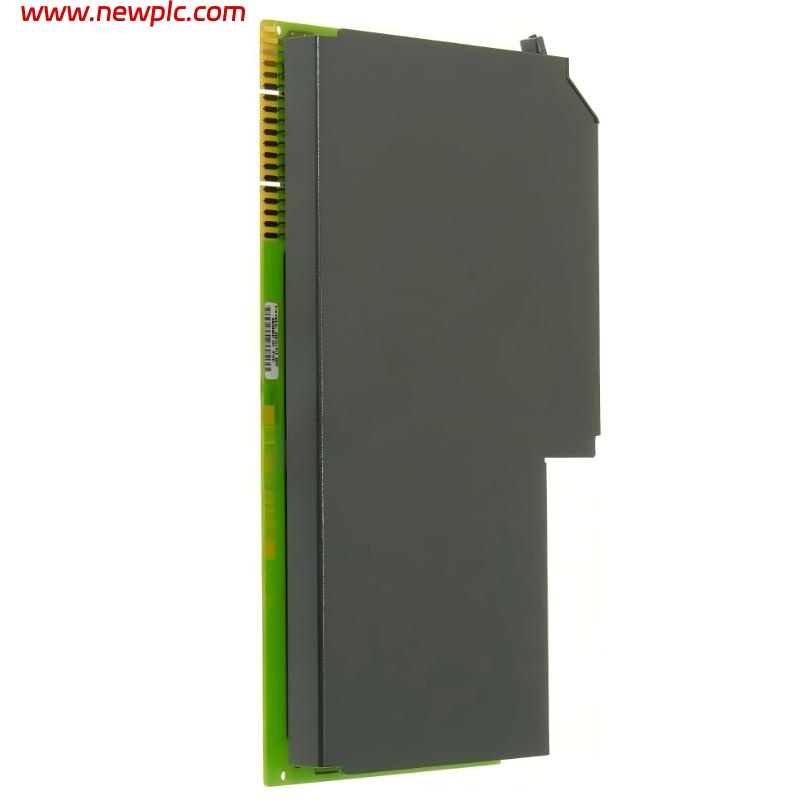

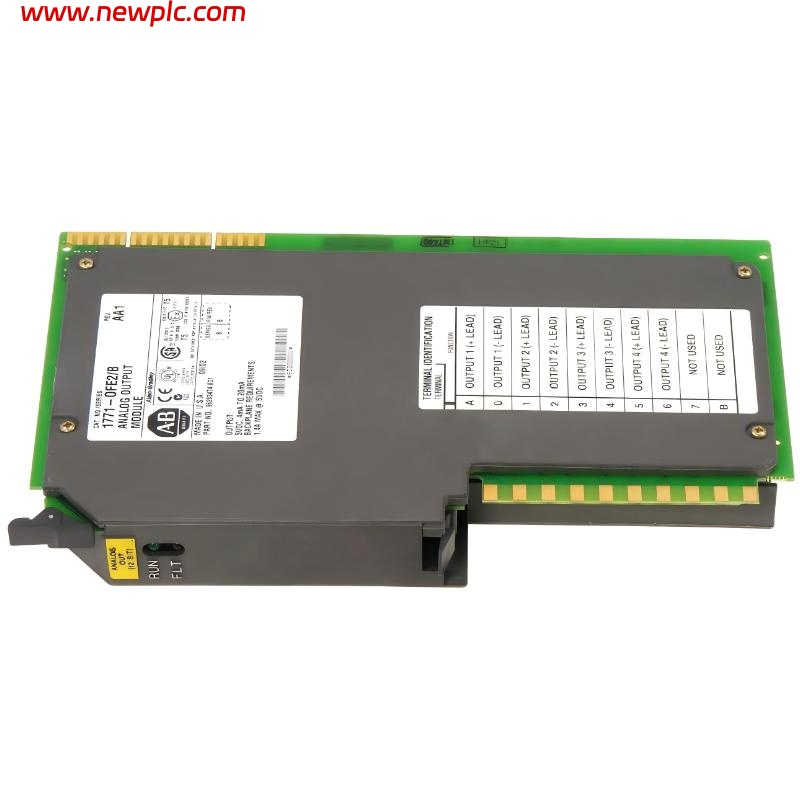

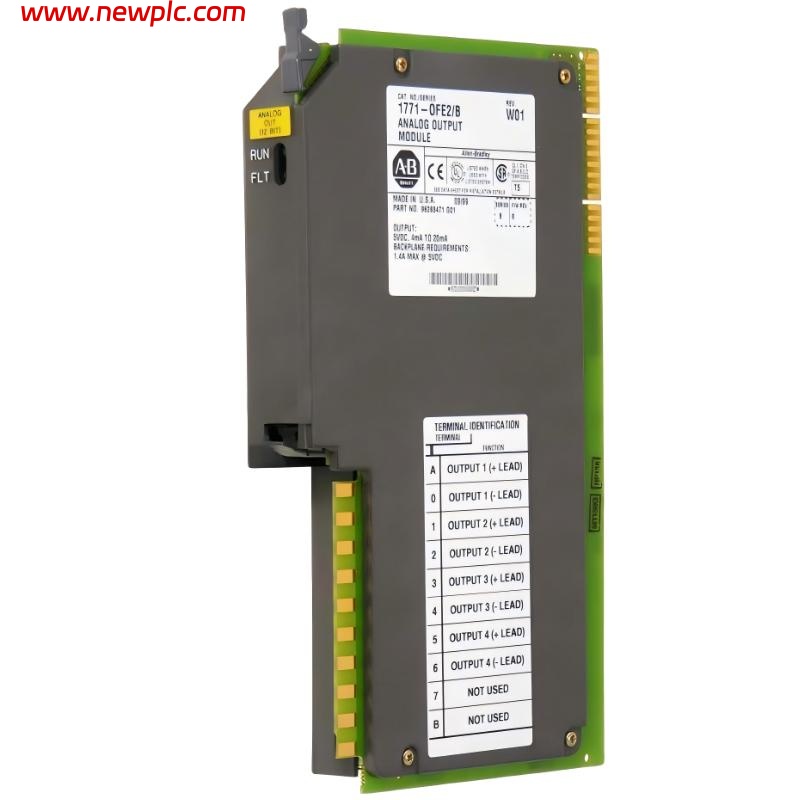

| Product Name | Allen-Bradley 1771-OFE2 Analog Output Module |
| Product Type | PLC Analog Output Module |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Series | PLC-5 (1771 Series) |
| Number of Outputs | 4 Analog Output Channels |
| Output Signal Types | Voltage / Current |
| Voltage Output Range | 0–10 V DC |
| Current Output Range | 4–20 mA DC |
| Resolution | 12-bit (typical) |
| Conversion Time | ~10 ms per channel |
| Accuracy | ±0.5% of full scale (typical) |
| Backplane Current | 1.0 A @ 5 V DC |
| Power Dissipation | Up to 6 W |
| Wiring Arm | 1771-WF |
| Mounting Type | Installed in 1771 I/O chassis |
| Operating Temperature | 0°C to 60°C |
| Dimensions (L × W × H) | 152 mm × 102 mm × 279 mm |
| Weight | 0.9 kg (approx. 2.0 lbs) |
| Lifecycle Status | Discontinued (legacy PLC-5 system) |
FAQ
FAQ
Q1. What is the 1771-OFE2 used for?
It is used to output analog control signals such as voltage or current from a PLC to field devices.
Q2. How many output channels does it provide?
It provides 4 analog output channels.
Q3. What signal types does it support?
It supports 0–10 V DC and 4–20 mA DC outputs.
Q4. What is the difference between OFE1 and OFE2?
The OFE2 is a later revision with improved performance and stability while maintaining similar functionality.
Q5. What PLC system is it compatible with?
It is designed for Allen-Bradley PLC-5 systems using the 1771 I/O chassis.
Q6. What is the conversion speed?
Approximately 10 ms per channel.
Q7. What are the physical dimensions?
Approximately 152 mm × 102 mm × 279 mm.
Q8. What is the weight of the module?
Approximately 0.9 kg (about 2.0 lbs).
