Technical Specifications
| Parameter | Specification |
|---|---|

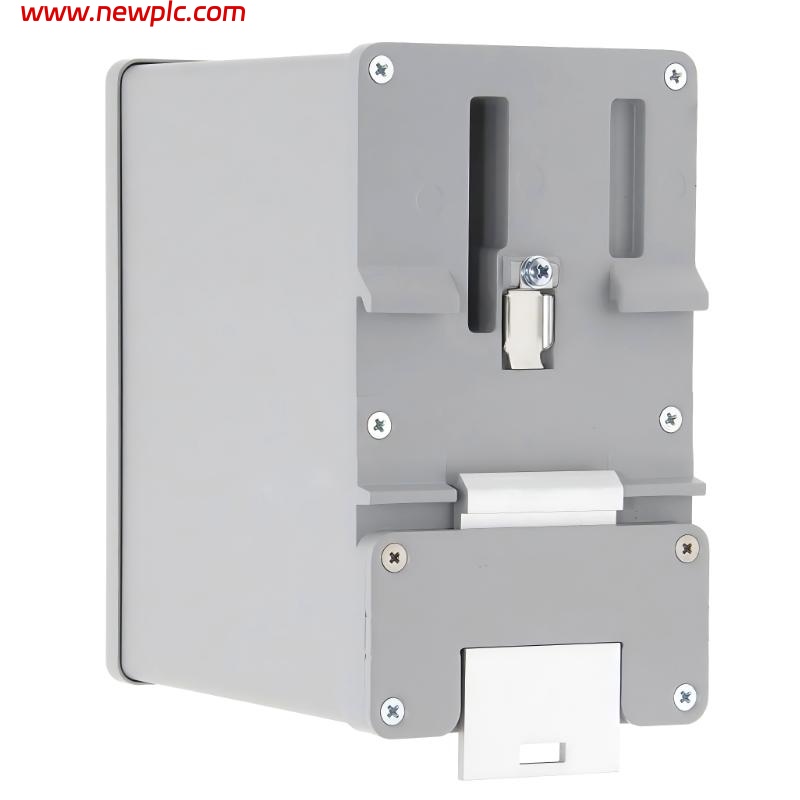

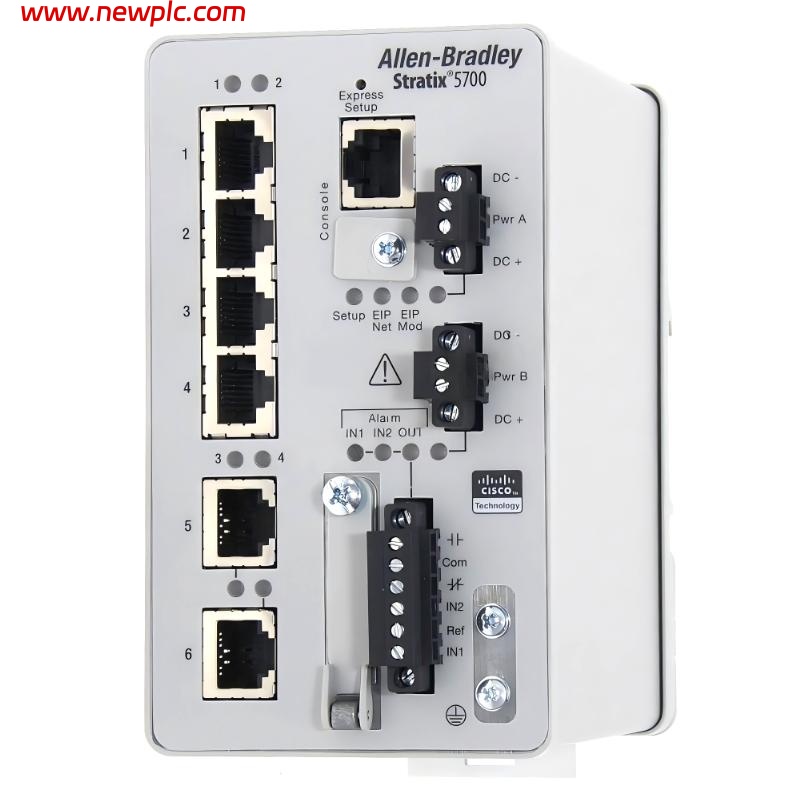

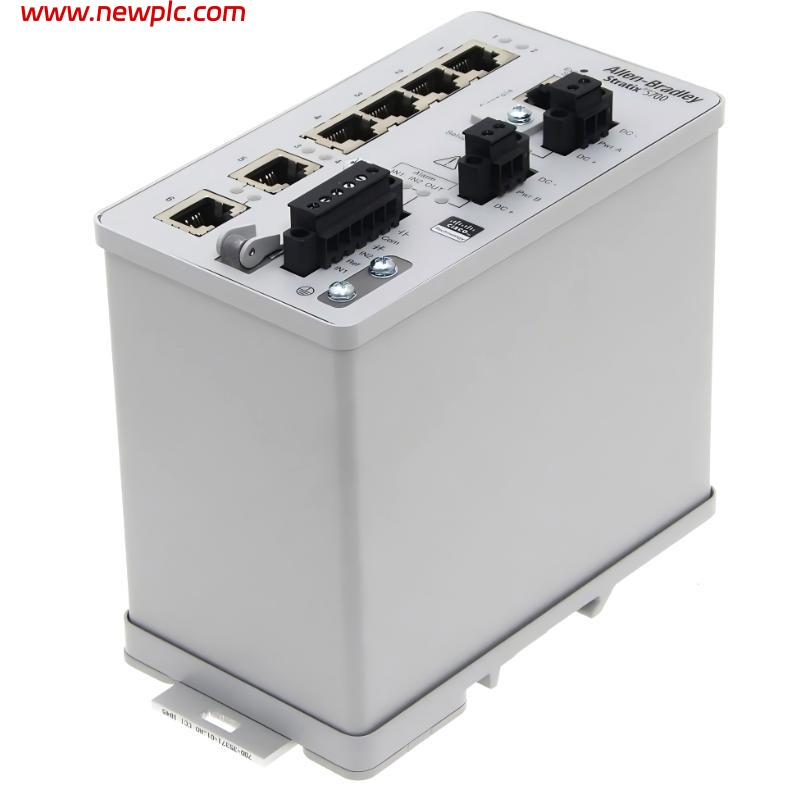

| Product Name | Allen-Bradley 1783-BMS06TL Stratix 5700 Managed Ethernet Switch |
| Product Type | Industrial Managed Ethernet Switch |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Series | Stratix 5700 |
| Number of Ports | 6 × 10/100 Mbps RJ45 |
| Port Type | Copper Ethernet |
| Network Layer | Layer 2 (managed switch) |
| Management | Yes (web-based / SNMP support) |
| Power Supply | 12–48 V DC external |
| Power Consumption | Max ~15 W |
| Mounting Type | DIN rail |
| Enclosure Rating | IP30 |
| Operating Temperature | -40°C to 60°C |
| Firmware Type | Lite version |
| Alarm Output | Relay alarm support (fault indication) |
| VLAN Support | Yes (IEEE 802.1Q) |
| Dimensions (H × W × D) | 129.5 mm × 74.8 mm × 116.7 mm |
| Weight | 1.11 kg |
FAQ
FAQ
Q1. What is the 1783-BMS06TL used for?
It is used for industrial Ethernet communication, connecting PLCs, drives, and other automation devices in a network.
Q2. How many ports does it have?
It provides 6 Fast Ethernet (10/100 Mbps) RJ45 ports.
Q3. Is it a managed switch?
Yes, it is a fully managed Layer 2 industrial switch.
Q4. What is the power requirement?
It operates on a 12–48 V DC power supply.
Q5. What is the operating temperature range?
It supports operation from -40°C to 60°C.
Q6. How is it mounted?
It is designed for DIN rail mounting in control cabinets.
Q7. What is the enclosure rating?
It has an IP30-rated open-style industrial housing.
Q8. What is the weight and size?
It is approximately 129.5 × 74.8 × 116.7 mm and weighs about 1.11 kg.
