Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | Stratix 5700 |

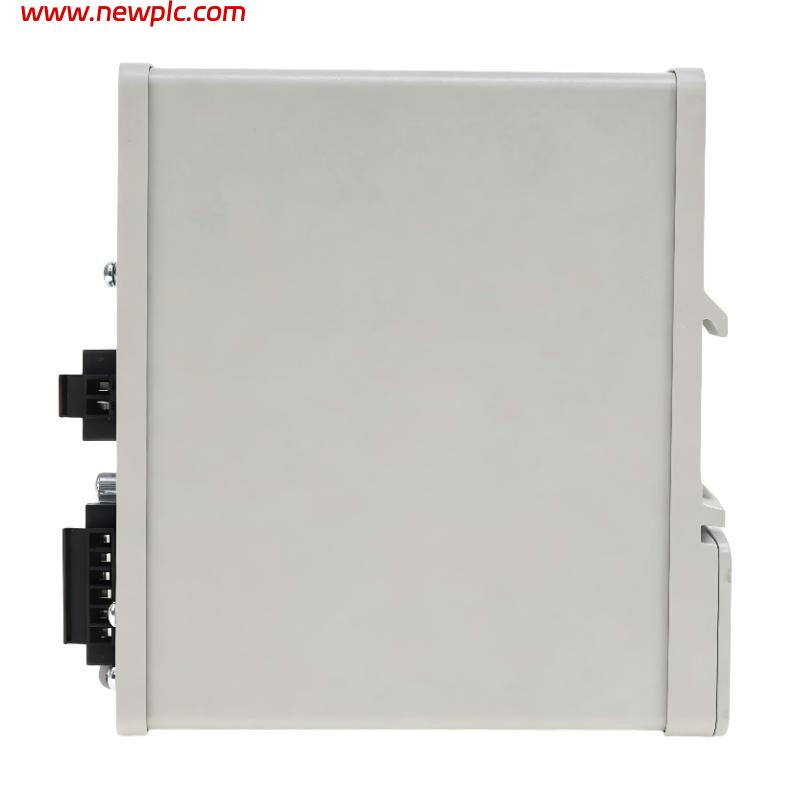

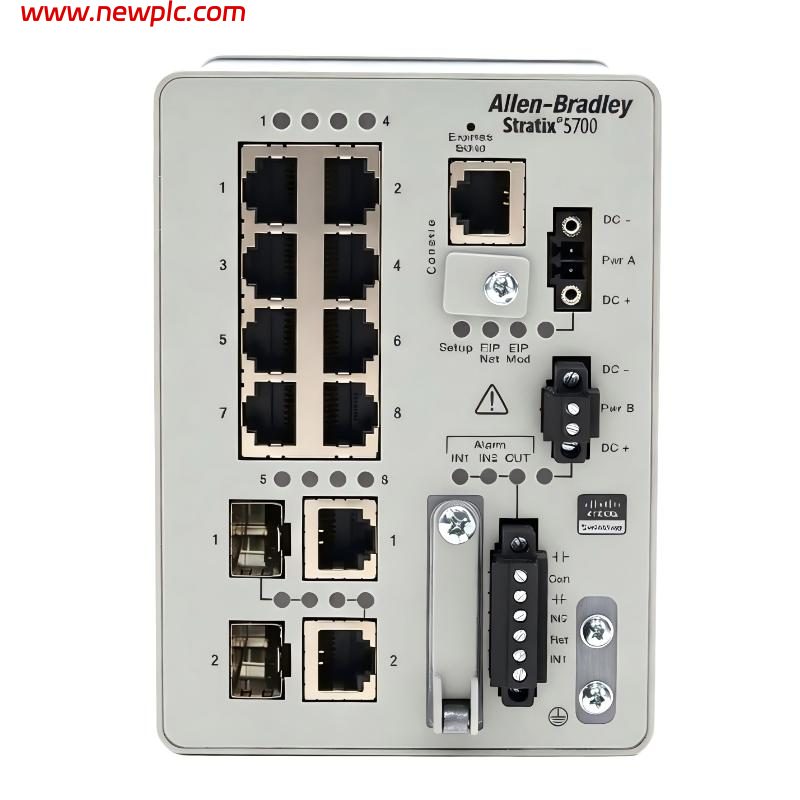

| Model Number | 1783-BMS10CGL |
| Product Type | Managed Industrial Ethernet Switch |
| Total Ports | 10 Ports |
| RJ45 Ports | 8 x 10/100 Mbps Fast Ethernet Ports |
| Combo Ports | 2 x RJ45/SFP Gigabit Combo Ports |
| Ethernet Standards | IEEE 802.3, 802.3u, 802.3ab |
| Switch Type | Managed Ethernet Switch |
| Firmware Type | Lite Firmware |
| Communication Speed | 10/100/1000 Mbps |
| Power Input Range | 12 to 48V DC |
| Maximum Power Consumption | 17 W |
| Power Consumption @ 24V DC | Approx. 12.5 W |
| Isolation Voltage | 50V Continuous |
| Alarm Relay Rating | 1 A at 30V DC / 0.5 A at 48V DC |
| MAC Address Capacity | 1K MAC Addresses |

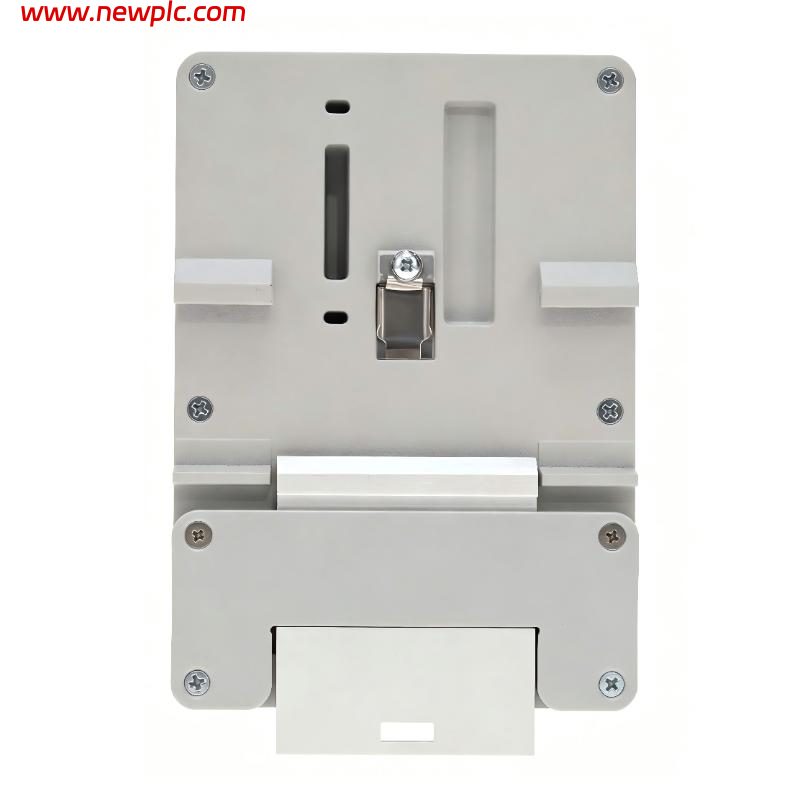

| Mounting Type | DIN Rail Mount |
| Enclosure Type | Open Style Industrial Housing |
| Protection Rating | IP30 |
| Operating Temperature | -40°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Shock Resistance | 30 G Operating |
| Vibration Resistance | 2 G at 10 to 500 Hz |
| Dimensions | Approx. 129.5 x 91.4 x 116.7 mm |
| Weight | Approx. 1.25 kg |
| Certifications | UL, CE, CSA, C-Tick, KC |
| Lifecycle Status | Discontinued |
| Replacement Model | 1783-CMS10B |
| Typical Applications | Industrial Ethernet Networks, PLC Communication, Factory Automation |
FAQ
FAQ
Q1: What is the Allen-Bradley 1783-BMS10CGL used for?
A1: The 1783-BMS10CGL is a Stratix 5700 managed industrial Ethernet switch used for connecting PLCs, HMIs, drives, and industrial automation devices in Ethernet networks.
Q2: How many ports does the 1783-BMS10CGL provide?
A2: The switch includes 10 total ports, consisting of 8 Fast Ethernet RJ45 ports and 2 Gigabit combo RJ45/SFP ports.
Q3: Is the 1783-BMS10CGL a managed or unmanaged switch?
A3: The 1783-BMS10CGL is a managed Ethernet switch designed for industrial networking applications that require diagnostics, monitoring, and advanced configuration features.
Q4: What firmware is included with the 1783-BMS10CGL?
A4: The switch uses Lite firmware, which provides essential industrial Ethernet management features for automation systems.
Q5: What power supply does the 1783-BMS10CGL require?
A5: The switch operates on a 12 to 48V DC power supply and supports dual power input connections for improved reliability.
Q6: Can the 1783-BMS10CGL be mounted on a DIN rail?
A6: Yes. The switch is designed for DIN rail mounting inside industrial control cabinets and automation panels.
Q7: Is the 1783-BMS10CGL suitable for industrial environments?
A7: Yes. The switch features an industrial-grade IP30 enclosure and supports operating temperatures from -40°C to 60°C for demanding environments.
Q8: Is the 1783-BMS10CGL still available from Rockwell Automation?
A8: No. Rockwell Automation has discontinued the 1783-BMS10CGL, and the recommended replacement model is the 1783-CMS10B.
