Technical Specifications
| Parameter | Specification |
|---|---|

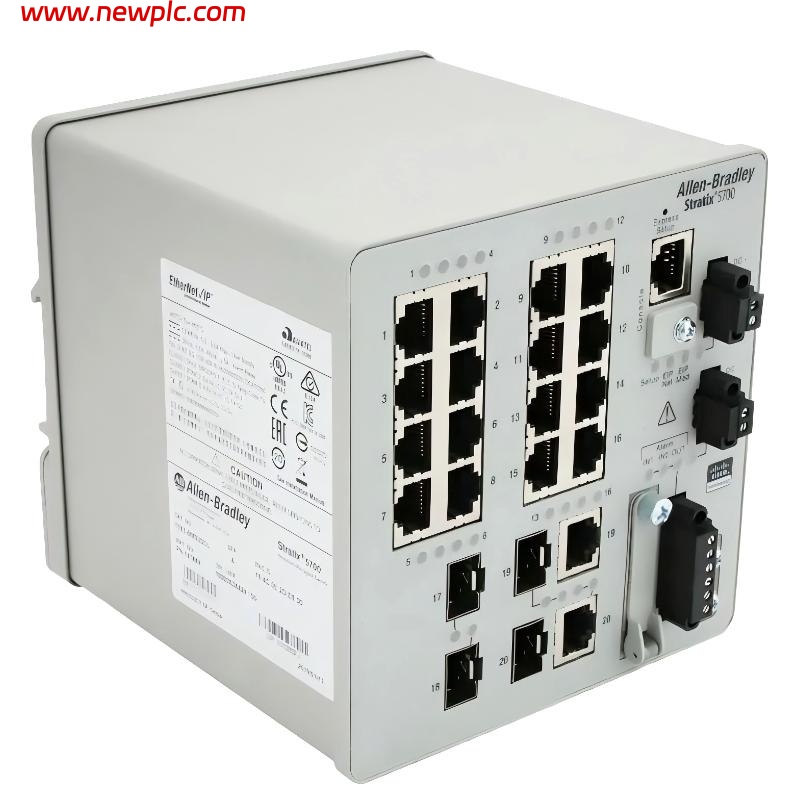

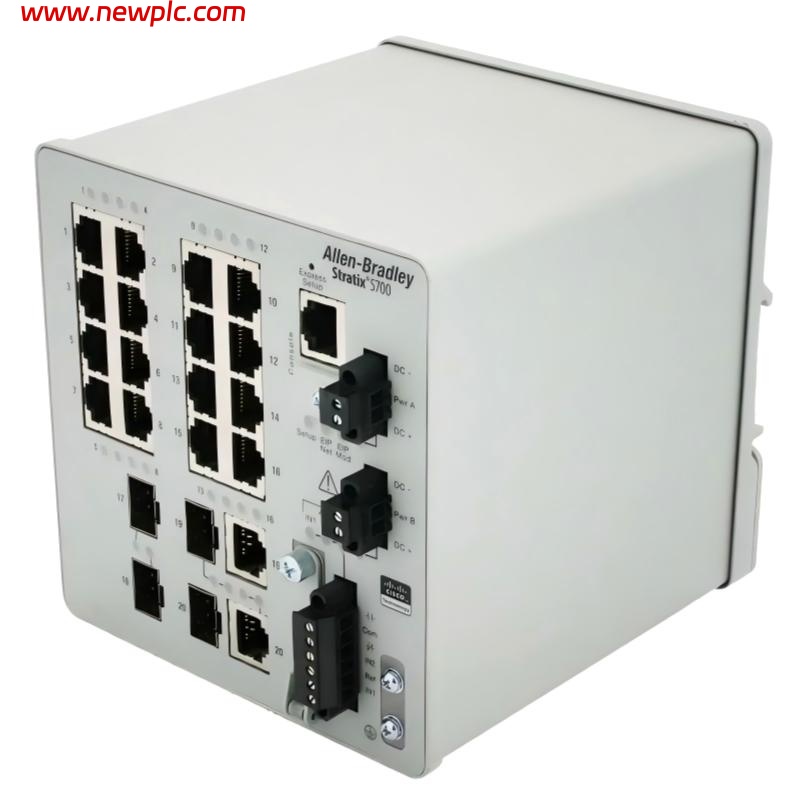

| Product Name | Allen-Bradley 1783-BMS20CL Stratix 5700 Managed Ethernet Switch |
| Product Type | Industrial Managed Ethernet Switch |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Series | Stratix 5700 |
| Total Ports | 20 ports |
| Copper Ports | 16 × 10/100 Mbps RJ45 |
| Combo Ports | 2 × 10/100/1000 Mbps RJ45/SFP |
| SFP Ports | 2 × SFP slots |
| Network Layer | Layer 2 Managed Switch |
| Management | Web interface, SNMP, CLI |
| Industrial Protocols | EtherNet/IP, DLR (Device Level Ring), VLAN support |
| Power Supply | 12–48 V DC external input |
| Power Consumption | ~21–30 W |
| Redundancy | DLR ring topology support |
| Alarm Output | Relay contact output for fault indication |
| Mounting Type | DIN rail |
| Enclosure Rating | IP30 |
| Operating Temperature | -40°C to +60°C |
| Firmware Type | Lite / managed Stratix firmware |
| Dimensions (H × W × D) | 129.5 mm × 127 mm × 135.8 mm |
| Weight | 2.04 kg (approx. 4.5 lbs) |
FAQ
FAQ
Q1. What is the 1783-BMS20CL used for?
It is used as an industrial Ethernet switch for connecting and managing automation devices such as PLCs, drives, and HMIs in industrial networks.
Q2. How many ports does it have?
It provides 20 total ports: 16 Fast Ethernet copper ports, 2 Gigabit combo ports, and 2 SFP fiber slots.
Q3. Is it a managed switch?
Yes, it is a fully managed Layer 2 industrial switch from the Stratix 5700 series.
Q4. What communication features does it support?
It supports EtherNet/IP, VLAN segmentation, and Device Level Ring (DLR) for network redundancy.
Q5. What is the power requirement?
It operates on a 12–48 V DC external power supply.
Q6. What is the operating temperature range?
It supports industrial environments from -40°C to +60°C.

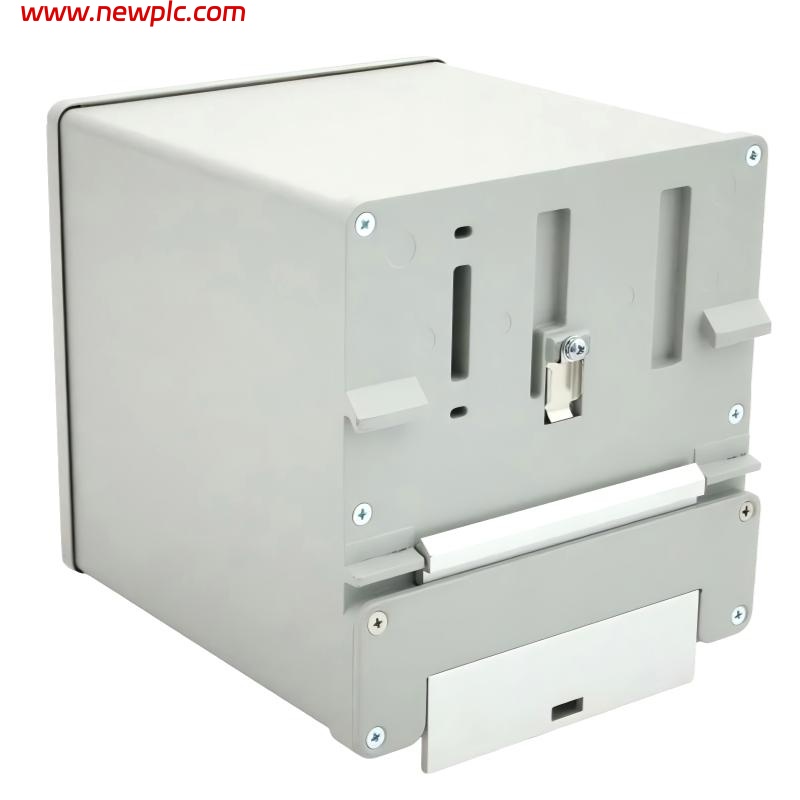

Q7. How is it mounted?
It is designed for DIN rail installation inside control cabinets.
Q8. What is its weight and size?
Approximately 129.5 × 127 × 135.8 mm and about 2.04 kg (4.5 lbs).
