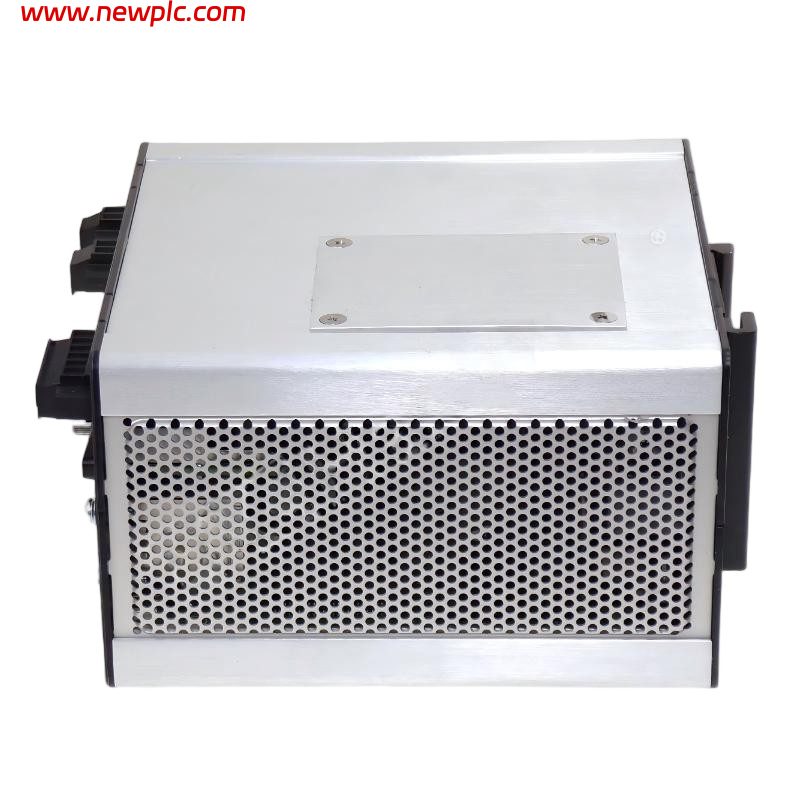

Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | Stratix 5200 |

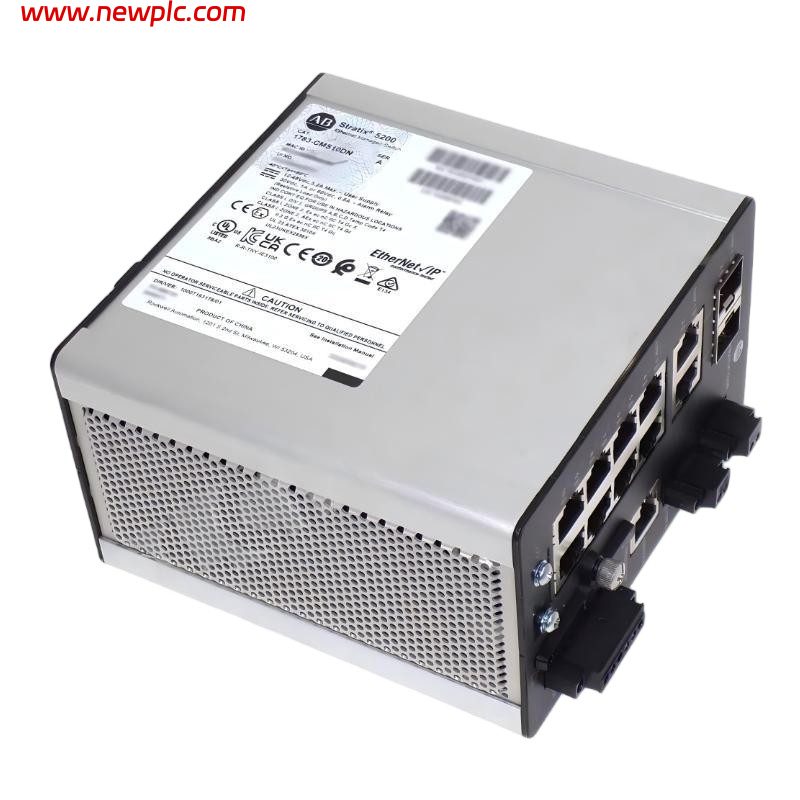

| Model Number | 1783-CMS10DN |
| Product Type | Managed Industrial Ethernet Switch |
| Total Ports | 10 Ports |
| Copper Ports | 8 x 10/100/1000 Mbps RJ45 Ports |
| Combo Ports | 2 x RJ45/SFP Gigabit Combo Ports |
| Switch Type | Managed Layer 2 Ethernet Switch |
| Firmware Type | Full Firmware |
| Communication Speed | 10/100/1000 Mbps |
| Supported Protocols | EtherNet/IP, DLR, PRP, NAT, CIP Sync |
| Ethernet Standards | IEEE 802.3, 802.3u, IEEE 802.3ab |
| Precision Time Protocol | IEEE 1588 |
| Power Input Range | 12 to 60V DC |
| Redundant Power Inputs | Yes |
| Power Consumption | Approx. 20 W Maximum |
| MAC Address Capacity | 16K MAC Addresses |
| Mounting Type | DIN Rail Mount |
| Enclosure Type | Industrial Metal Housing |
| Protection Rating | IP30 |
| Operating Temperature | -40°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Shock Resistance | 30 G Operating |
| Vibration Resistance | 2 G at 10 to 500 Hz |
| Dimensions | Approx. 150 x 50 x 135 mm |
| Weight | Approx. 1.3 – 1.5 kg |
| Certifications | UL, CE, ATEX, IECEx, KC, UKCA |
| Lifecycle Status | Active |
| Typical Applications | Industrial Ethernet Networks, PLC Communication, Factory Automation, Process Control |
FAQ
FAQ
Q1: What is the Allen-Bradley 1783-CMS10DN used for?
A1: The 1783-CMS10DN is a Stratix 5200 managed industrial Ethernet switch designed for connecting PLCs, HMIs, drives, and other industrial Ethernet devices in automation networks.
Q2: How many ports does the 1783-CMS10DN provide?
A2: The switch includes 10 total ports, consisting of 8 Gigabit copper RJ45 ports and 2 Gigabit combo RJ45/SFP ports.
Q3: Does the 1783-CMS10DN support industrial redundancy protocols?
A3: Yes. The switch supports Device Level Ring (DLR), Parallel Redundancy Protocol (PRP), and Network Address Translation (NAT) for high network reliability and flexible industrial communication.
Q4: What communication speeds are supported by the 1783-CMS10DN?
A4: The switch supports 10/100/1000 Mbps Ethernet communication with auto-negotiation capability on supported ports.
Q5: What power supply does the 1783-CMS10DN require?
A5: The switch operates using a 12 to 60V DC power supply and supports redundant power input connections for improved system reliability.

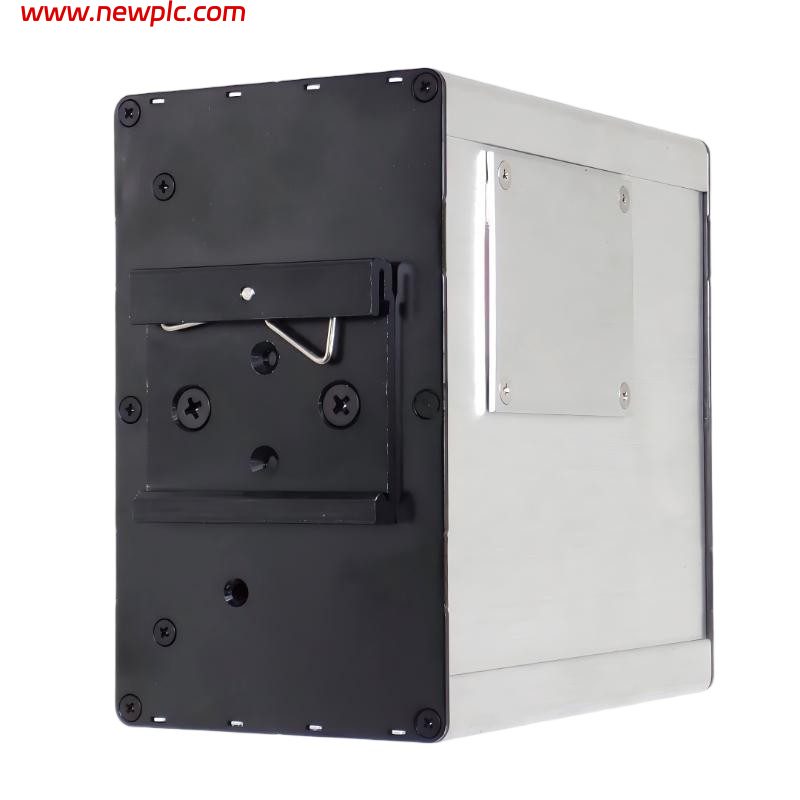

Q6: Can the 1783-CMS10DN be mounted on a DIN rail?
A6: Yes. The switch is designed for DIN rail mounting inside industrial automation cabinets and control panels.
Q7: Is the 1783-CMS10DN suitable for harsh industrial environments?
A7: Yes. The switch features an IP30-rated industrial enclosure and supports operating temperatures from -40°C to 60°C.
Q8: Is the 1783-CMS10DN an active Rockwell Automation product?
A8: Yes. The 1783-CMS10DN currently remains in active lifecycle status and is recommended as a replacement for several discontinued Stratix 5700 models.
