Technical Specifications
| Parameter | Description |
|---|---|

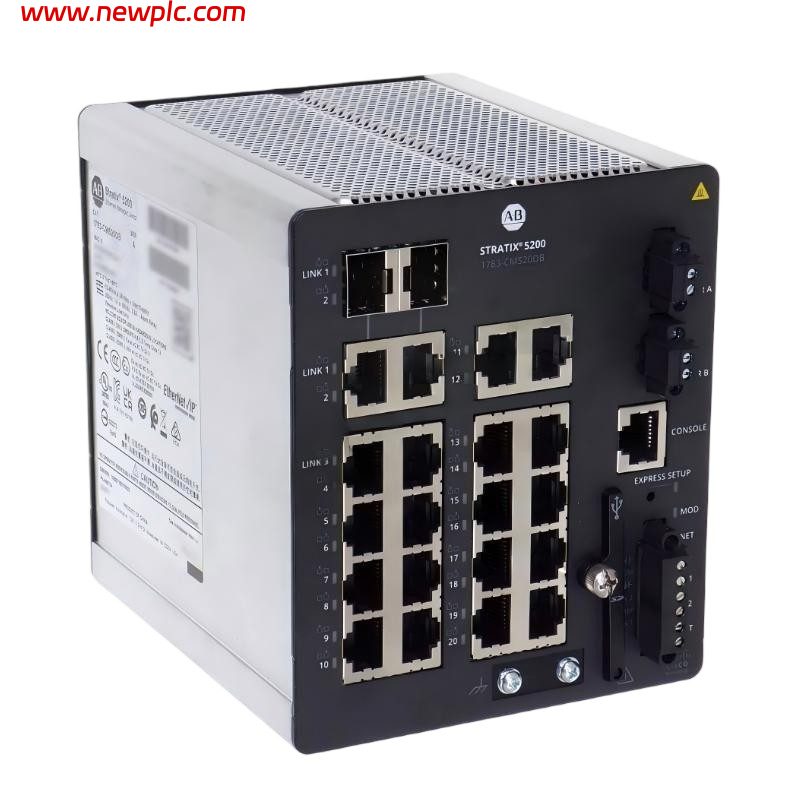

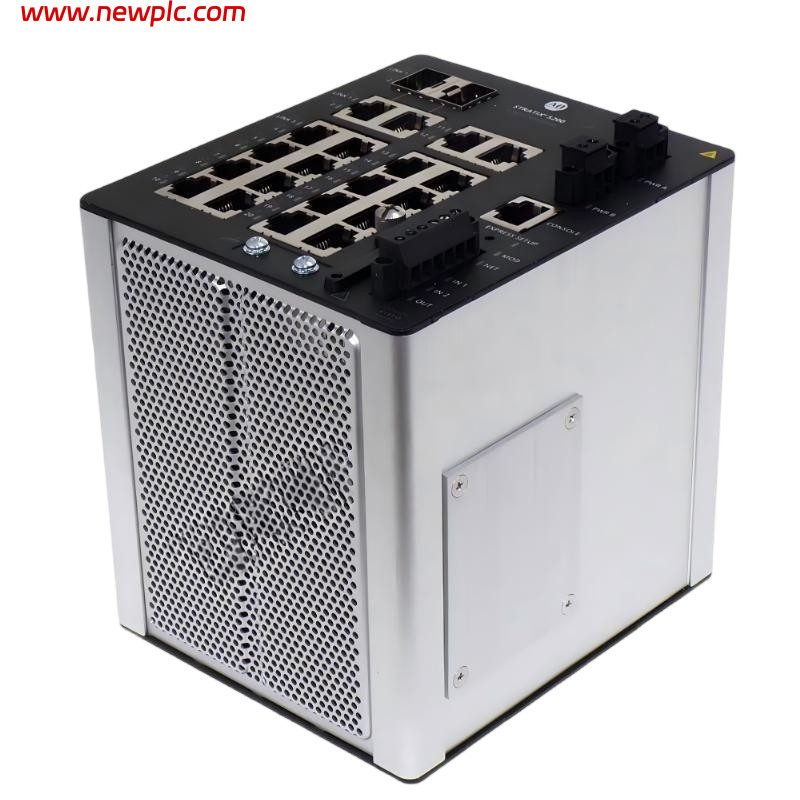

| Product Model | Allen-Bradley 1783-CMS20DB |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Product Series | Stratix™ 5200 |
| Product Type | Managed Industrial Ethernet Switch |
| Function | Provides secure industrial Ethernet connectivity, network management, diagnostics, and Device Level Ring (DLR) support for industrial automation systems |
| Application | PLC networks, EtherNet/IP communication, SCADA systems, manufacturing automation, and industrial control cabinets |
| Switch Type | Layer 2 Managed Ethernet Switch |
| Firmware | Base Firmware |
| Total Number of Ports | 20 |
| Copper Ports | 18 × 10/100 Mbps RJ45 Ethernet ports |
| Combo Ports | 2 × 10/100/1000 Mbps RJ45/SFP Combo Gigabit ports |
| Fiber Support | SFP transceivers supported through combo ports |
| Network Protocols | EtherNet/IP, DLR (Device Level Ring), VLAN, QoS, IGMP Snooping, SNMP |
| Power Supply | 12–48 VDC |
| Maximum Input Current | 4.2 A |
| Alarm Relay | 30 VDC @ 1 A or 60 VDC @ 0.5 A |
| Mounting Type | DIN rail mounting |
| Enclosure Rating | IP30 |
| Operating Temperature | -40°C to +60°C |
| Housing Material | Industrial-grade metal enclosure |
| Configuration Interface | Web browser, CLI, SNMP, FactoryTalk tools |
| Lifecycle Status | Active |
| Country of Origin | China (manufacturing location may vary) |
| Dimensions | Approx. 160 × 140 × 120 mm |
| Weight | Approx. 2.10 kg |
FAQ
FAQ
Q1: What is the Allen-Bradley 1783-CMS20DB used for?
A: The 1783-CMS20DB is used to build managed industrial Ethernet networks that connect PLCs, HMIs, drives, remote I/O, and other EtherNet/IP devices while providing network diagnostics and redundancy.
Q2: How many Ethernet ports does the 1783-CMS20DB provide?
A: The switch offers 20 ports, including 18 × 10/100 Mbps RJ45 copper ports and 2 × 10/100/1000 Mbps RJ45/SFP combo Gigabit ports for flexible copper or fiber connectivity.
Q3: Does the 1783-CMS20DB support Device Level Ring (DLR)?
A: Yes. The switch includes integrated Device Level Ring (DLR) support, helping improve network availability by maintaining communication if a network path is interrupted.
Q4: What power supply is required for the 1783-CMS20DB?
A: The switch operates from a 12–48 VDC power source and supports redundant industrial power configurations for enhanced system reliability.

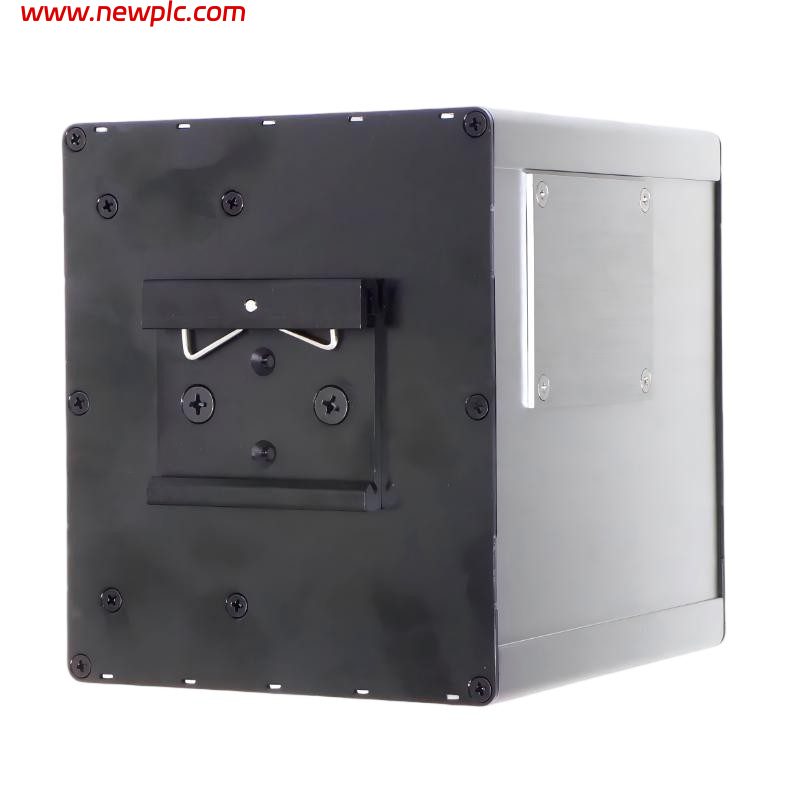

Q5: Can the 1783-CMS20DB be mounted on a DIN rail?
A: Yes. It is designed for DIN rail mounting, allowing fast installation inside industrial control panels and automation cabinets.
Q6: What are the dimensions and weight of the 1783-CMS20DB?
A: The approximate dimensions are 160 × 140 × 120 mm, and the approximate weight is 2.10 kg. Minor variations may occur depending on hardware revision and installed accessories.
Q7: Which communication protocols are supported by the 1783-CMS20DB?
A: The switch supports EtherNet/IP, DLR, VLAN, QoS, IGMP Snooping, SNMP, and other Layer 2 industrial networking features for efficient and reliable communication.
Q8: What should be checked before installing the 1783-CMS20DB?
A: Before installation, verify the DC input voltage, network design, grounding, Ethernet cable quality, SFP compatibility (if fiber is used), and environmental conditions. After installation, confirm port status, DLR operation, and communication with connected automation devices to ensure reliable network performance.
