Technical Specifications
| Parameter | Specification |
|---|---|

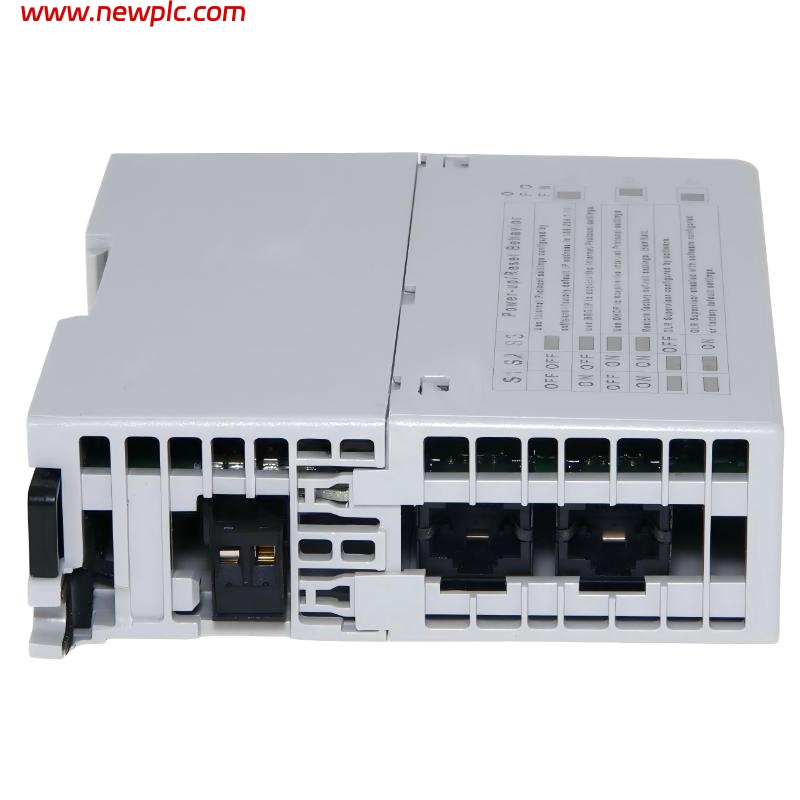

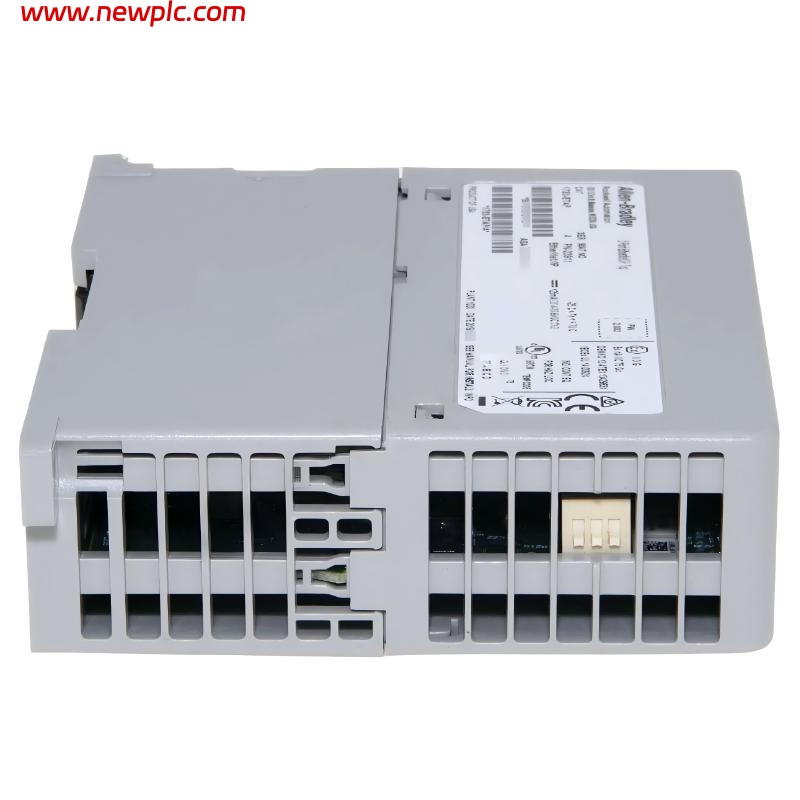

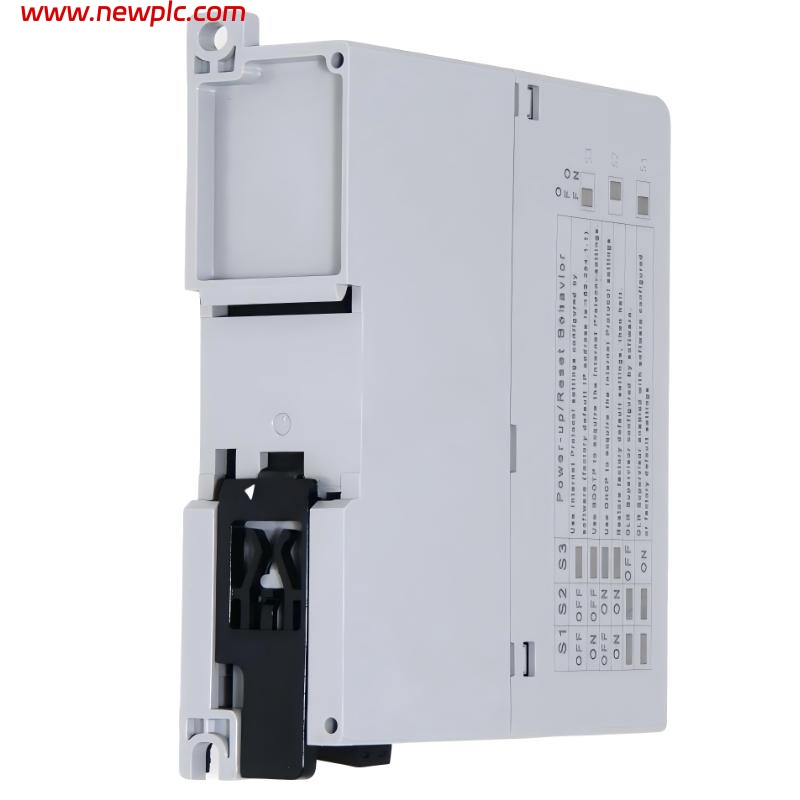

| Product Name | Allen-Bradley 1783-ETAP EtherNet/IP Tap Module |
| Product Type | Industrial Ethernet Tap / Embedded Switch |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Series | Stratix / Embedded Switch Technology |
| Function | Connects single-port devices to Device Level Ring (DLR) or linear Ethernet networks |
| Number of Ports | 3 × 10/100 Mbps RJ45 copper ports |
| Network Type | EtherNet/IP |
| Duplex Mode | Full / Half Duplex |
| Topology Support | Linear and Device Level Ring (DLR) |
| Power Supply | 24 V DC |
| Power Consumption | Low-power embedded device (typical industrial tap) |
| Mounting Type | DIN rail |
| Enclosure Rating | Industrial enclosure (IP30 typical) |
| Operating Temperature | 0°C to 60°C (industrial standard) |
| Dimensions (L × W × H) | 157 mm × 142 mm × 110 mm |
| Weight | 1.0 kg |
| Lifecycle Status | Active Mature (replacement available) |
FAQ
FAQ
Q1. What is the 1783-ETAP used for?
It is used to connect single-port Ethernet devices into a Device Level Ring (DLR) or linear industrial network.
Q2. How many ports does it have?
It has 3 Fast Ethernet (10/100 Mbps) RJ45 ports.
Q3. Does it function like a switch?
It acts as an embedded Ethernet tap, not a full managed switch.
Q4. What network topologies does it support?
It supports linear and ring (DLR) network configurations.
Q5. What is the power requirement?
It operates on a 24 V DC power supply.
Q6. Why is it used instead of a normal switch?
It allows single-port devices to participate in ring networks without needing dual Ethernet ports.
Q7. What are the physical dimensions?
Approximately 157 mm × 142 mm × 110 mm.
Q8. What is the weight of the module?
Approximately 1.0 kg.
