Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | Stratix 2000 |
| Model Number | 1783-US4T1F/B |

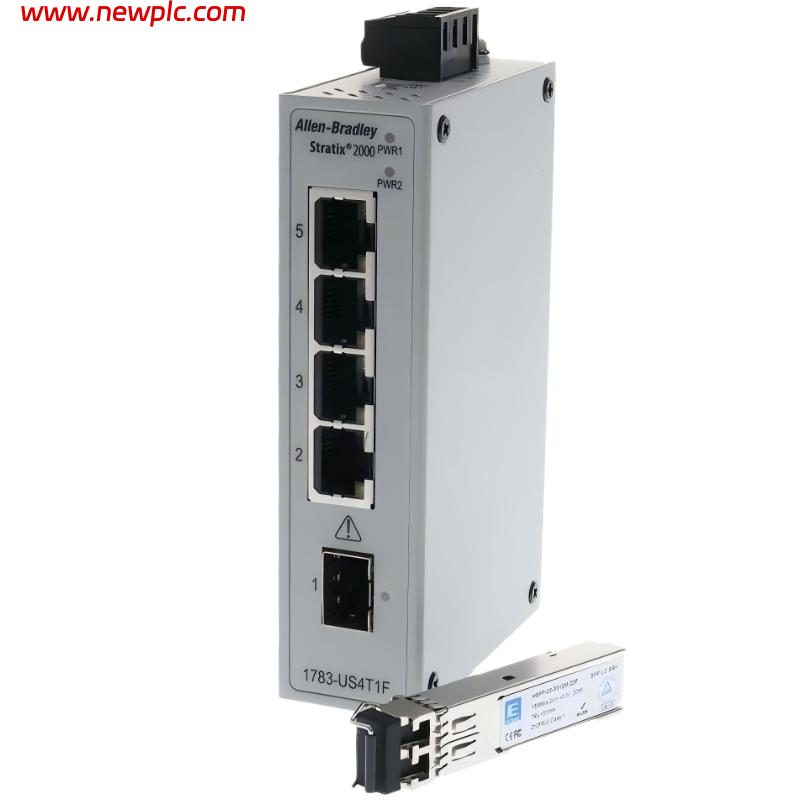

| Product Type | Unmanaged Industrial Ethernet Switch |
| Total Ports | 5 Ports |
| Copper Ports | 4 x 10/100 Mbps RJ45 Ports |
| Fiber Ports | 1 x 100Base-FX Fiber Port |
| Fiber Connector Type | SC Connector |
| Communication Speed | 10/100 Mbps |
| Ethernet Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Switching Method | Store-and-Forward |
| MAC Address Capacity | 1K MAC Addresses |
| Packet Buffer Memory | 448 KB |
| Power Input Range | 18 to 30V DC |

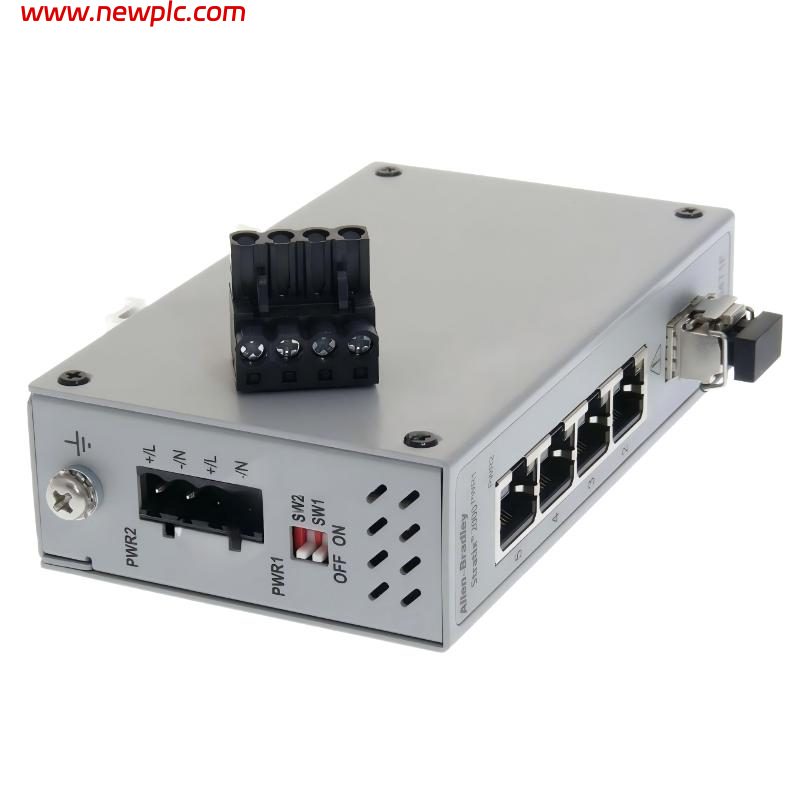

| Redundant Power Inputs | Yes |
| Power Consumption | Approx. 4 W |
| Current Consumption | Approx. 170 mA @ 24V DC |
| Isolation Voltage | 50V Continuous |
| Alarm Relay Output | Yes |
| Network Cabling | CAT5 or Better |
| Fiber Transmission Distance | Up to 2 km |

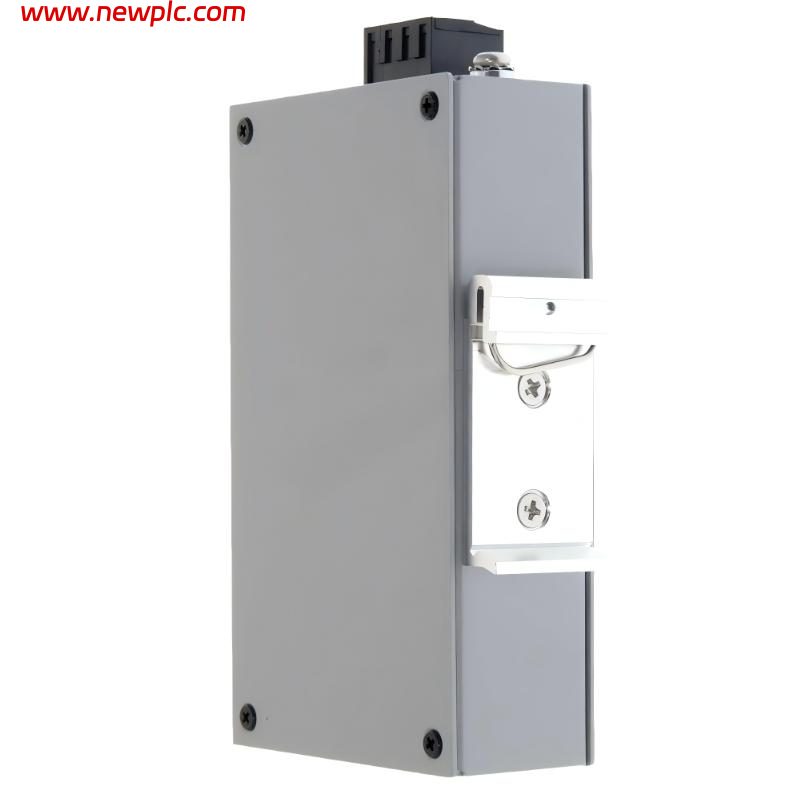

| Mounting Type | DIN Rail Mount |
| Enclosure Material | Industrial Metal Housing |
| Protection Rating | IP30 |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Shock Resistance | IEC 60068-2-27 |
| Vibration Resistance | IEC 60068-2-6 |
| Dimensions | Approx. 114 x 50 x 87 mm |
| Weight | Approx. 0.45 kg |
| Certifications | UL, CE, CSA, RoHS |
| Revision Series | Series B |
| Typical Applications | Industrial Ethernet Networking, Fiber Integration, PLC Communication |
FAQ
FAQ
Q1: What is the Allen-Bradley 1783-US4T1F/B used for?
A1: The 1783-US4T1F/B is an unmanaged industrial Ethernet switch used for connecting automation devices such as PLCs, HMIs, drives, and industrial PCs in Ethernet networks with fiber optic connectivity.
Q2: How many ports does the 1783-US4T1F/B provide?
A2: The switch includes 5 total ports: four RJ45 copper Ethernet ports and one fiber optic port.
Q3: What type of fiber connection does the 1783-US4T1F/B use?
A3: The switch includes one 100Base-FX fiber port with an SC fiber connector for long-distance industrial network communication.
Q4: What communication speed does the 1783-US4T1F/B support?
A4: The switch supports 10/100 Mbps Ethernet communication with automatic speed negotiation.
Q5: What power supply does the 1783-US4T1F/B require?
A5: The switch operates using an 18 to 30V DC power supply and supports redundant power input connections.
Q6: Can the 1783-US4T1F/B be mounted on a DIN rail?
A6: Yes. The switch is designed for DIN rail mounting inside industrial automation cabinets and control panels.
Q7: Is the 1783-US4T1F/B suitable for industrial environments?
A7: Yes. The switch features an industrial-grade IP30 metal enclosure and supports operation in harsh industrial conditions.
Q8: What are the common applications of the 1783-US4T1F/B?
A8: Common applications include industrial Ethernet networking, PLC communication, fiber optic network integration, machine automation, and factory control systems.
