Technical Specifications
| Parameter | Specification |
|---|---|

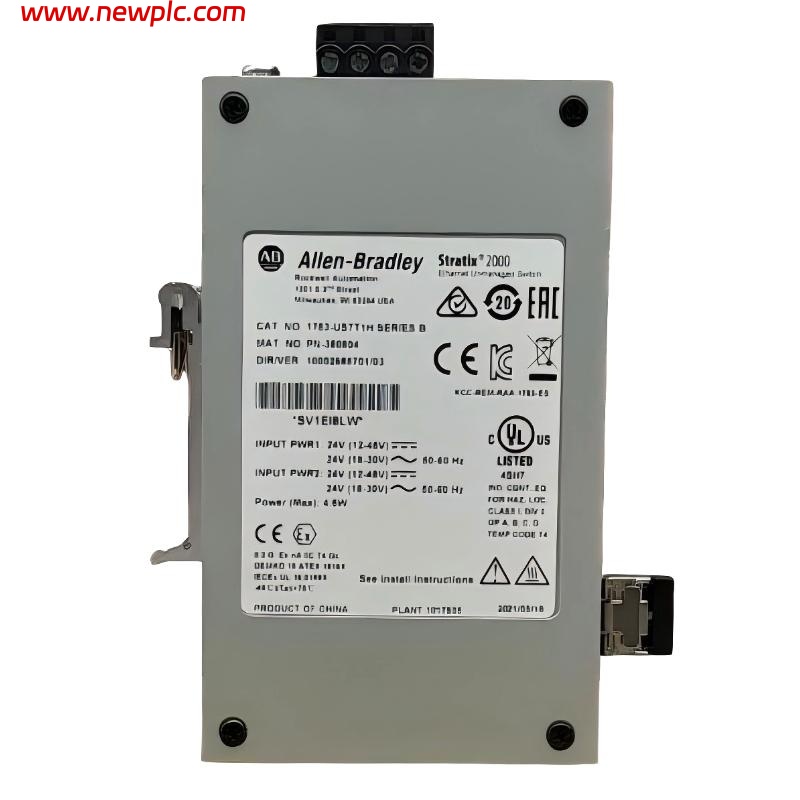

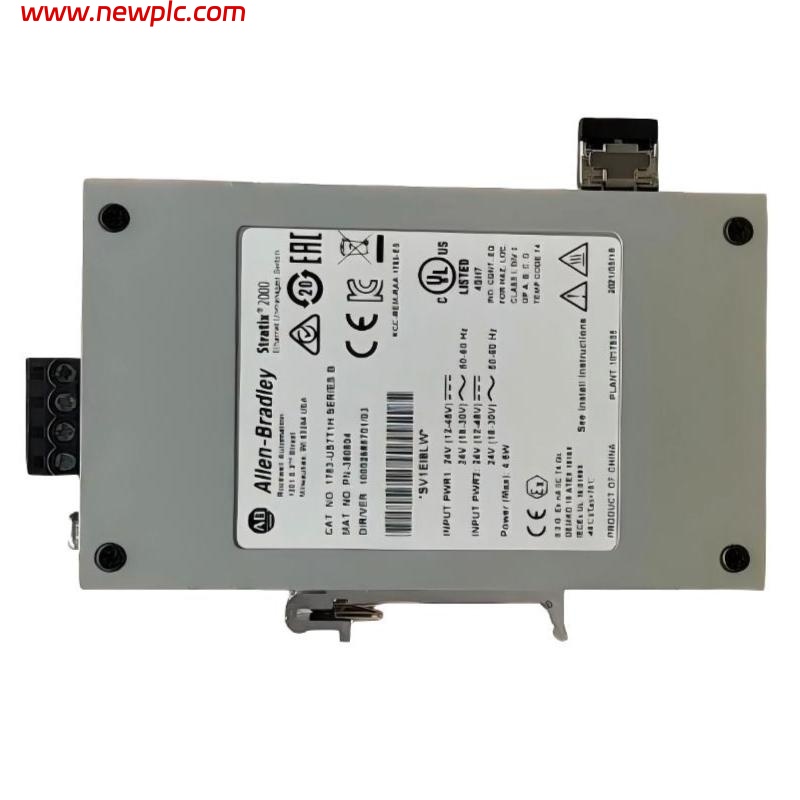

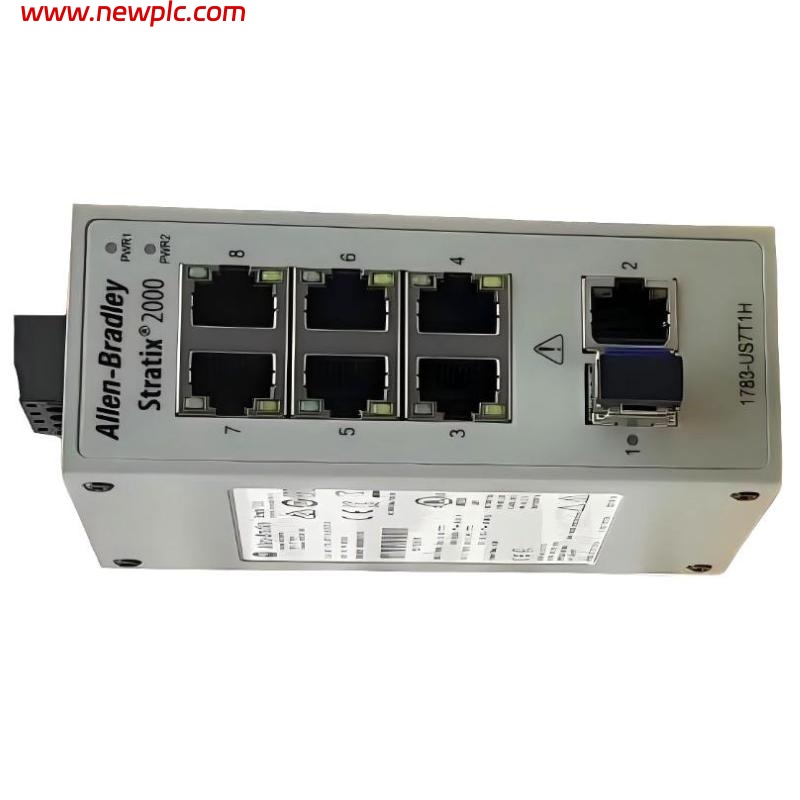

| Product Name | Allen-Bradley 1783-US7T1H Stratix 2000 Unmanaged Ethernet Switch |
| Product Type | Industrial Unmanaged Ethernet Switch |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Series | Stratix 2000 |
| Function | Provides basic Ethernet connectivity for industrial automation networks |
| Total Ports | 8 ports |
| Copper Ports | 7 × 10/100 Mbps RJ45 |
| Fiber Port | 1 × 100 Mbps single-mode fiber (LC connector, preinstalled) |
| Network Type | EtherNet/IP / Industrial Ethernet |
| Switch Type | Unmanaged (plug-and-play, no configuration required) |
| Power Supply | 12–48 V DC / 18–30 V AC |
| Power Consumption | ~4–5 W typical |
| Mounting Type | DIN rail |
| Enclosure Rating | IP20 |
| Operating Temperature | -40°C to +75°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (H × W × D) | Approx. 114.5 mm × 76.8 mm × 29.6 mm |
| Weight | ~0.7–1.3 kg (varies by revision) |
| Lifecycle Status | Discontinued (June 23, 2025) |
FAQ
FAQ
Q1. What is the 1783-US7T1H used for?
It is used to provide simple Ethernet connectivity in industrial control systems such as PLC, HMI, and drive networks.
Q2. How many ports does it have?
It has 8 total ports: 7 copper Fast Ethernet ports and 1 fiber optic port.
Q3. Is it a managed switch?
No, it is an unmanaged switch with plug-and-play operation.
Q4. What type of fiber does it use?
It uses a single-mode 100 Mbps fiber port with an LC connector.
Q5. What is the power requirement?
It supports 12–48 V DC or 18–30 V AC industrial power input.
Q6. What is the operating temperature range?
It operates from -40°C to +75°C, suitable for harsh industrial environments.
Q7. What are its physical dimensions?
Approximately 114.5 mm × 76.8 mm × 29.6 mm.
Q8. What is its status?
It is discontinued as of June 23, 2025, with replacement available in newer Stratix series.
