Technical Specifications
| Parameter | Details |
|---|---|

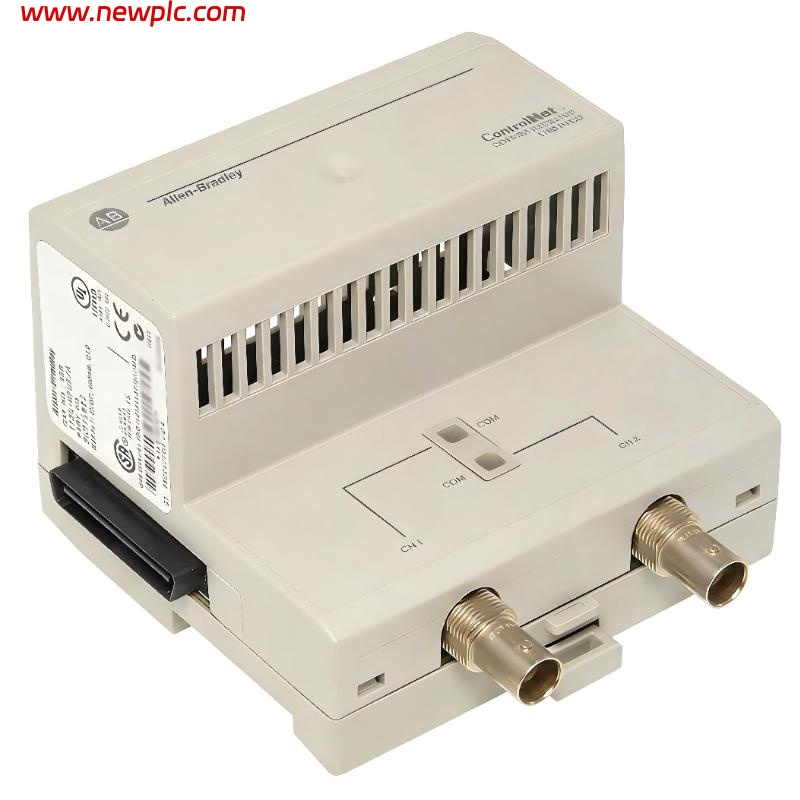

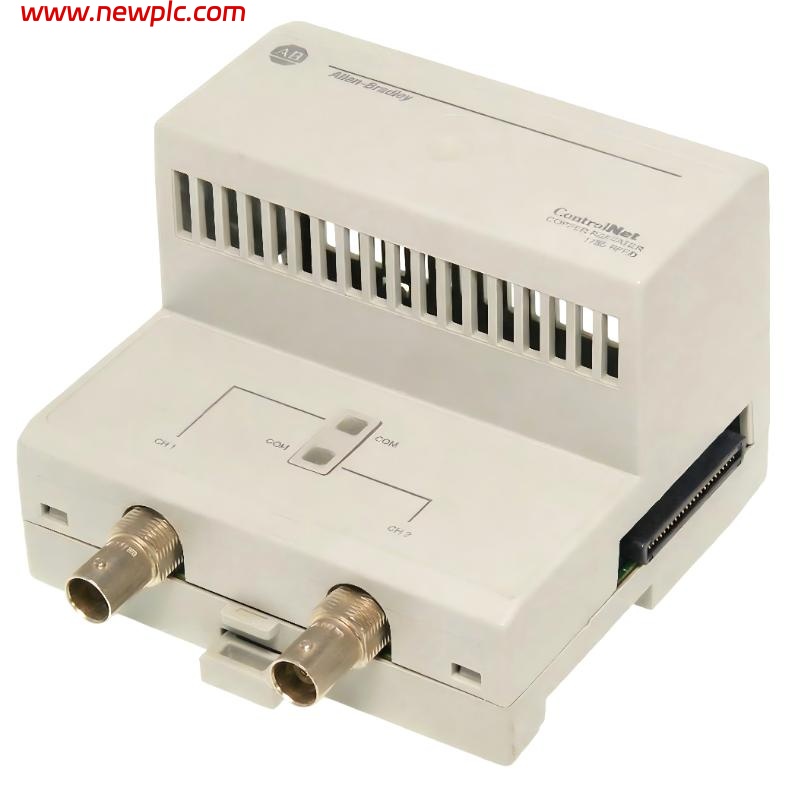

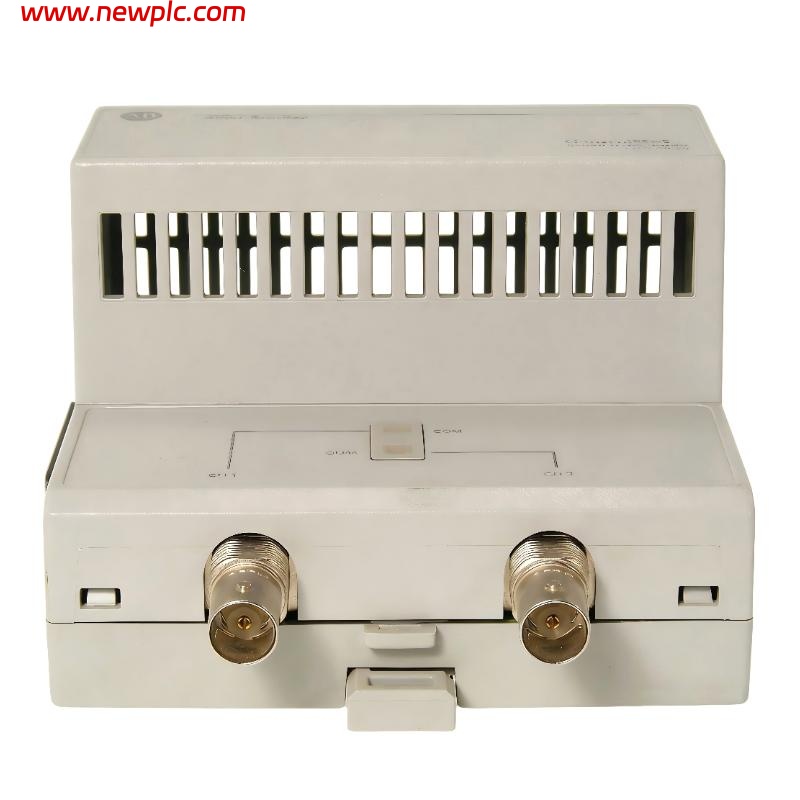

| Product Name | Allen-Bradley 1786-RPCD |
| Manufacturer | Rockwell Automation (Allen-Bradley) |
| Series | ControlNet Coaxial Repeater System |
| Product Type | Dual Copper Coaxial Repeater Module |
| Network Type | ControlNet industrial communication network |
| Function | Signal regeneration and extension for ControlNet coaxial segments |
| Compatible Adapter | 1786-RPA / 1786-RPA/B repeater adapter |
| Number of Channels | 2 coaxial channels |
| Cable Type | RG-6 coaxial (75 Ω ControlNet media) |
| Supported Topologies | Linear, Star, Redundant |
| Maximum Modules per Adapter | Up to 4 modules per 1786-RPA/B |
| Input Power | 5 VDC (supplied via repeater adapter) |
| Backplane Current Draw | 400 mA @ 5 VDC |
| Power Consumption | 2 W max |
| Power Dissipation | 2 W max |

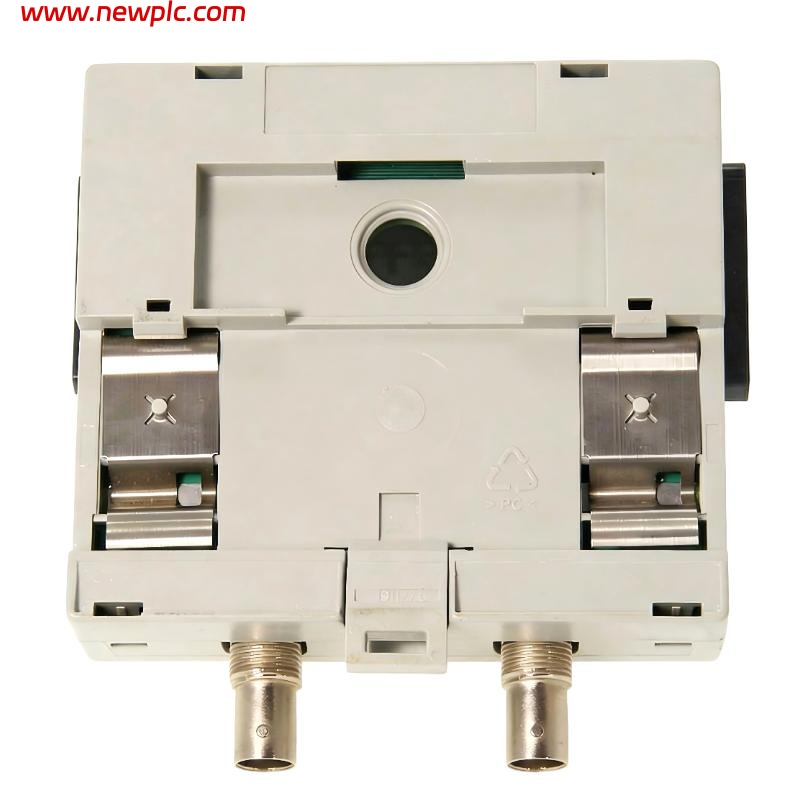

| Mounting Method | 35 mm DIN rail (via repeater adapter system) |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | -40 to 85 °C |
| Humidity | 5–95% non-condensing |
| Vibration | 5 g (10–500 Hz) |
| Delay Time | ~100 ns signal delay |
| Physical Dimensions (L × W × H) | 13.41 × 13.41 × 9.09 cm |
| Weight | 0.279 kg |
FAQ
FAQ
Q1. What is the main function of the 1786-RPCD?
It is used to extend and segment ControlNet networks by regenerating and retiming coaxial signals.
Q2. What network protocol does it support?
It supports the ControlNet industrial communication protocol.
Q3. How many channels does the module provide?
It provides two independent coaxial communication channels.
Q4. What type of cable is used with the 1786-RPCD?
It uses 75-ohm RG-6 coaxial cable designed for ControlNet systems.
Q5. What power source does it require?
It is powered through a 1786-RPA or 1786-RPA/B repeater adapter using 5 VDC.
Q6. What are the installation requirements?
It is mounted on a 35 mm DIN rail via the repeater adapter system and must be installed without power applied.
Q7. What is the operating environment range?
It operates between 0 °C and 60 °C in industrial environments.
Q8. Is the 1786-RPCD still in production?
No, it is a discontinued (end-of-life) ControlNet component, typically available only through surplus industrial suppliers.
