Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | Allen-Bradley 1786-TPYR |
| Manufacturer | Rockwell Automation (Allen-Bradley) |
| Series | ControlNet Coaxial Media System |

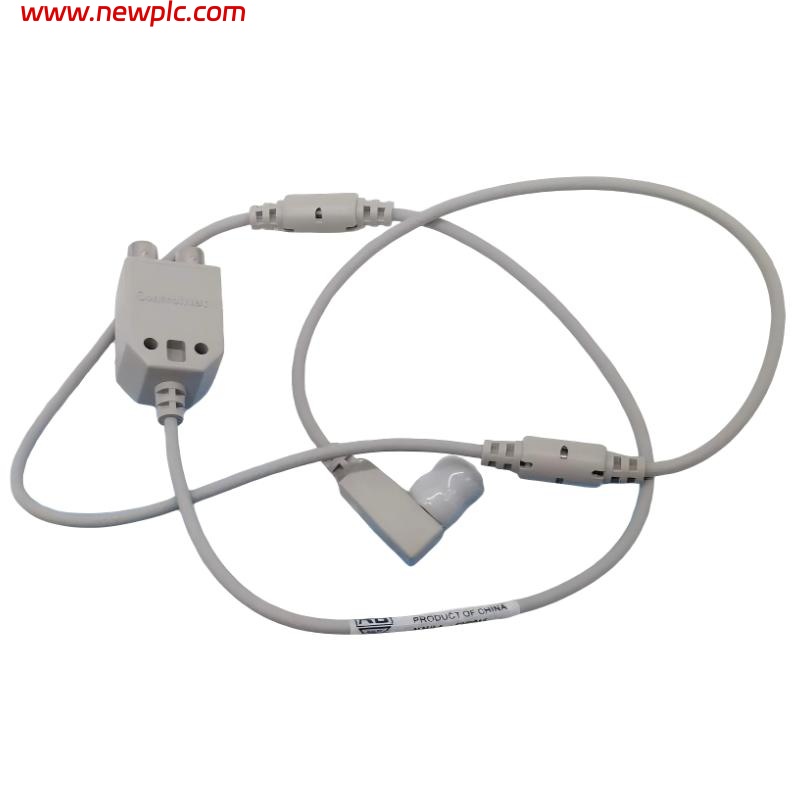

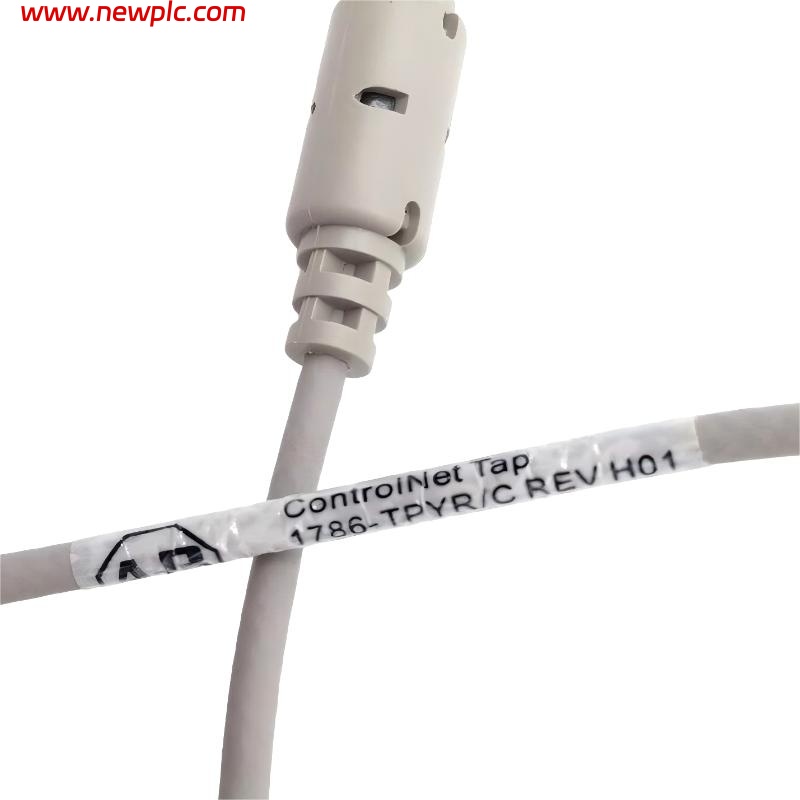

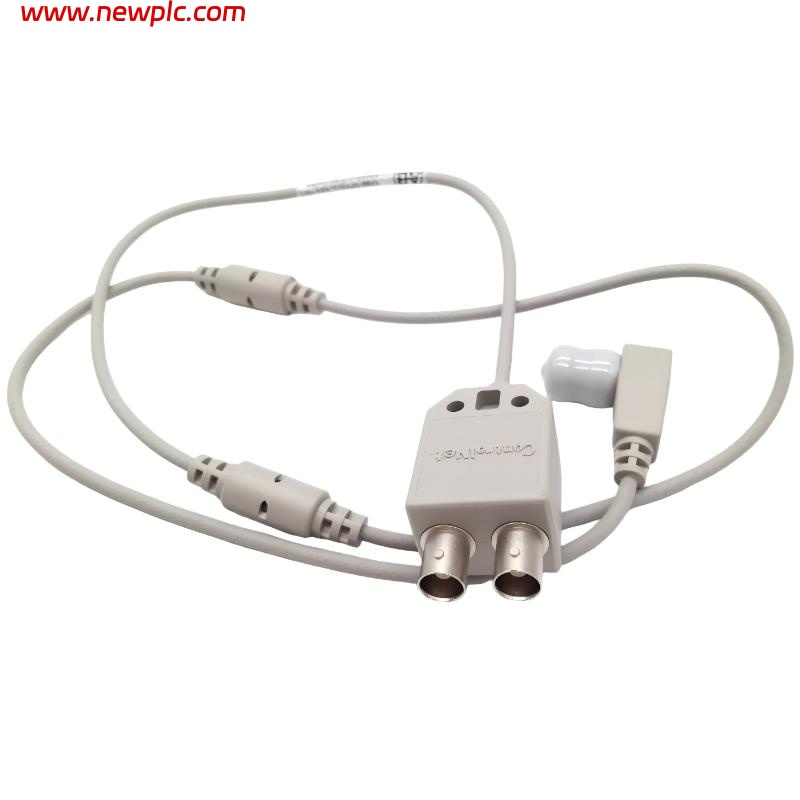

| Product Type | Right-Angle Y-Tap with Integrated Drop Cable |
| Network Type | ControlNet industrial communication network |
| Function | Provides a right-angle Y connection point for ControlNet trunk cable with an integrated drop connection |
| Cable Type | RG-6 coaxial cable (75 Ω ControlNet media) |
| Drop Cable Length | 1 m (39.6 in) integrated drop cable |
| Connector Type | BNC (ControlNet tap interface) |
| Supported Topology | Linear trunk with Y-drop branching |
| Data Rate | 5 Mbps (ControlNet standard) |
| Operating Temperature | -20 to 70 °C |
| Storage Temperature | -40 to 85 °C |
| Humidity | 5 to 95% non-condensing |
| Shock Resistance | 30 g operating / 50 g non-operating |
| Vibration | 2.5 g (10–500 Hz) |
| Environmental Rating | IP20 |
| Physical Dimensions (L × W × H) | 30.3 × 24.2 × 3.6 cm |
| Weight | 0.23 kg |
FAQ
FAQ
Q1. What is the main function of the 1786-TPYR?
It provides a right-angle Y-tap connection for ControlNet networks, allowing a device drop while maintaining trunk continuity.
Q2. What type of network does it support?
It is designed for the ControlNet industrial communication protocol.
Q3. Does it include a cable or only a connector?
It includes an integrated 1-meter drop cable with a BNC connection.
Q4. What cable type is used in the system?
It uses RG-6 75-ohm coaxial cable designed for ControlNet systems.
Q5. What is the operating temperature range?
It operates between -20 °C and 70 °C.
Q6. What is the physical size of the unit?
Approximately 30.3 × 24.2 × 3.6 cm.
Q7. What is the weight of the 1786-TPYR?
It weighs about 0.23 kg.
Q8. Is the 1786-TPYR still used in modern systems?
It is considered legacy ControlNet infrastructure, mainly used in existing installations rather than new network designs.
