Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | DeviceNet Connection Systems |
| Model Number | 1787-PLUG10R |

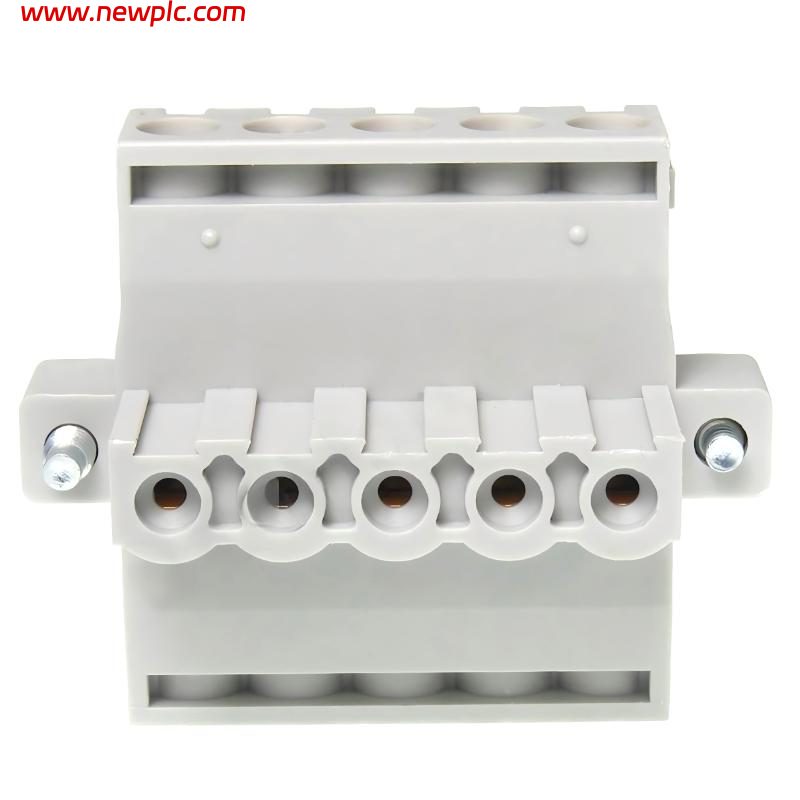

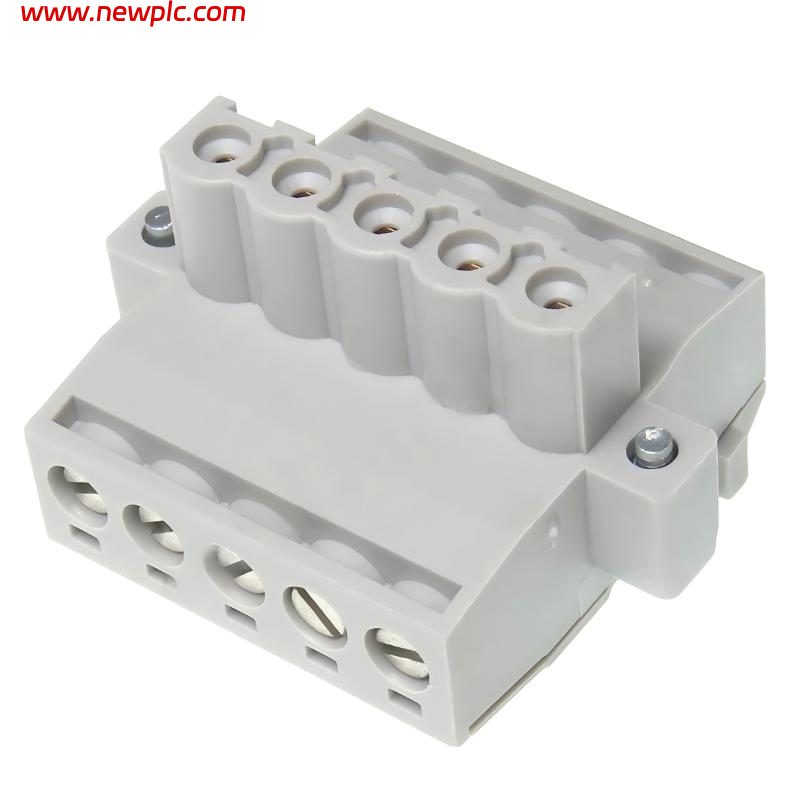

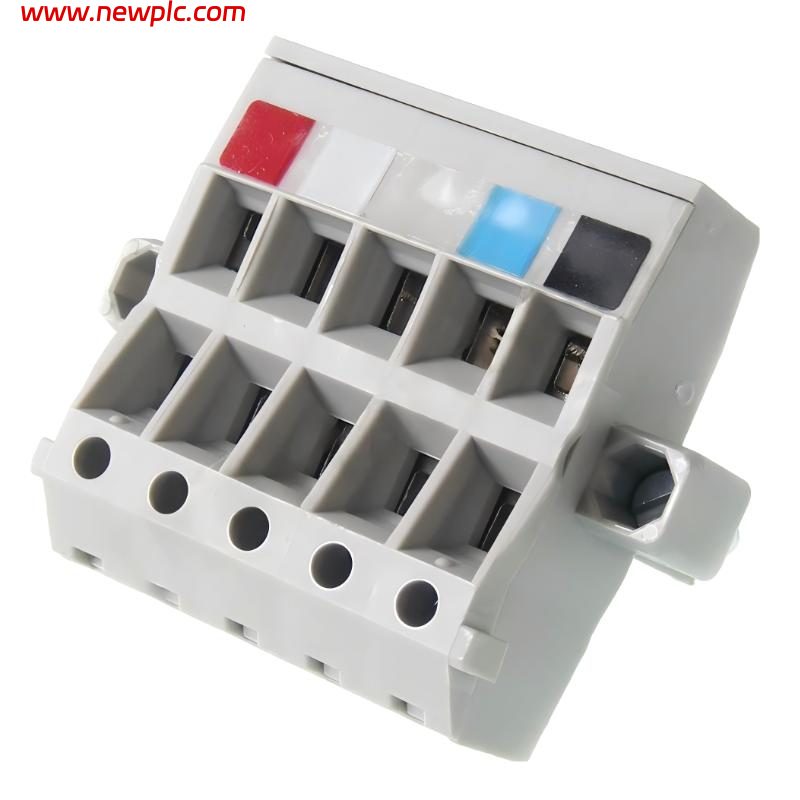

| Product Type | DeviceNet Open Style Connector |
| Connector Configuration | 10-Position Connector |
| Connector Style | Open Style |
| Network Compatibility | DeviceNet |
| Terminal Type | 5-Pin Phoenix Terminals |
| Number of Terminals | 10 Terminals |
| Fastening Method | Jack Screws |
| Wiring Method | Daisy-Chain Configuration |
| Cable Compatibility | Thick Cable, Thin Cable, KwikLink, KwikLink Lite |
| Supported Signals | CAN_H, CAN_L, V+, V-, Shield |
| Connector Material | Industrial Thermoplastic |
| Installation Type | Field Installable |
| Physical Keying | Yes |
| Probe Holes | Yes |
| Communication Protocol | DeviceNet |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Certifications | UL, CE, KC |
| Packaging Quantity | 10 Units per Package |
| Lifecycle Status | Active |
| Dimensions | Approx. 175 x 125 x 71 mm (Package Dimensions) |
| Weight | Approx. 0.27 kg |
| Typical Applications | DeviceNet Daisy-Chain Networks, PLC Communication, Distributed I/O Wiring |
FAQ
FAQ
Q1: What is the Allen-Bradley 1787-PLUG10R used for?
A1: The 1787-PLUG10R is a DeviceNet open style connector designed for daisy-chain network node connections in industrial automation systems.
Q2: What type of connector is the 1787-PLUG10R?
A2: It is a 10-position open style DeviceNet connector with 5-pin Phoenix terminals and jack screws for secure wiring connections.
Q3: How many connectors are included in one package?
A3: The product is supplied as a factory package containing 10 connector units.
Q4: Which cable types are compatible with the 1787-PLUG10R?
A4: The connector supports DeviceNet thick cable, thin cable, KwikLink, and KwikLink Lite cable systems.
Q5: Does the 1787-PLUG10R include jack screws?
A5: Yes. The connector includes integrated jack screws to provide secure mechanical fastening during installation.
Q6: Is the 1787-PLUG10R suitable for field installation?
A6: Yes. The connector is designed for field wiring and quick installation in industrial DeviceNet communication systems.
Q7: What are the common applications of the 1787-PLUG10R?
A7: Common applications include DeviceNet trunk and drop cable connections, PLC communication systems, distributed I/O networks, and industrial automation wiring.
Q8: Is the 1787-PLUG10R still an active product?
A8: Yes. Rockwell Automation currently lists the 1787-PLUG10R as an active product in the DeviceNet connection systems family.
