Technical Specifications
| Parameter | Details |
|---|---|

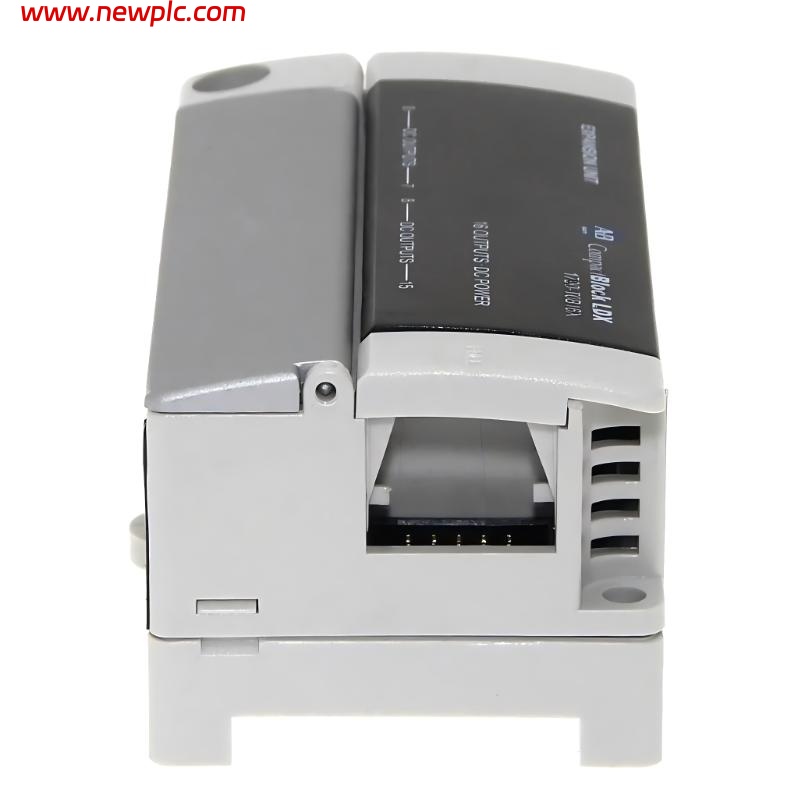

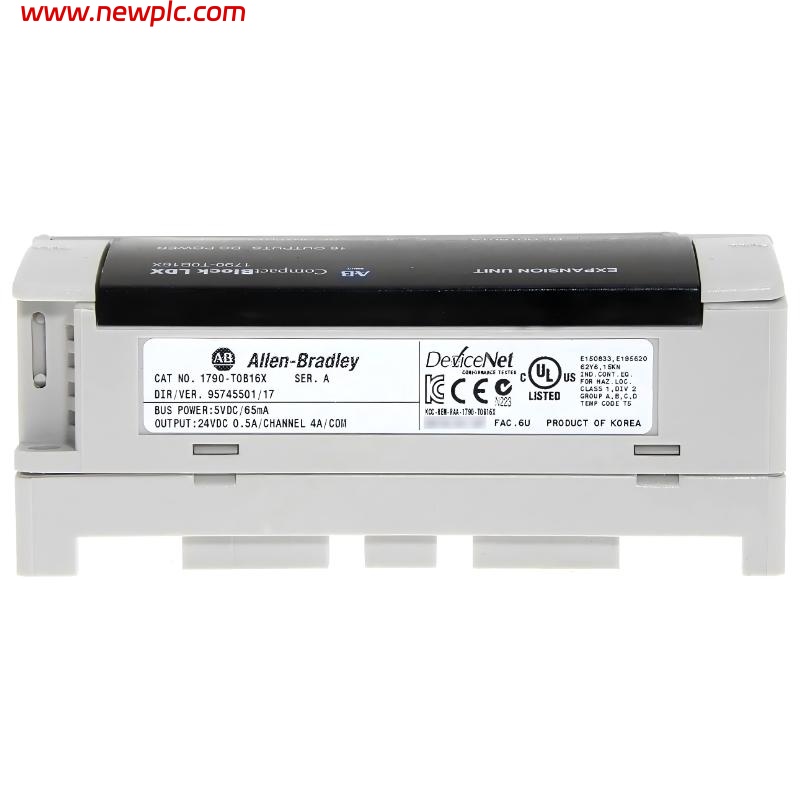

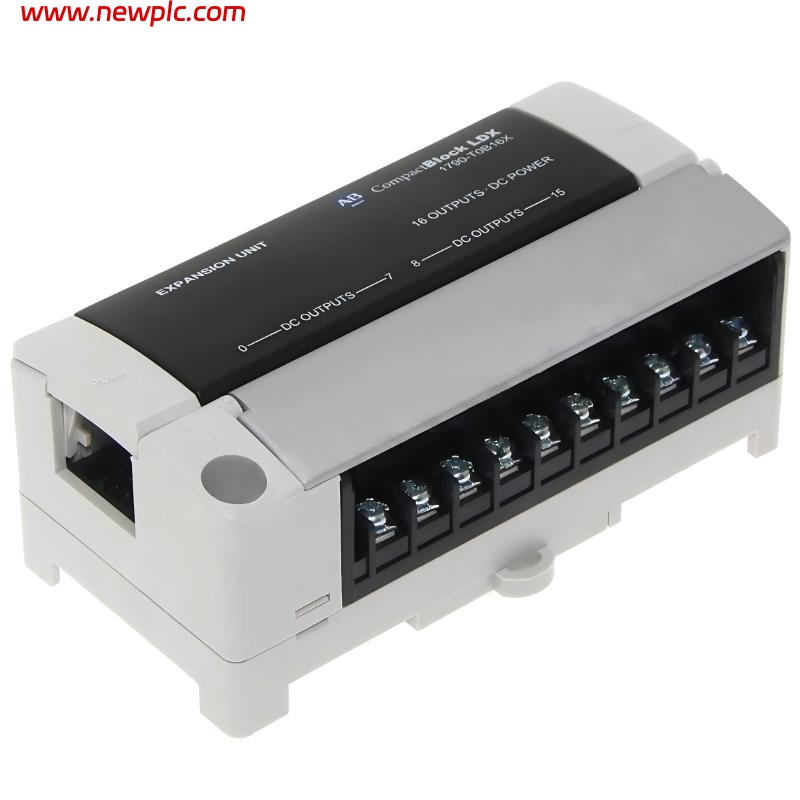

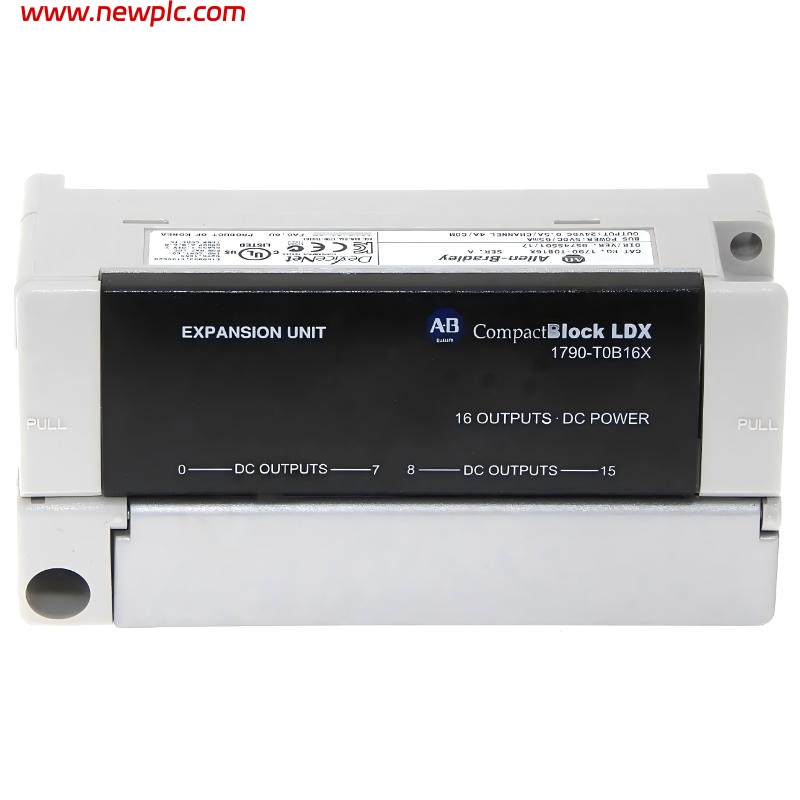

| Product Name | Allen-Bradley 1790-T0B16X |
| Manufacturer | Rockwell Automation (Allen-Bradley) |
| Series | CompactBlock LDX |
| Product Type | DeviceNet Digital Output Expansion Block |
| Function | 16-point digital sourcing output expansion module |
| Network Protocol | DeviceNet |
| Output Type | 24 VDC sourcing (PNP) |
| Number of Outputs | 16 points |
| Output Voltage Range | 10 to 28.8 VDC |
| Output Current | Up to 0.5 A per point |
| Power Supply | 24 VDC |
| Communication Interface | Expansion via ribbon cable to base block |
| Connection Type | Removable screw-clamp terminal |
| Isolation | Non-isolated (field to logic) |
| Enclosure Rating | IP20 (open style) |
| Mounting Type | DIN rail / panel mount |
| Operating Environment | Industrial control applications |
| Physical Dimensions (L × W × H) | 14.605 × 9.144 × 8.636 cm |
| Weight | 0.238 kg |
FAQ
FAQ
Q1. What is the main function of the 1790-T0B16X?
It is a 16-point digital output expansion module used to extend CompactBlock LDX DeviceNet systems.
Q2. What type of outputs does it provide?
It provides 24 VDC sourcing (PNP) digital outputs.
Q3. How is the module connected to the system?
It connects to a base block or another expansion module via an integrated ribbon cable.
Q4. What is the maximum output current per channel?
Each output can handle up to 0.5 A.
Q5. Does it have electrical isolation?
No, it is a non-isolated module between field power and logic.
Q6. What type of wiring connection is used?
It uses removable screw-clamp terminals for field wiring.
Q7. What are the physical dimensions and weight?
It measures approximately 14.605 × 9.144 × 8.636 cm and weighs about 0.238 kg.
Q8. What applications is it typically used in?
It is commonly used in distributed automation systems to expand digital output capacity, such as conveyor control and machine automation.
