Allen Bradley 1794-ACNR FLEX I/O ControlNet Redundant Media Adapter Module

FAQ

Q1: What is the 1794-ACNR?
A: It is an Allen-Bradley FLEX I/O ControlNet redundant media adapter module.

Q2: How many FLEX I/O modules can it support?
A: It can connect up to 8 FLEX I/O modules, providing up to 128 I/O points.

Q3: Does the 1794-ACNR support redundant ControlNet media?

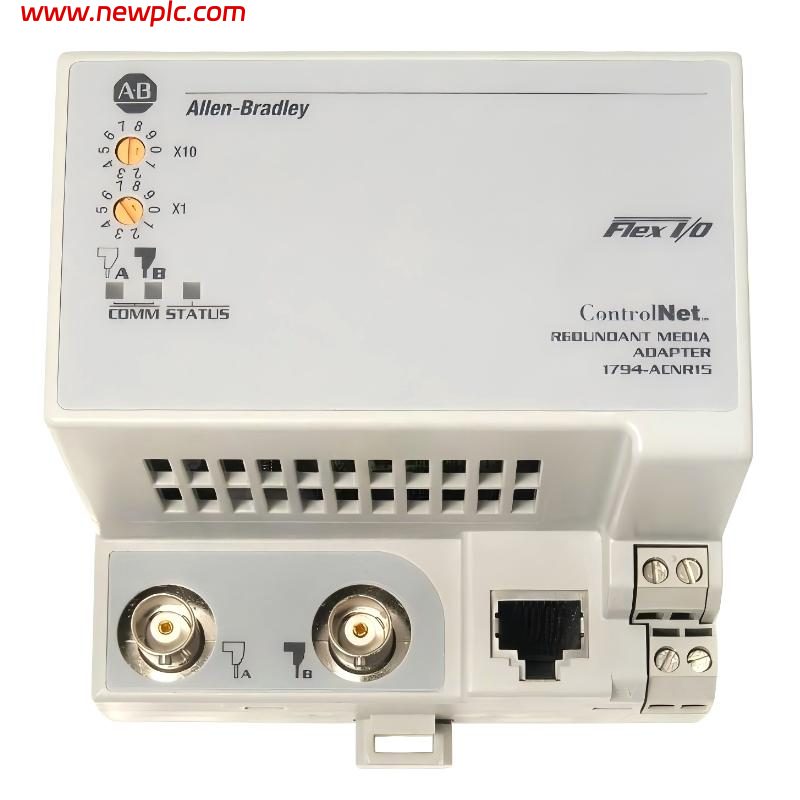

A: Yes. It has two ControlNet BNC connectors, designated for redundant media operation.

Q4: What power supply does it require?
A: It uses a nominal 24V DC external power supply, with an allowable range of 19.2–31.2V DC.

Q5: What is the ControlNet communication speed?
A: The communication rate is 5 Mbps.

Q6: Can FLEX I/O modules be removed while the system is powered?
A: The adapter supports removal and insertion of FLEX I/O modules under backplane power.

Q7: What are the dimensions of the 1794-ACNR?
A: The mounting dimensions are approximately 87.4 × 94 × 92 mm.

Q8: Is 1794-ACNR still available from Rockwell Automation?
A: The original 1794-ACNR is a legacy product. The later 1794-ACNR15 Series D is the corresponding FLEX I/O ControlNet redundant-media adapter designation; Rockwell currently lists the ACNR15 as End of Life with a discontinuation date of October 31, 2026.
