Technical Specifications
| Parameter | Details |
|---|---|

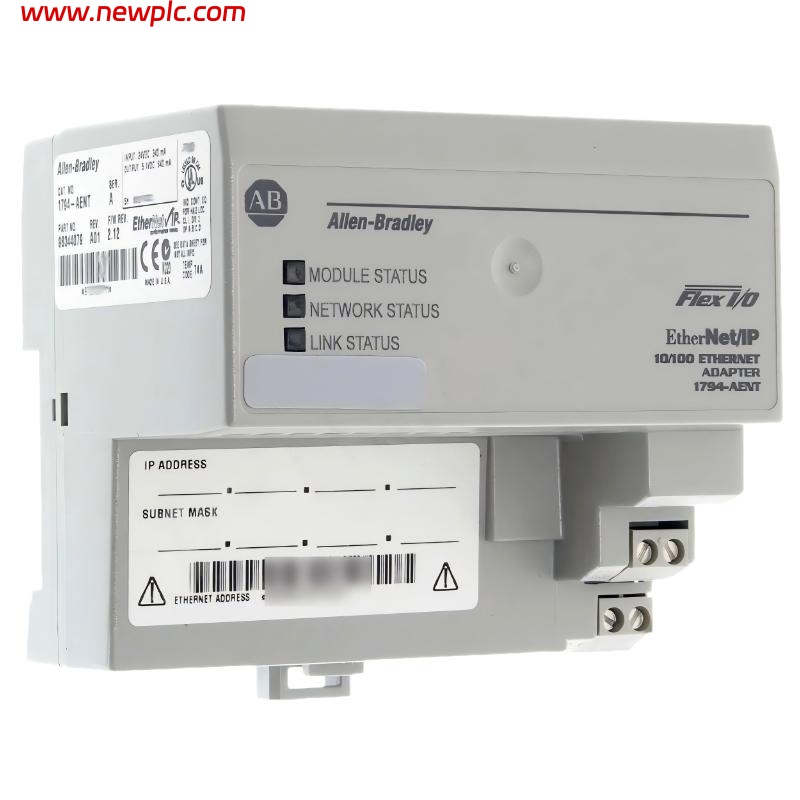

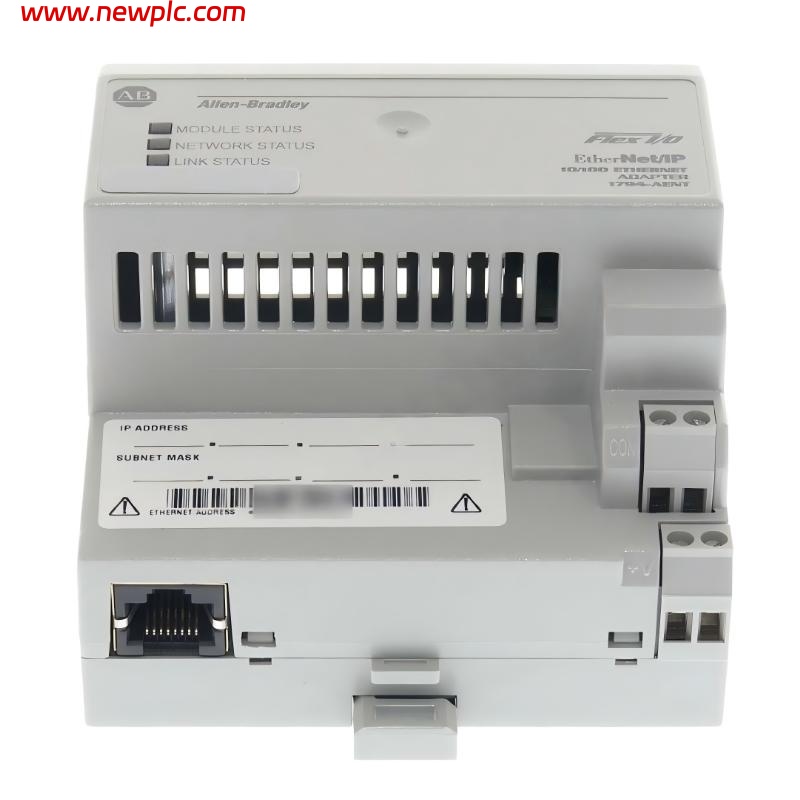

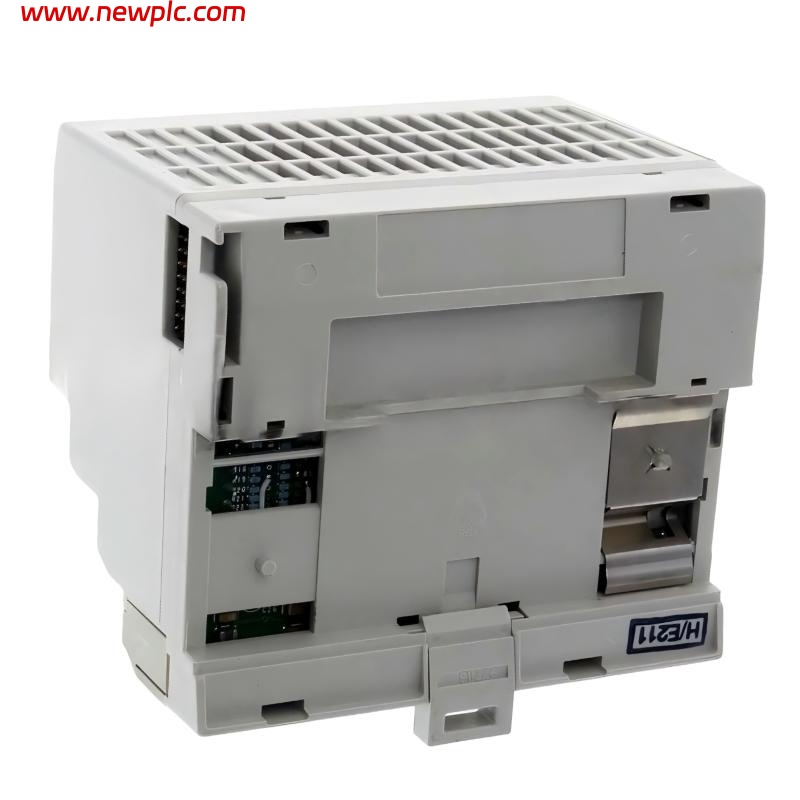

| Product Name | Allen-Bradley 1794-AENT |
| Manufacturer | Rockwell Automation (Allen-Bradley) |
| Series | FLEX I/O 1794 |
| Product Type | EtherNet/IP Communication Adapter |
| Function | Interface FLEX I/O modules to EtherNet/IP network |
| Network Protocol | EtherNet/IP (CIP) |
| Communication Rate | 10/100 Mbps auto-negotiation |
| Ethernet Ports | 1 RJ45 port |
| I/O Capacity | Supports up to 8 FLEX I/O modules |
| Maximum I/O Points | Up to 256 digital I/O (system dependent) |
| Power Supply | 24 VDC |
| Input Voltage Range | 19.2 to 31.2 VDC |
| Current Consumption | ~400 mA max @ 24 VDC |
| FlexBus Output Current | up to 640 mA @ 5 VDC |
| Power Dissipation | ~4.0–5.0 W |
| Isolation Voltage | 30 V continuous isolation (communication to system) |
| Indicators | Status LEDs (Module, Network, Link/Activity) |
| Wiring Type | RJ45 Ethernet + screw terminals for power |
| Mounting Type | DIN rail / panel mount |
| Enclosure Rating | IP20 |
| Operating Temperature | -20 to 70 °C |
| Storage Temperature | -40 to 85 °C |
| Humidity | 5 to 95% non-condensing |
| Physical Dimensions (L × W × H) | 6.9 × 9.4 × 8.7 cm |
| Weight | ~0.18–0.22 kg |
FAQ
FAQ
Q1. What is the main function of the 1794-AENT?
It is an EtherNet/IP adapter used to connect FLEX I/O modules to Ethernet-based industrial control systems.
Q2. What network protocol does it use?
It uses the EtherNet/IP protocol based on standard Ethernet communication.
Q3. How many I/O modules can it support?
It can support up to 8 FLEX I/O modules on a single adapter.
Q4. What is the communication speed?
It supports 10/100 Mbps with automatic speed and duplex negotiation.
Q5. What type of connection does it use?
It uses an RJ45 Ethernet port for network communication.
Q6. What is the required power supply?
It requires a 24 VDC power supply with a range of 19.2 to 31.2 VDC.
Q7. What are its physical size and weight?
It measures approximately 6.9 × 9.4 × 8.7 cm and weighs about 0.18–0.22 kg.
Q8. What applications is it typically used for?
It is used in distributed
