Technical Specifications
| Parameter | Details |
|---|---|

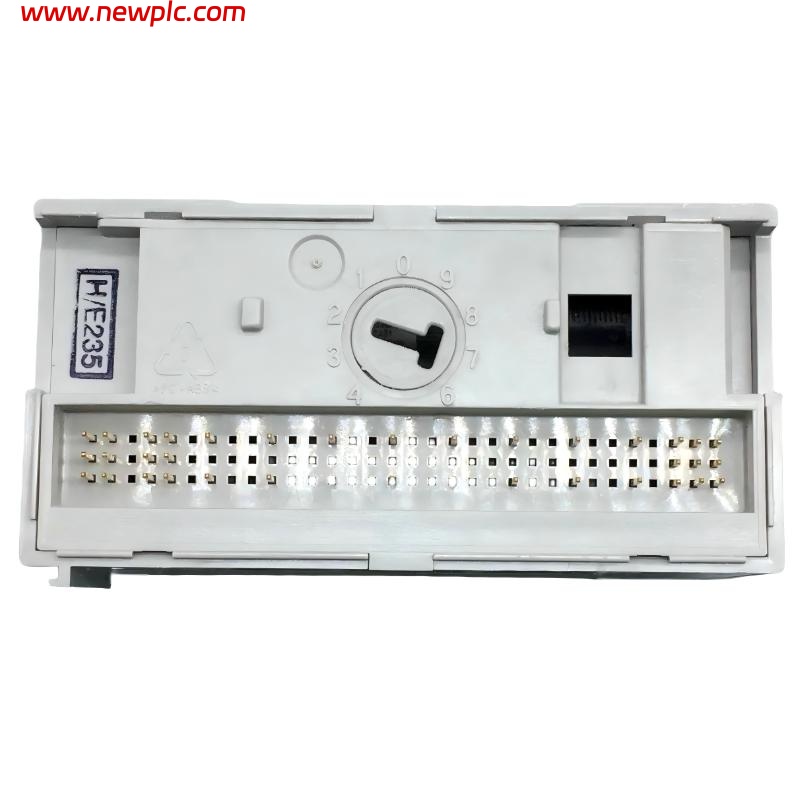

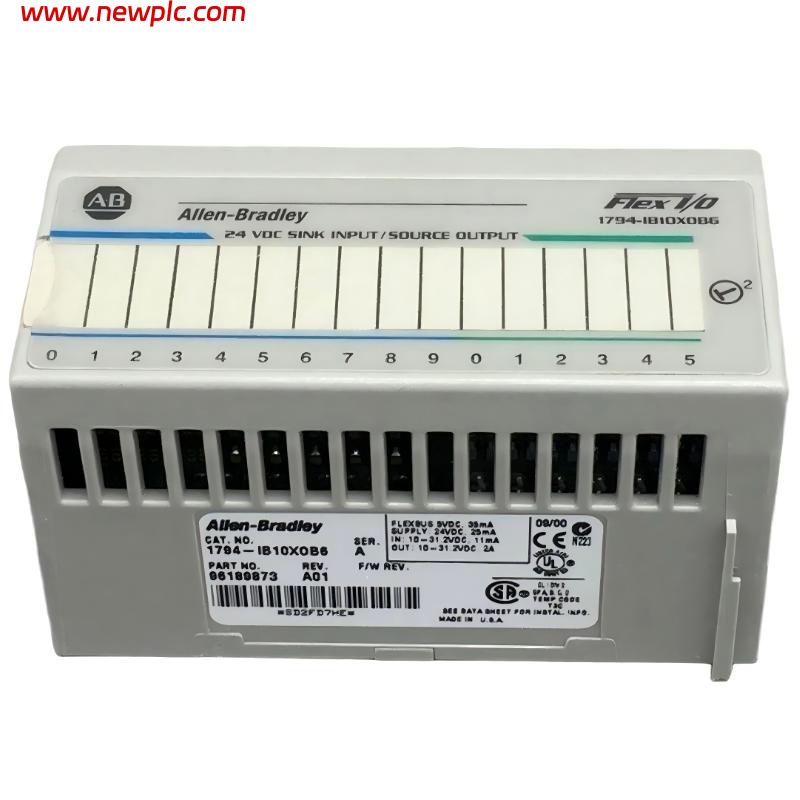

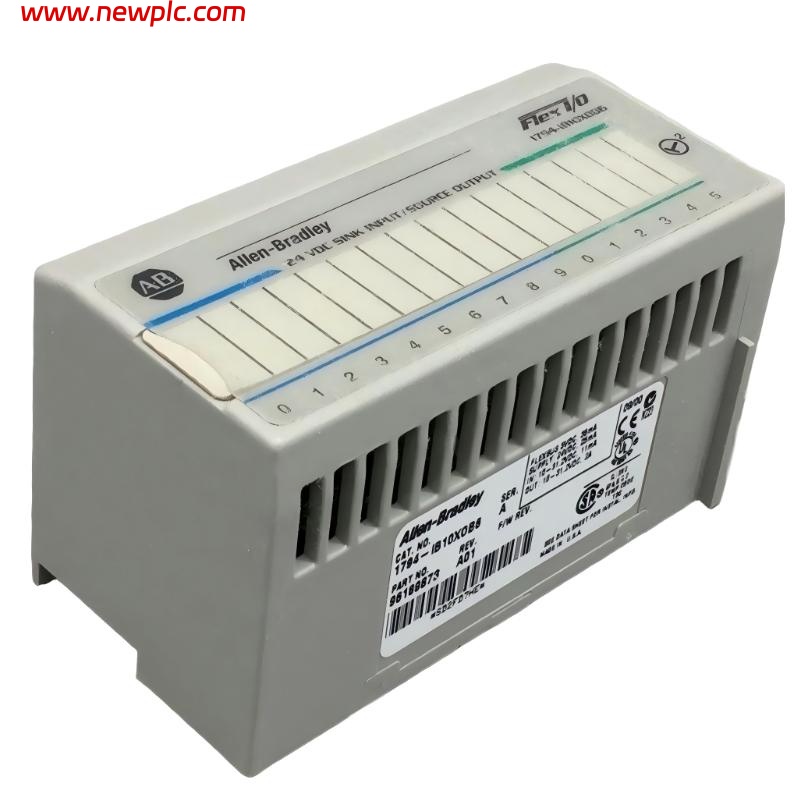

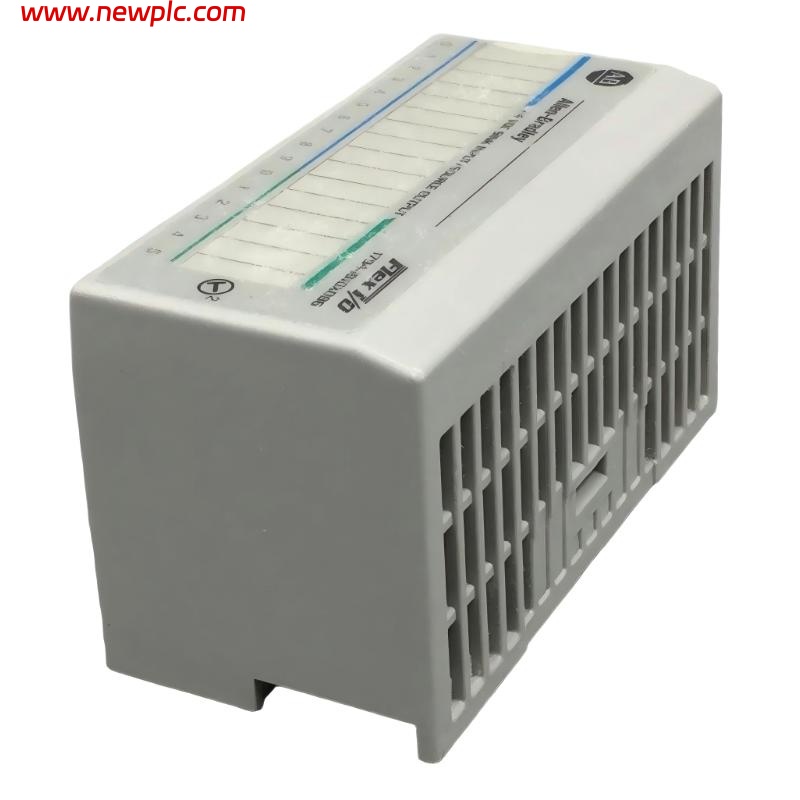

| Product Name | Allen-Bradley 1794-IB10XOB6 |
| Manufacturer | Rockwell Automation (Allen-Bradley) |
| Series | FLEX I/O 1794 |
| Product Type | Digital Combination I/O Module |
| Function | 10-point digital input + 6-point digital output module |
| Input Channels | 10 points |
| Output Channels | 6 points |
| Input Type | 24 VDC sinking inputs |
| Output Type | 24 VDC sourcing outputs |
| Operating Voltage | 24 VDC |
| Input Voltage Range | 10 to 31.2 VDC |
| Output Voltage Range | 10 to 31.2 VDC |
| Backplane Current | ~50 mA @ 5 VDC |
| Power Dissipation | ~6.0 W max |
| Isolation | Basic isolation (field to system, no channel-to-channel isolation) |
| Communication | Via FLEX I/O adapter (EtherNet/IP, ControlNet, DeviceNet, etc.) |
| Mounting Type | DIN rail / panel mount |
| Enclosure Rating | IP20 (open-style) |
| Operating Temperature | 0 to 55 °C |
| Storage Temperature | -40 to 85 °C |
| Compatible Terminal Base | 1794-TB3 / 1794-TB3S |
| Physical Dimensions (L × W × H) | 6.9 × 9.4 × 9.4 cm |
| Weight | ~0.085–0.5 kg (depending on source and configuration) |
FAQ
FAQ
Q1. What is the main function of the 1794-IB10XOB6?
It is a FLEX I/O combination module that provides both digital inputs and outputs in one compact unit.
Q2. How many inputs and outputs does it have?
It includes 10 digital input channels and 6 digital output channels.
Q3. What type of signals does it handle?
It handles 24 VDC signals with sinking inputs and sourcing outputs.
Q4. What system does it connect to?
It connects to a FLEX I/O system via a communication adapter such as EtherNet/IP or DeviceNet.
Q5. Does it provide isolation between channels?
No, it provides basic isolation between field and system, but not between individual channels.
Q6. What is the operating temperature range?
It operates between 0 °C and 55 °C in standard industrial environments.
Q7. What are the physical size and weight?
It measures approximately 6.9 × 9.4 × 9.4 cm and weighs about 0.085–0.5 kg depending on configuration.
Q8. What applications is it typically used for?
It is used in industrial automation systems for compact distributed control where both input monitoring and output control are required in a single module.
