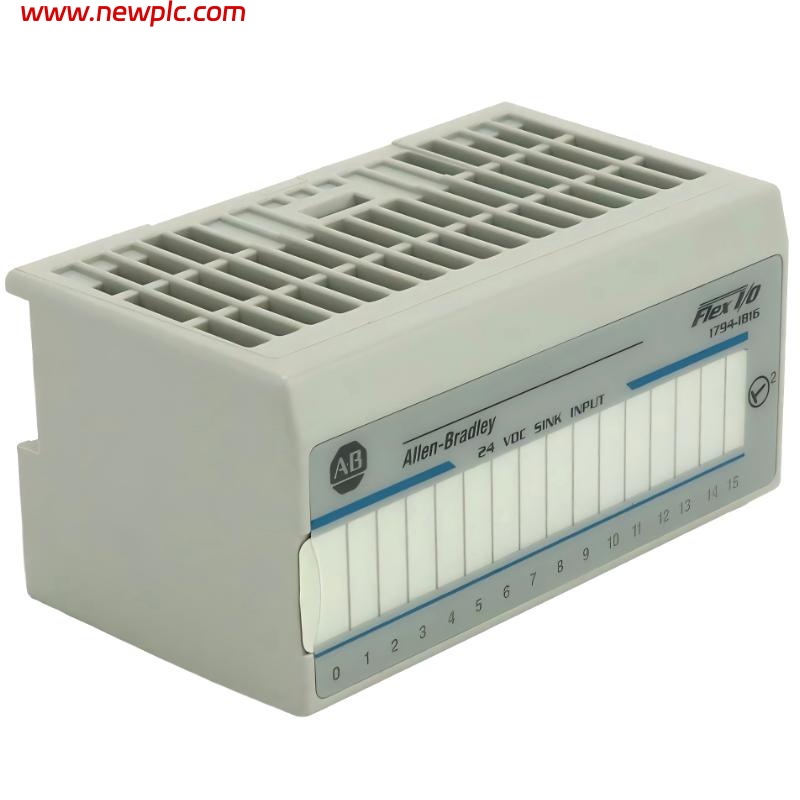

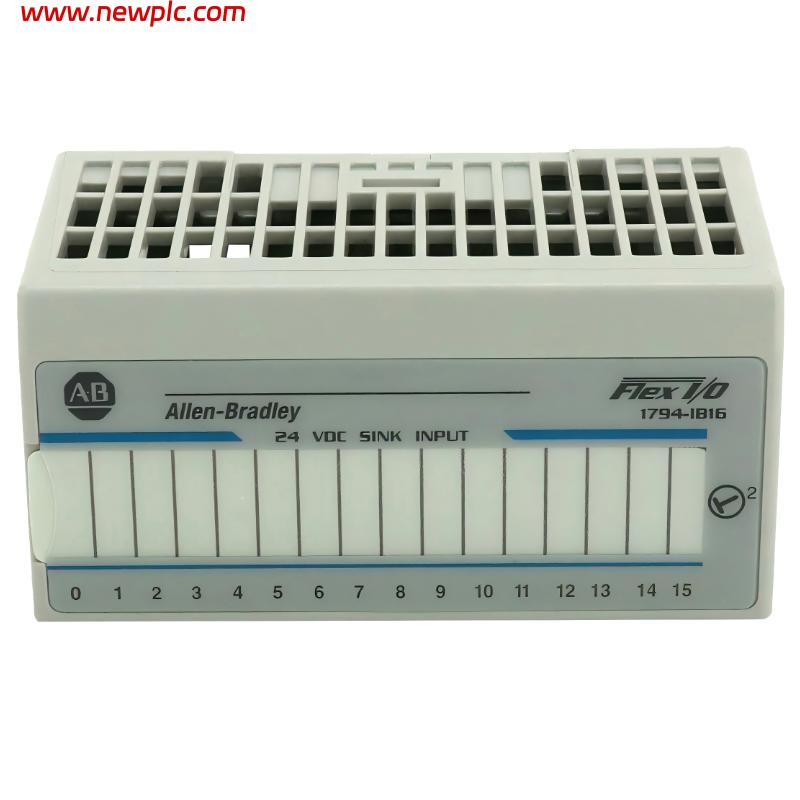

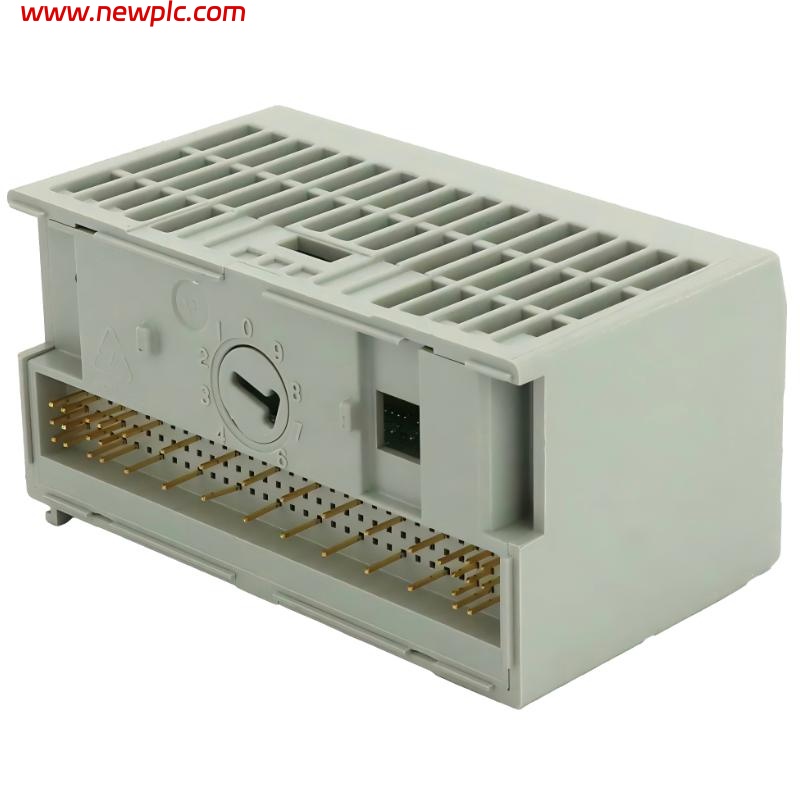

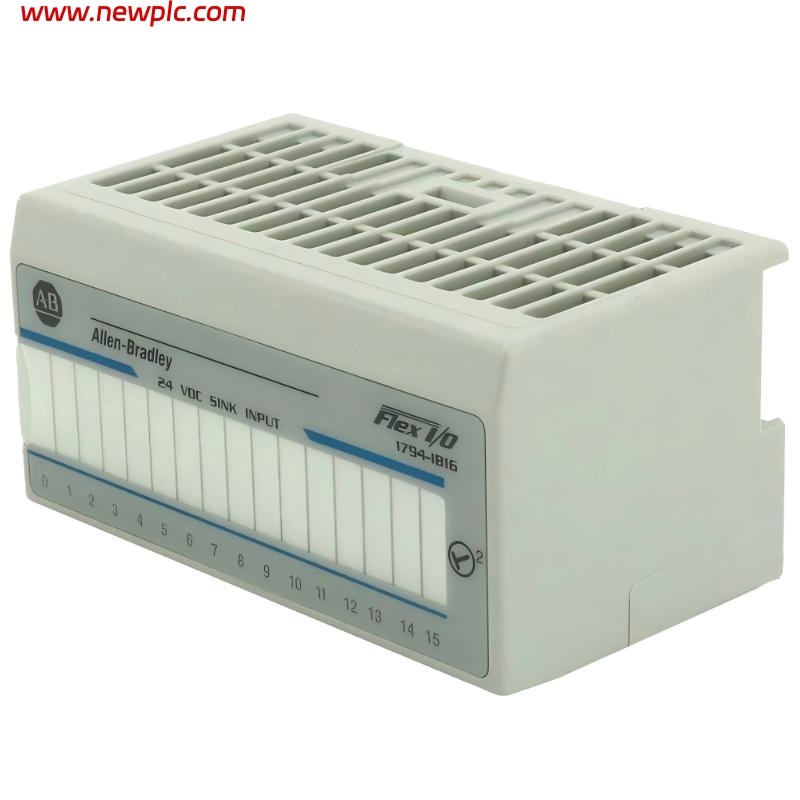

Allen-Bradley 1794-IB16 Digital Input Module

FAQ

Q1. What is the main function of the 1794-IB16?
It is a FLEX I/O module used to collect 16 digital input signals from field devices such as sensors and switches.

Q2. What type of inputs does it support?
It supports 24 VDC sinking (NPN) inputs commonly used in industrial control systems.

Q3. How many input channels are available?
It provides 16 independent digital input channels.

Q4. What is the input voltage range?
The module operates within a range of 10 to 31.2 VDC, with a nominal 24 VDC rating.

Q5. Does it require a communication adapter?
Yes, it must be used with a FLEX I/O communication adapter such as EtherNet/IP or DeviceNet.

Q6. What terminal bases are compatible?
It is compatible with multiple FLEX terminal bases such as 1794-TB3 and TB3S series.

Q7. What are its physical size and weight?
It measures approximately 6.9 × 9.4 × 8.0 cm and weighs about 0.18–0.23 kg.

Q8. What applications is it typically used for?
It is widely used in industrial automation for monitoring digital signals in distributed I/O systems, including manufacturing lines and process control setups.
