Technical Specifications
| Parameter | Details |
|---|---|

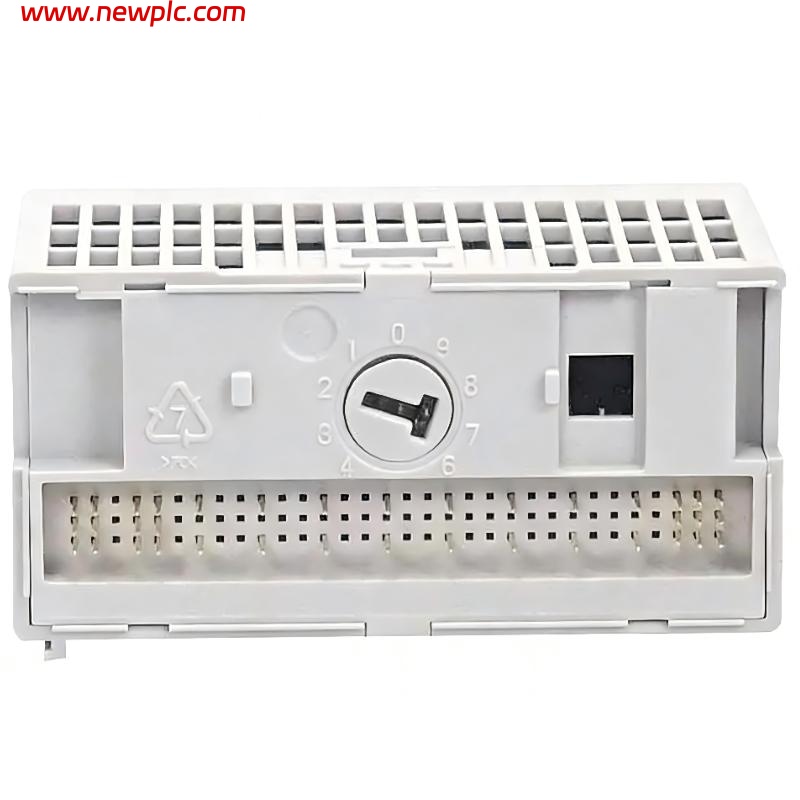

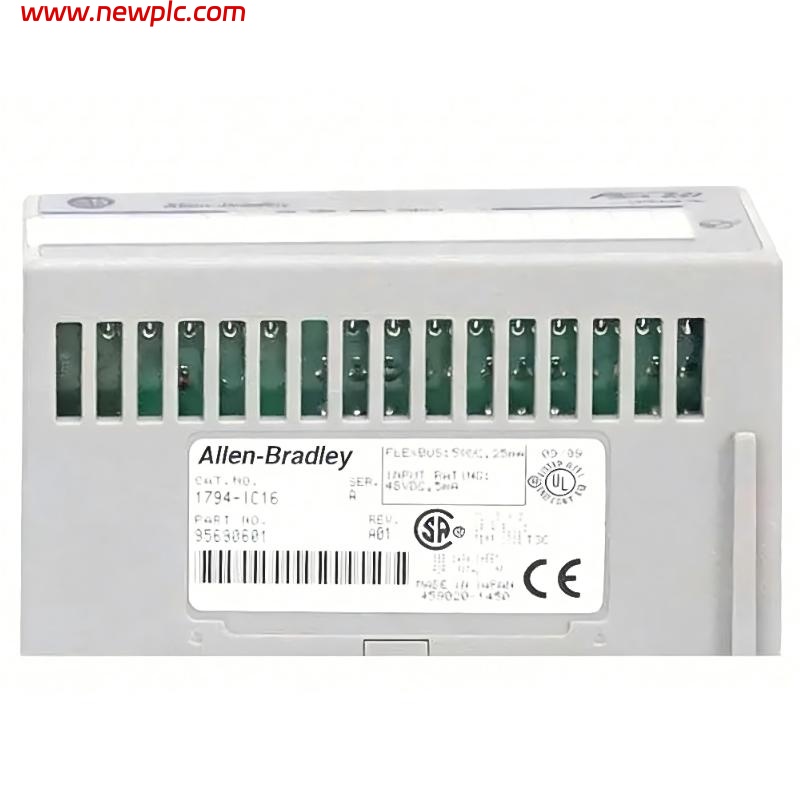

| Product Name | Allen-Bradley 1794-IC16 |
| Manufacturer | Rockwell Automation (Allen-Bradley) |
| Series | FLEX I/O 1794 |
| Product Type | Digital Input Module |
| Function | 16-point DC digital input module |
| Input Channels | 16 points |
| Input Type | 48 VDC sinking (NPN) inputs |
| Nominal Input Voltage | 48 VDC |
| Input Voltage Range | 48 VDC (fixed nominal) |
| Input Configuration | Configurable digital inputs |
| Backplane Power | 5 VDC via FLEX I/O adapter |
| Power Supply Requirement | 48 VDC input supply |
| Isolation | Basic isolation (field to system) |
| Diagnostics | Channel status LEDs |
| Mounting Type | DIN rail |
| Enclosure Rating | IP20 |
| Operating Temperature | 0 to 55 °C |
| Storage Temperature | -40 to 85 °C |
| Humidity | 5 to 95% non-condensing |
| Physical Dimensions (L × W × H) | 6.9 × 9.4 × 9.4 cm |
| Weight | ~0.08–0.10 kg (module), shipping up to ~2 kg |
FAQ
FAQ
Q1. What is the main function of the 1794-IC16?
It is a FLEX I/O module used to read 16 digital input signals at 48 VDC from field devices.
Q2. What type of inputs does it support?
It supports 48 VDC sinking (NPN) digital inputs.
Q3. How many input channels are available?
It provides 16 independent digital input channels.
Q4. What voltage does it operate at?
It operates at a nominal 48 VDC input level.
Q5. Does it require a communication adapter?
Yes, it must be used with a FLEX I/O adapter such as EtherNet/IP, ControlNet, or DeviceNet.
Q6. What mounting method is used?
It is designed for DIN rail mounting in industrial control panels.
Q7. What are the physical size and weight?
It measures approximately 6.9 × 9.4 × 9.4 cm and weighs about 0.08–0.10 kg.
Q8. What applications is it typically used for?
It is used in industrial automation systems where 48 VDC digital signals need to be monitored, such as in heavy-duty control systems and specialized equipment interfaces.
