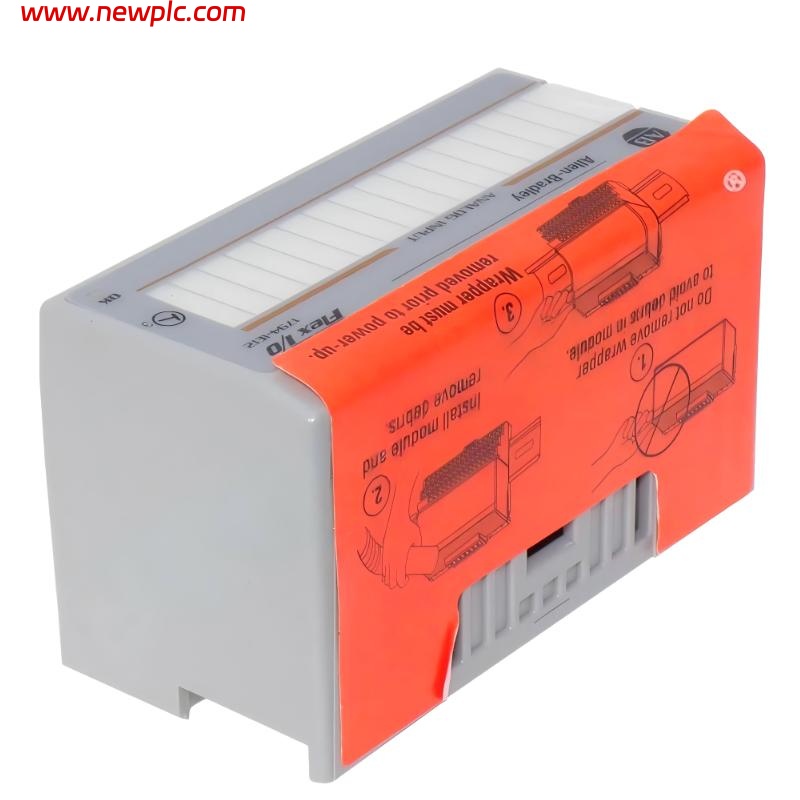

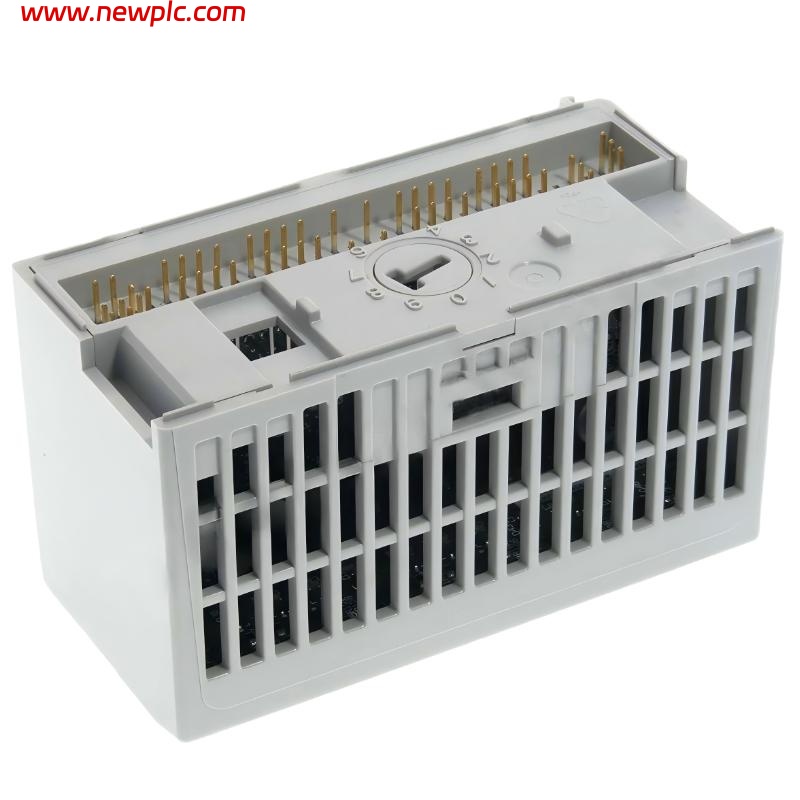

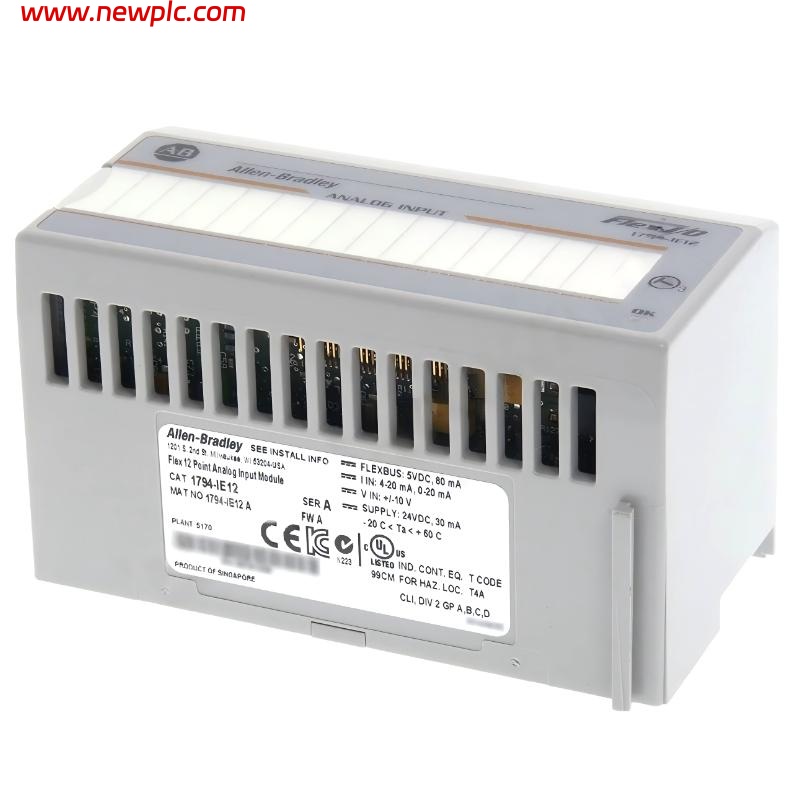

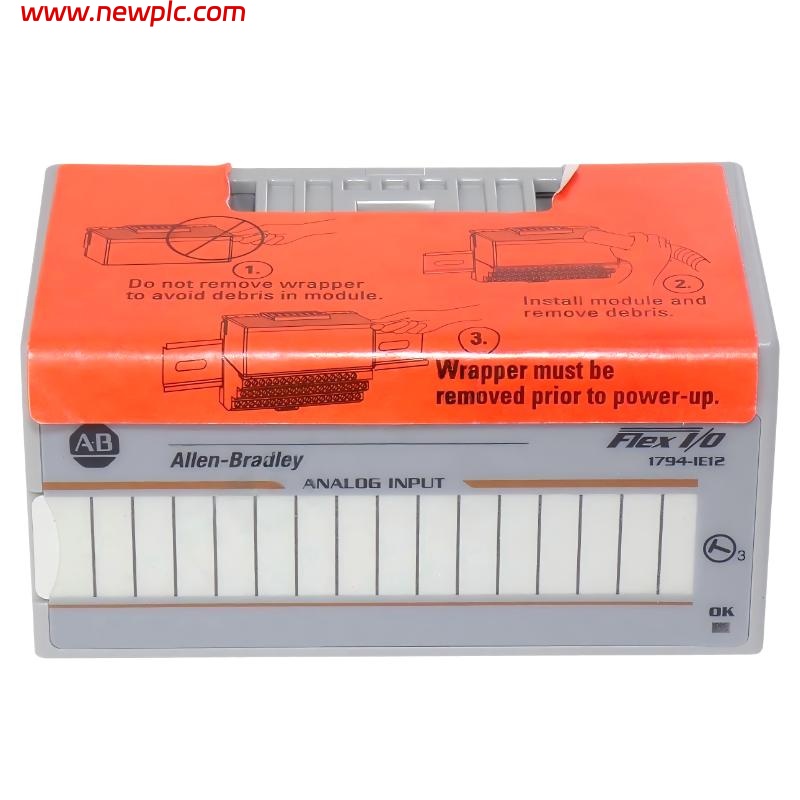

Allen-Bradley 1794-IE12 Analog Input Module

FAQ

Q1. What is the main function of the 1794-IE12?
It is a FLEX I/O analog input module used to measure and convert analog signals from field instruments into digital data.

Q2. How many input channels does it have?
It provides 12 analog input channels.

Q3. What signal types are supported?
It supports 0–10 VDC, ±10 VDC, 0–20 mA, and 4–20 mA signals.

Q4. What is the resolution of the module?
It has 16-bit resolution for high-precision signal conversion.

Q5. What is the conversion time?
All channels are updated in approximately 8 milliseconds.

Q6. What is the operating temperature range?
It operates between 0 °C and 60 °C in standard industrial environments.

Q7. What are its physical size and weight?
It measures 9.4 × 9.4 × 5.3 cm and weighs approximately 0.20 kg.

Q8. What applications is it typically used for?
It is used in industrial automation systems for monitoring analog process variables such as pressure, temperature, flow, and level.
