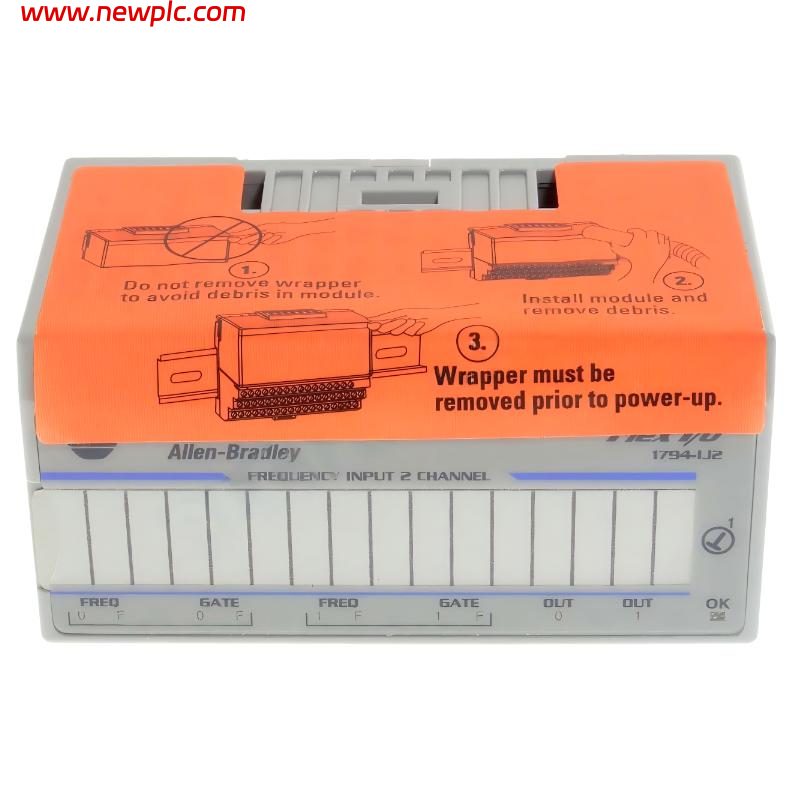

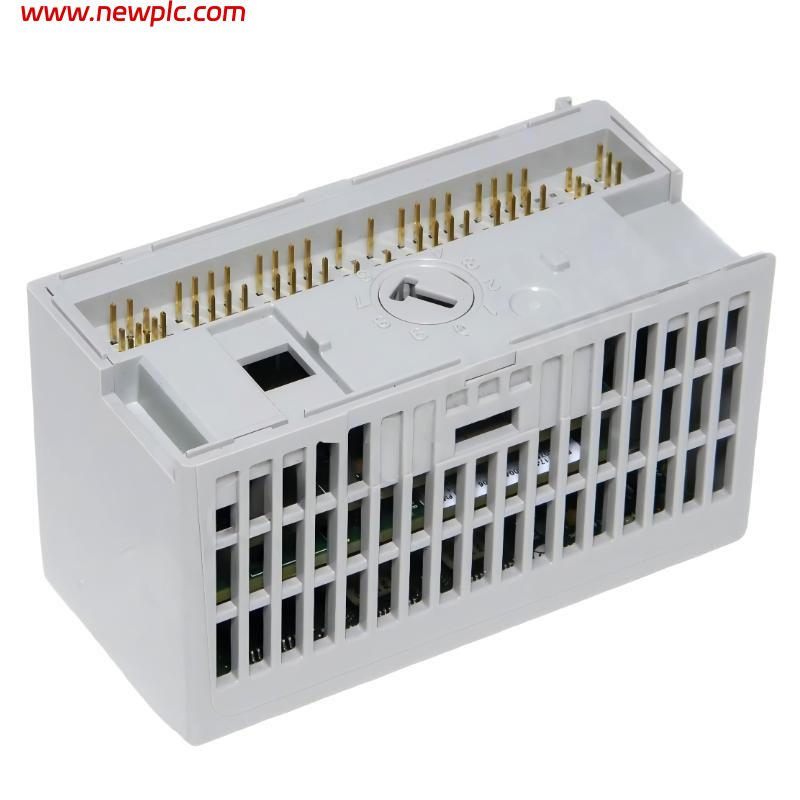

Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | FLEX I/O |
| Model Number | 1794-IJ2 |
| Product Type | Thermocouple/mV Analog Input Module |
| Module Type | FLEX 2-Channel Analog Input Module |
| Number of Inputs | 2 Differential Analog Inputs |
| Input Types | Thermocouple and Millivolt Inputs |
| Supported Thermocouple Types | J, K, T, E, R, S, B, N, C |
| Input Signal Range | ±50 mV, ±100 mV |
| Resolution | 16-bit |
| Data Format | Binary or Scaled Integer |
| Conversion Method | Sigma-Delta Conversion |
| Isolation | Channel-to-Bus Isolation |
| Isolation Voltage | Tested to 850V DC |
| Nominal Supply Voltage | 24V DC |
| Input Voltage Range | 19.2 to 31.2V DC |
| Current Consumption | Approx. 85 mA @ 24V DC |
| FlexBus Current | Approx. 20 mA |
| Cold Junction Compensation | Integrated |
| Open Thermocouple Detection | Yes |
| Compatible Terminal Bases | 1794-TB2, 1794-TB3 Series |
| Status Indicators | Module and Channel Status LEDs |
| Mounting Type | DIN Rail Mount |
| Enclosure Type | Open Style |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Shock Resistance | 30 G Operating |
| Vibration Resistance | 5 G at 10 to 500 Hz |
| Certifications | UL, CE, CSA |
| Lifecycle Status | Discontinued |
| Dimensions | Approx. 94 x 94 x 55 mm |
| Weight | Approx. 0.20 kg |
| Typical Applications | Temperature Monitoring, Process Control, Industrial Analog Measurement |
FAQ
FAQ
Q1: What is the Allen-Bradley 1794-IJ2 used for?
A1: The 1794-IJ2 is a FLEX I/O thermocouple and millivolt analog input module designed for industrial temperature monitoring and low-level analog signal measurement applications.
Q2: How many input channels does the 1794-IJ2 provide?
A2: The module provides 2 differential analog input channels for thermocouple and millivolt signal measurement.
Q3: Which thermocouple types are supported by the 1794-IJ2?
A3: The module supports J, K, T, E, R, S, B, N, and C thermocouple types.
Q4: Does the 1794-IJ2 include cold junction compensation?
A4: Yes. The module includes integrated cold junction compensation for improved thermocouple measurement accuracy.
Q5: Can the 1794-IJ2 detect open thermocouple conditions?
A5: Yes. The module supports automatic open thermocouple detection for improved diagnostics and process reliability.
Q6: Which terminal bases are compatible with the 1794-IJ2?
A6: The module is compatible with FLEX I/O terminal bases including the 1794-TB2 and 1794-TB3 series.
Q7: What mounting method is used for the 1794-IJ2?
A7: The module is designed for DIN rail mounting inside industrial automation and process control cabinets.
Q8: What are the common applications of the 1794-IJ2?
A8: Common applications include industrial temperature monitoring, furnace control, process automation, heat treatment systems, and low-level analog signal measurement.
