Technical Specifications
| Parameter | Details |
|---|---|

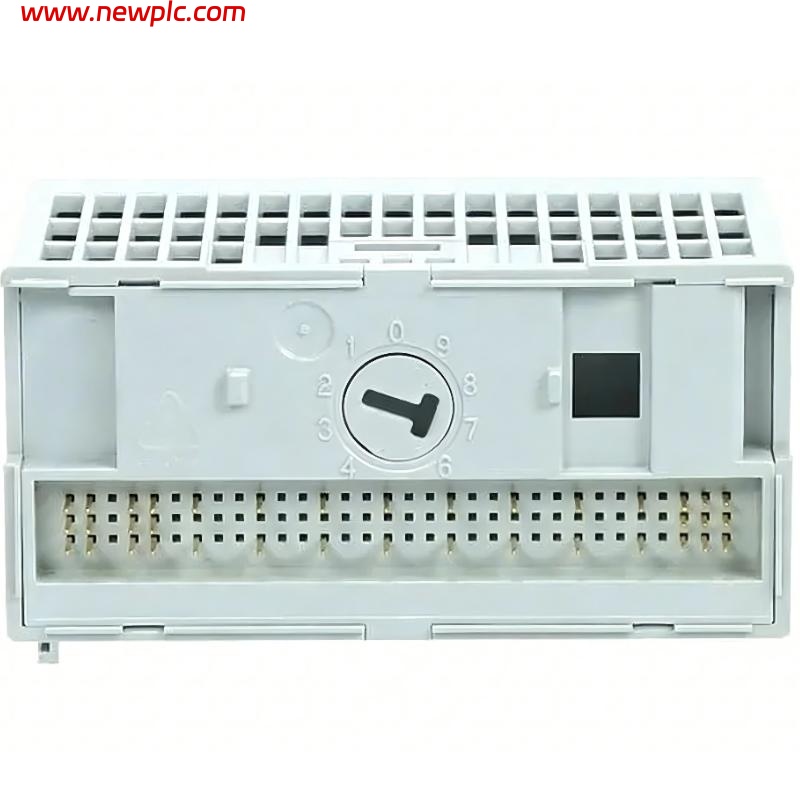

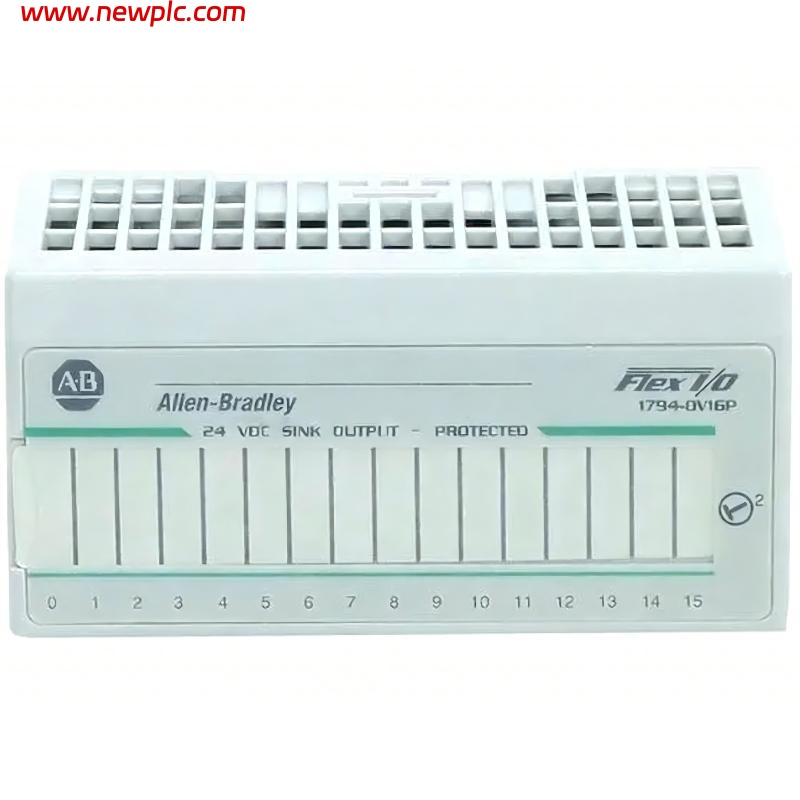

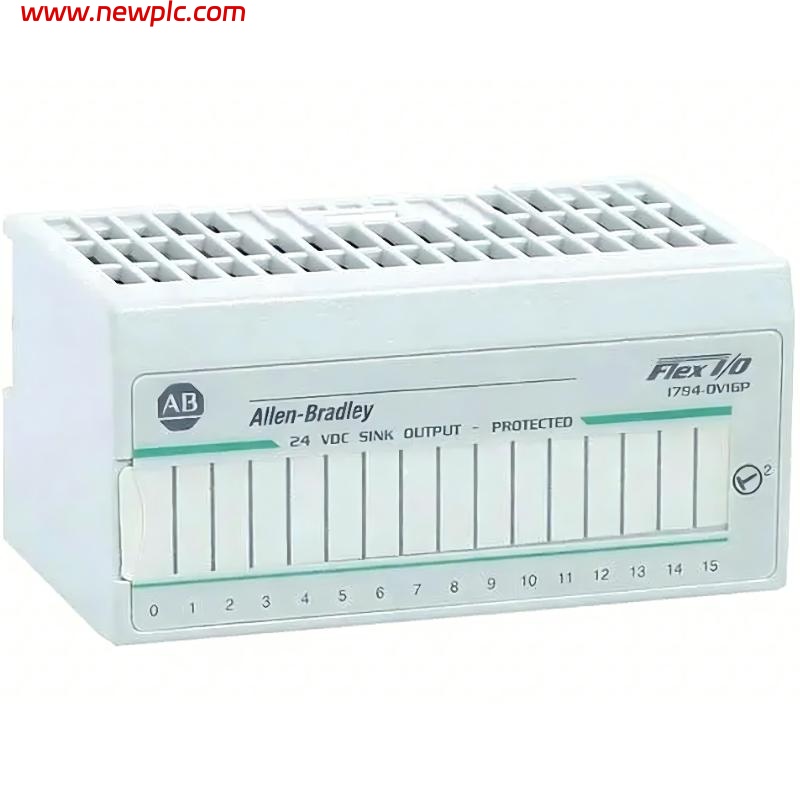

| Product Name | Allen-Bradley 1794-OV16P |
| Manufacturer | Rockwell Automation (Allen-Bradley) |
| Series | FLEX I/O 1794 |
| Module Type | DC Digital Output Module (Protected, Sinking) |
| Output Channels | 16 points |
| Output Type | 24 VDC sinking (NPN) |
| Output Voltage | 24 VDC nominal |
| Output Voltage Range | 10 to 31.2 VDC |
| Output Current | 0.5 A per channel |
| Total Module Current | 8 A max |
| Output Configuration | 16 outputs (single group) |
| Protection | Electronic fuse (self-resetting per channel) |
| Isolation | Field-to-system isolation (no channel isolation) |
| Indicators | 16 channel status LEDs |
| Power Supply | 24 VDC |
| Backplane Current | ~70–80 mA @ 5 VDC |
| Mounting Type | DIN rail |
| Wiring Base | 1794-TB3 / TB3S compatible |
| Enclosure Rating | IP20 |
| Operating Temperature | 0 to 55 °C |
| Storage Temperature | -40 to 85 °C |
| Humidity | 5 to 95% non-condensing |
| Physical Dimensions | ~10.0 × 6.3 × 5.4 cm |
| Net Weight | ~0.10 kg |
FAQ
FAQ
Q1. What is the main function of the 1794-OV16P?
It is used to control 16 DC output devices with built-in electronic protection for each channel.
Q2. What type of outputs does it provide?
It provides 24 VDC sinking (NPN) outputs, switching the negative side of the load.
Q3. What does “P” mean in 1794-OV16P?
“P” stands for Protected, meaning each output includes an electronic fuse (e-fuse) for overload and short-circuit protection.
Q4. How many output channels are available?
It provides 16 digital output channels.
Q5. What is the current capacity?
Each channel supports up to 0.5 A, with a total module capacity of 8 A.
Q6. What happens when a fault occurs?
The affected channel is electronically shut down and automatically recovers after the fault is cleared.
Q7. What is the difference between OV16 and OV16P?
- OV16: standard sinking output
- OV16P: sinking output with electronic protection (e-fuse)
Q8. What applications is it typically used for?
It is used in industrial automation systems where protected DC output control is required, such as machine control, conveyors, and process systems.
