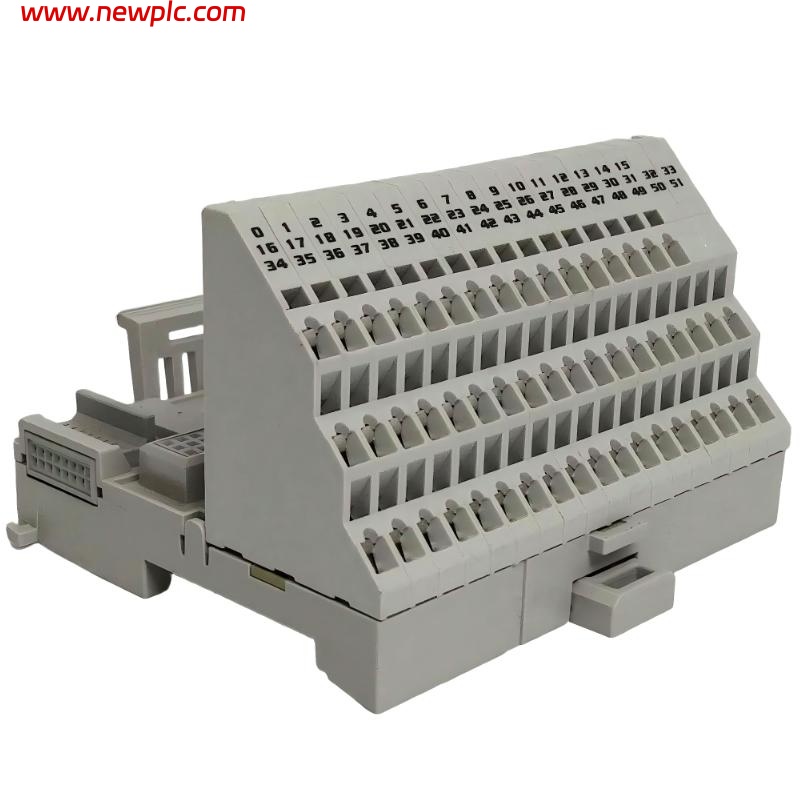

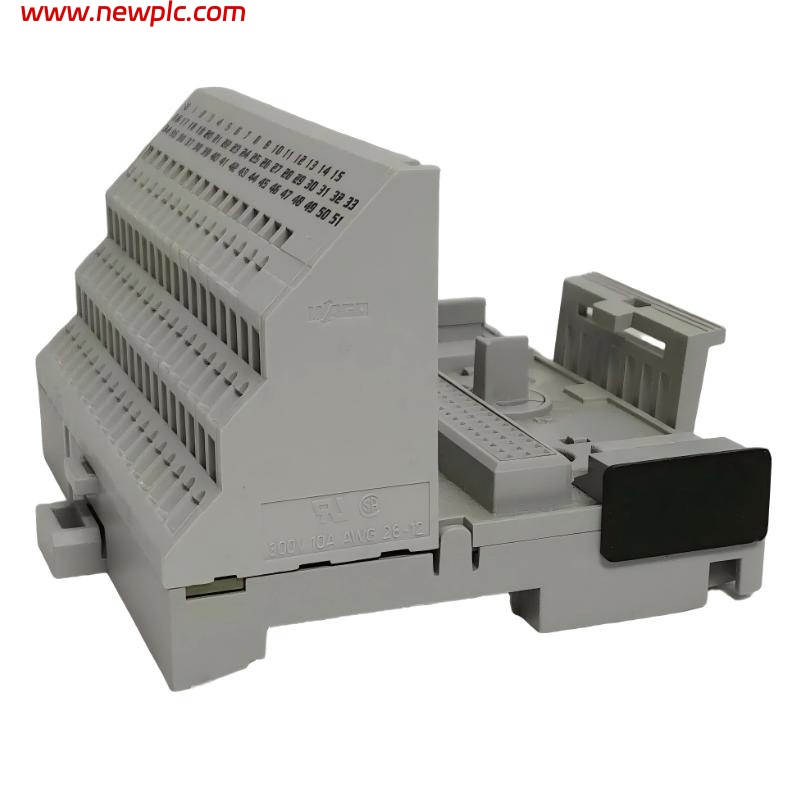

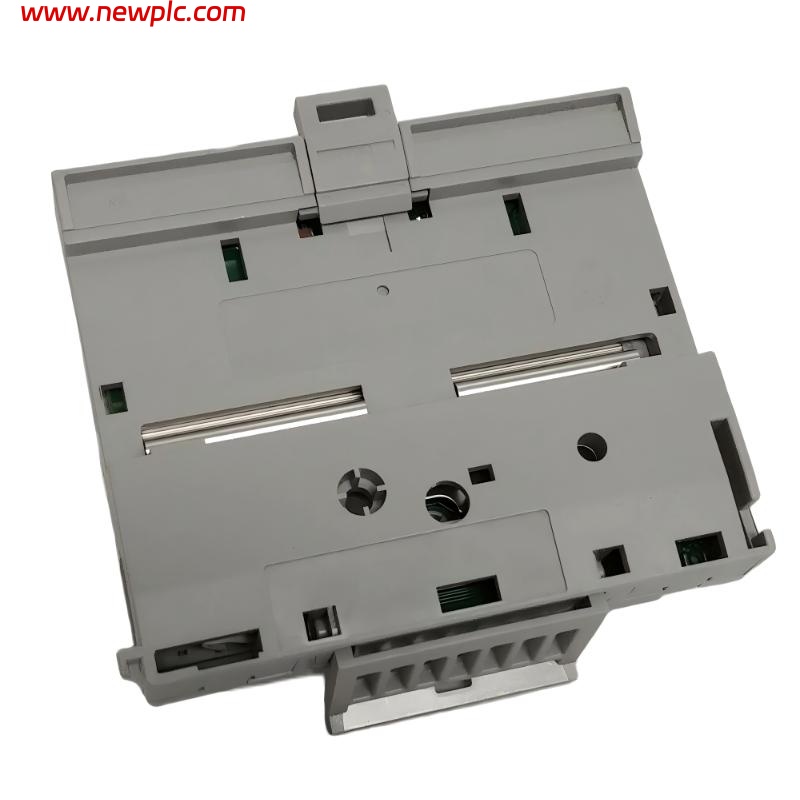

Allen-Bradley 1794-TB32S Terminal Base Unit

FAQ

Q1. What is the main function of 1794-TB32S?
It is a 32-point terminal base used to connect field wiring to FLEX I/O modules and provide backplane communication.

Q2. What type of wiring does it use?
It uses spring-clamp (cage clamp) terminals, allowing fast, vibration-resistant wiring.

Q3. What modules is it used with?
It is used with high-density 32-point FLEX I/O modules, both digital and analog types.

Q4. What is the difference between TB32 and TB32S?

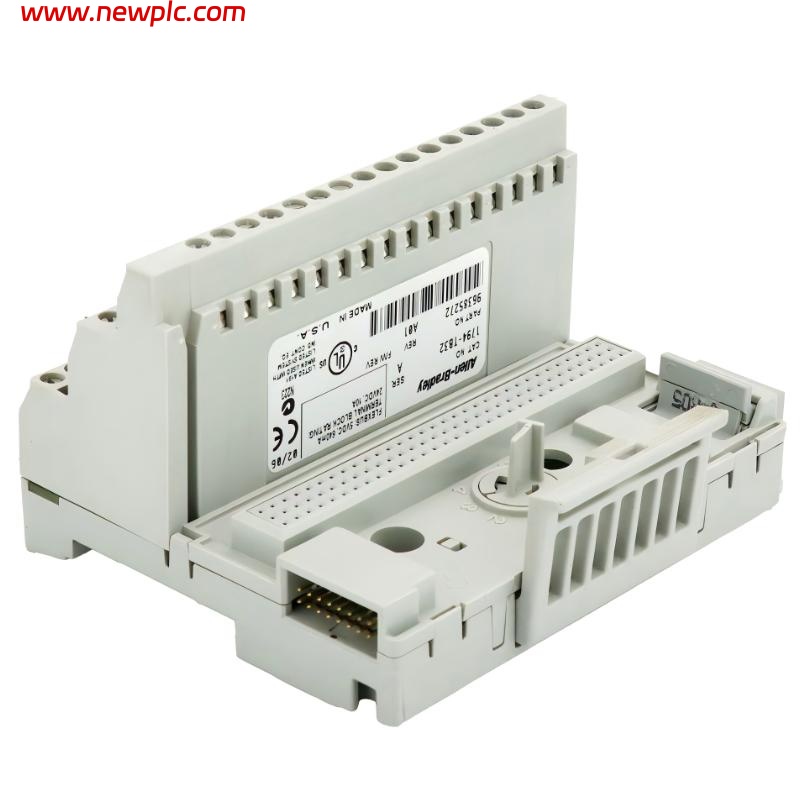

• TB32: screw clamp terminals
• TB32S: spring clamp terminals (faster wiring, better vibration resistance)

Q5. Does it process signals or logic?
No, it only provides wiring and backplane connection—all logic is handled by the I/O module.

Q6. What is FlexBus?
FlexBus is the internal backplane that carries power and communication between the terminal base and module.

Q7. Can modules be replaced while powered?
Yes, FLEX I/O supports RIUP (Removal and Insertion Under Power) depending on system setup.

Q8. What is its operating temperature range?
It operates from -20 °C to 70 °C in industrial environments.
