Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | Bulletin 194R |

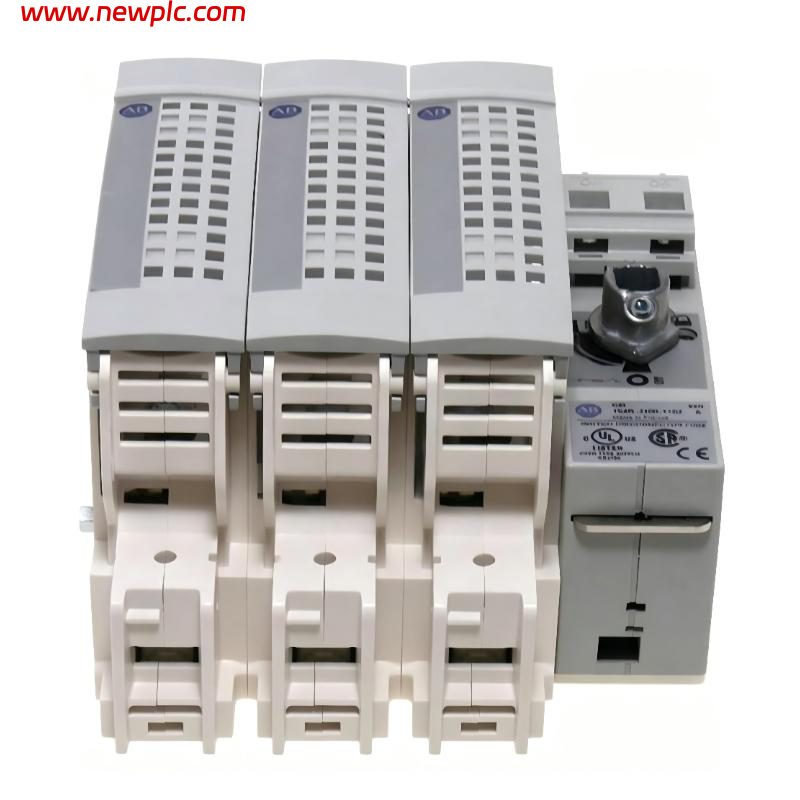

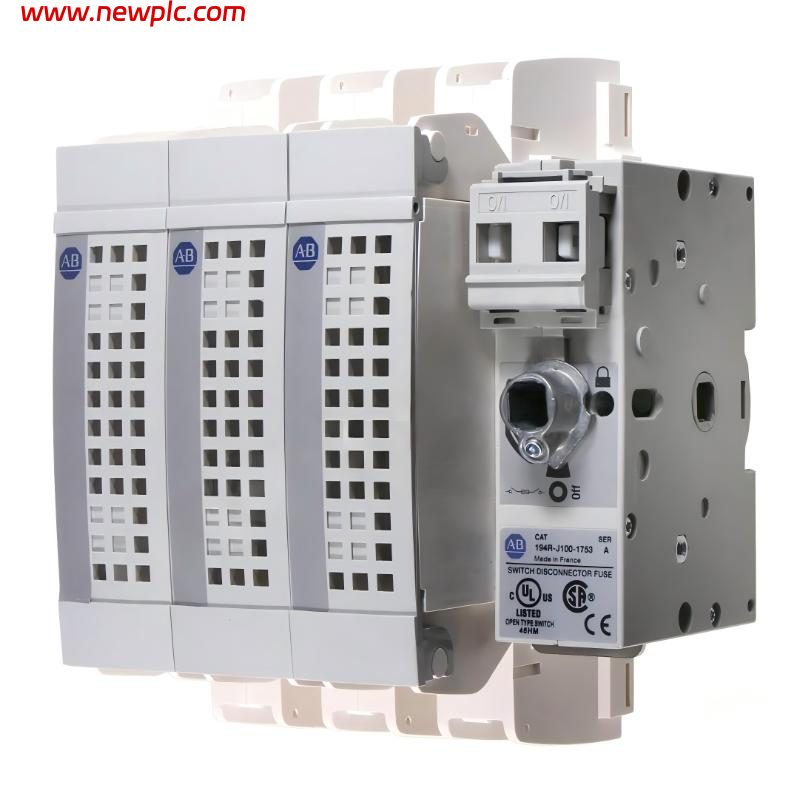

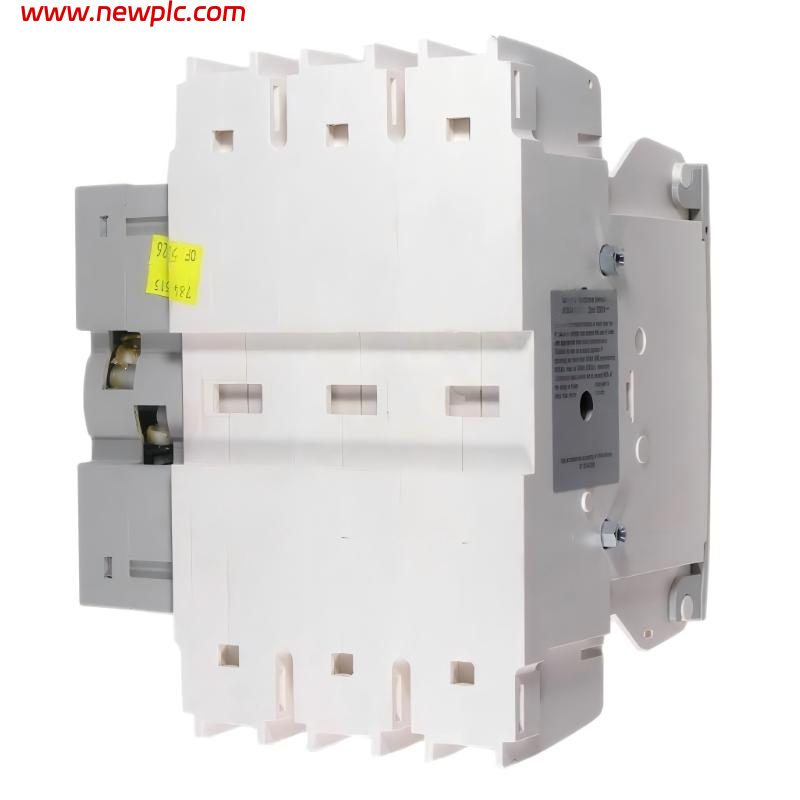

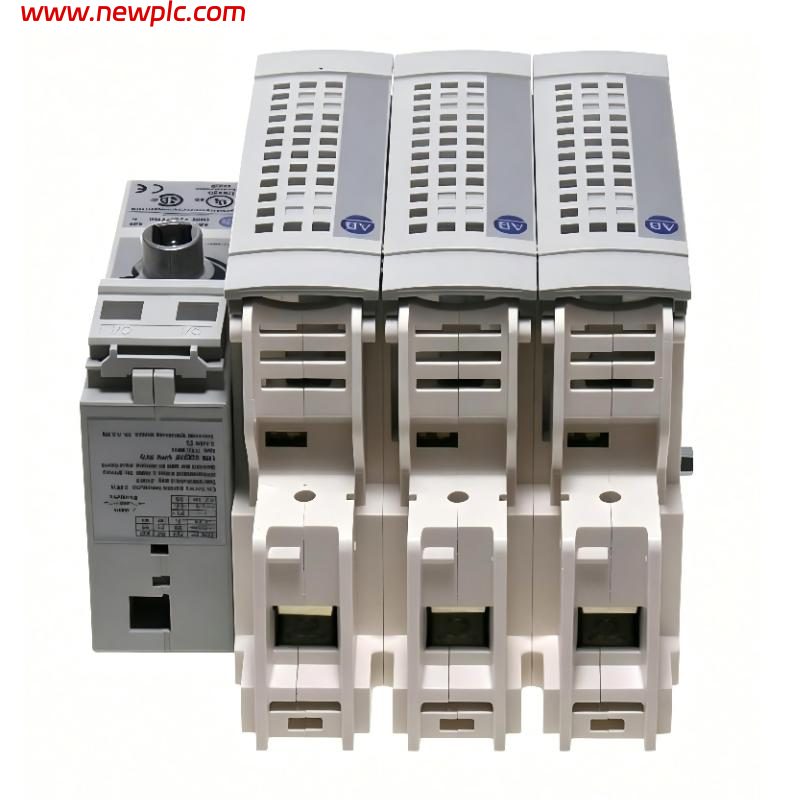

| Model Number | 194R-J100-1753 |
| Product Type | Rotary Disconnect Switch |
| Switch Type | Fused Disconnect Switch |
| Fuse Type | UL Class J / CSA HRCI-J |
| Rated Current | 100 A |
| Number of Poles | 3 Pole |
| Rated Operational Voltage | 600V AC / 250V DC |
| Enclosure Style | Open Type |
| Handle Type | Long Rotary Handle |
| Mounting Type | Front / Panel Mount |
| Connection Type | Bolt / Screw Connection |
| Short-Circuit Current Rating | Up to 200 kA |
| Rated Operational Power @ 400V AC-23 | 57 kW |
| Degree of Protection | IP20 |
| Safety Features | OSHA Padlocking, Door Interlock Support |
| Standards Compliance | IEC 60947-3, UL 98, CSA |
| Certifications | UL, CSA, KC, CE |
| Mechanical Endurance | Approx. 10,000 Operations |
| Approximate Weight | 2.4 kg (5.3 lb) |
| Operating Mechanism | Rotary Operated |
| Compatible Fuse Class | Class J |
| Application Type | Main Disconnect / Feeder Isolation |
| Typical Applications | Industrial Control Panels, Motor Isolation, Power Distribution |
| Lifecycle Status | Active |
FAQ
FAQ
Q1: What is the Allen-Bradley 194R-J100-1753 used for?
A1: The 194R-J100-1753 is a fused rotary disconnect switch used for safely isolating electrical power in industrial control panels and power distribution systems.
Q2: What fuse type is supported by the 194R-J100-1753?
A2: This disconnect switch is designed for UL Class J and CSA HRCI-J fuses.
Q3: What is the current rating of the 194R-J100-1753?
A3: The switch has a continuous current rating of 100 Amps.
Q4: How many poles does the 194R-J100-1753 have?
A4: The unit is a 3-pole disconnect switch suitable for three-phase industrial power systems.
Q5: Is the 194R-J100-1753 enclosed?
A5: No. This model is supplied as an open-type disconnect switch intended for installation inside a suitable electrical enclosure or control panel.
Q6: What safety features are included with the 194R-J100-1753?
A6: The switch includes a touch-safe design, OSHA padlocking capability, and optional door interlock functionality for improved operator safety.
Q7: What standards does the 194R-J100-1753 comply with?
A7: The disconnect switch is designed to meet IEC 60947-3, UL 98, CSA, and related industrial disconnect switch standards.
Q8: What are common applications for the 194R-J100-1753?
A8: Common applications include industrial machinery disconnects, motor isolation, feeder disconnect systems, OEM control panels, and industrial power distribution systems.
