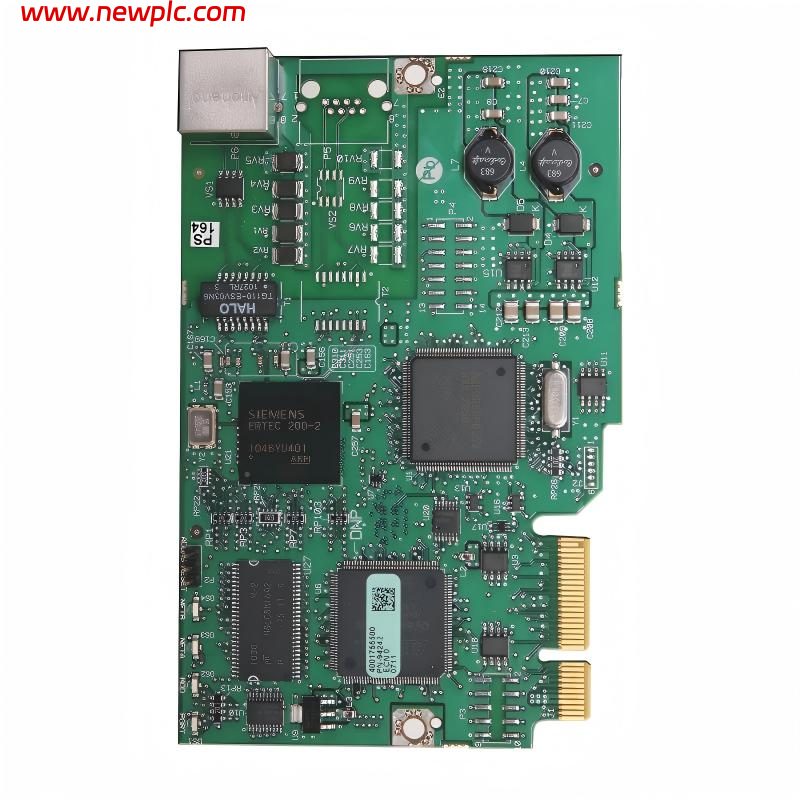

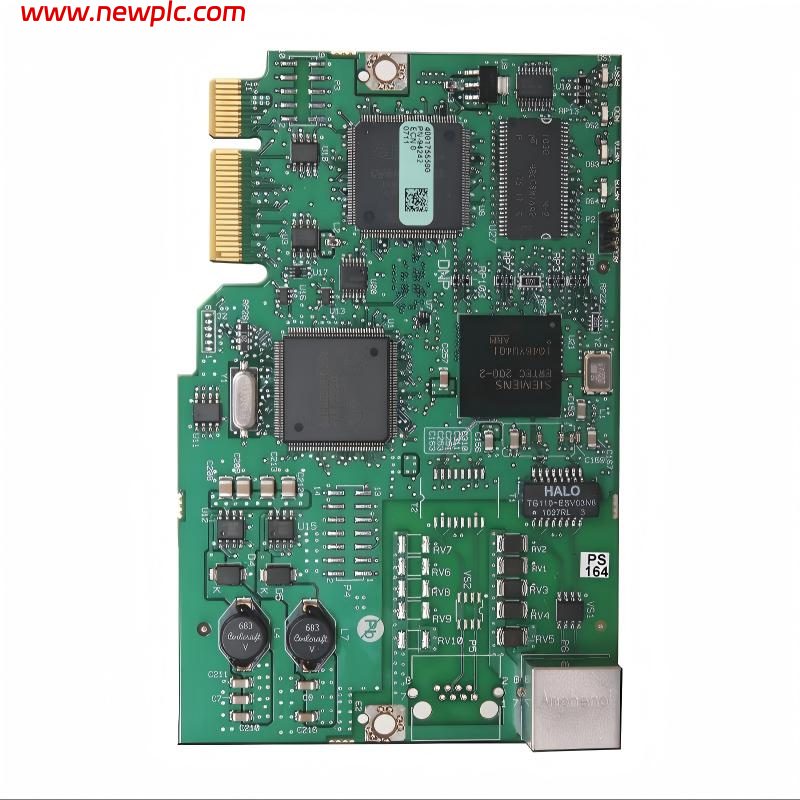

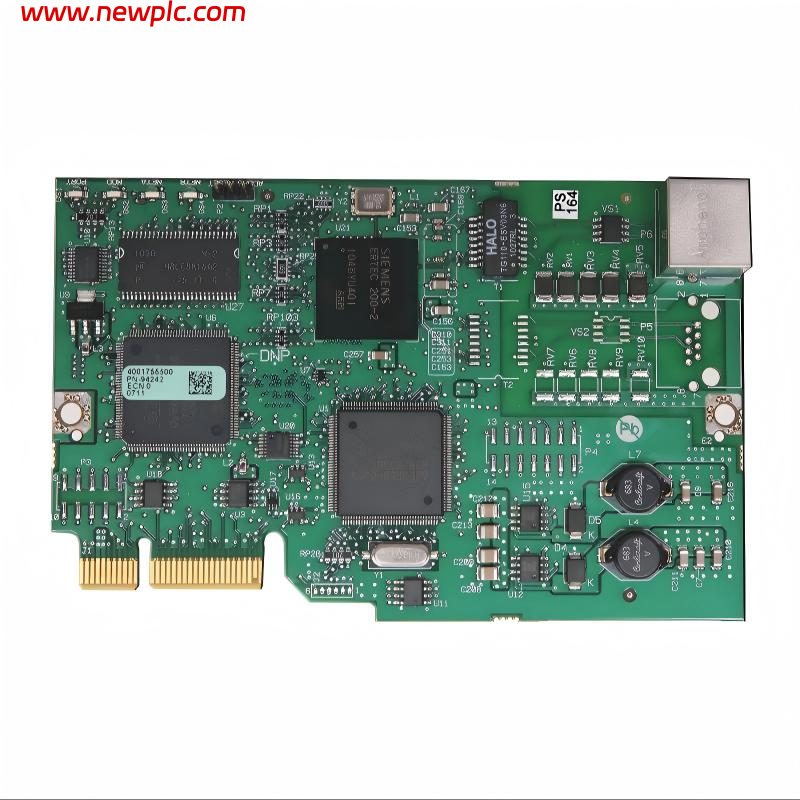

Allen Bradley 20-750-PNET PowerFlex 750-Series PROFINET I/O Option Module

FAQ

Q1: What is the 20-750-PNET?
A: It is an Allen-Bradley PowerFlex 750-Series single-port PROFINET I/O option module.

Q2: Which drives are compatible with the 20-750-PNET?
A: It is designed for PowerFlex 753 and 755 drives, as well as PowerFlex 755T products with the applicable firmware.

Q3: How many PROFINET ports does it have?
A: It has one RJ45 PROFINET port. For a dual-port version, Rockwell offers the 20-750-PNET2P.

Q4: What is the PROFINET communication speed?
A: The PROFINET interface supports 10/100 Mbps.

Q5: How is the option module powered?
A: It receives power from the host PowerFlex drive rather than requiring a separate external power supply. The specified consumption is 250 mA at 14V DC.

Q6: What type of network cable is required?
A: A PROFINET cable with a suitable RJ45 connector is required. Rockwell recommends a field-terminable RJ45 connector with CAT 5e performance.

Q7: What are the dimensions and weight?
A: Approximately 16 × 130 × 83 mm and 0.06 kg (60 g).

Q8: Is the 20-750-PNET still available?
A: Yes. Rockwell Automation currently lists the Series B 20-750-PNET as Active.
