Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Series | PowerFlex Communication Adapter |

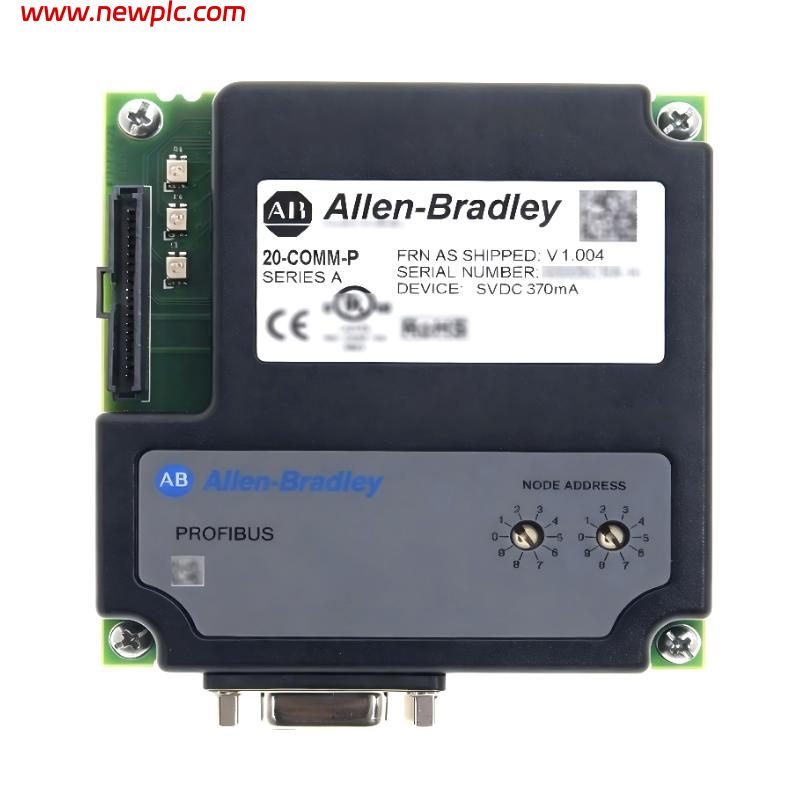

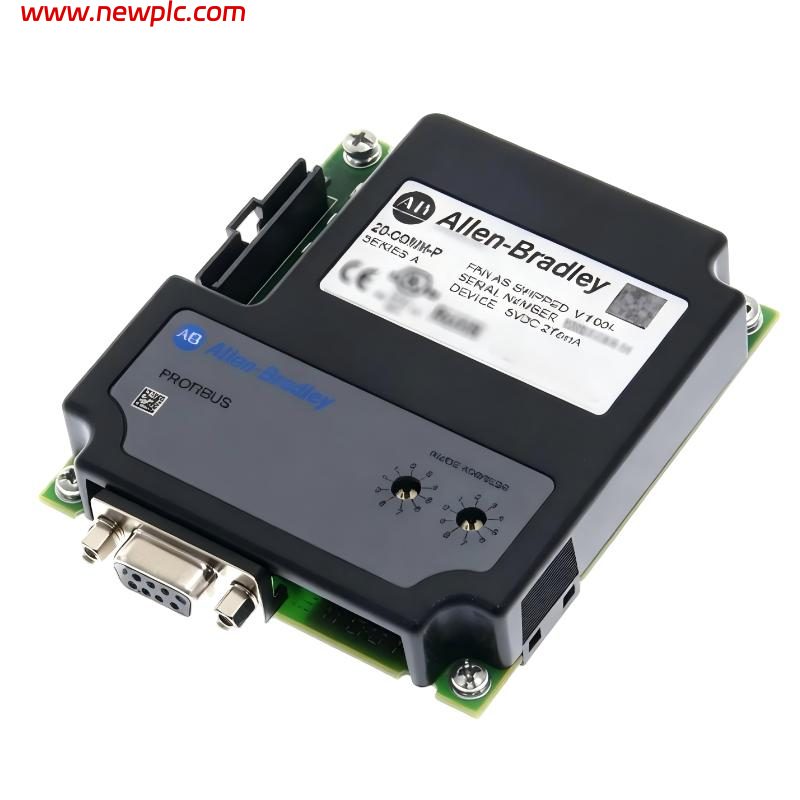

| Model Number | 20-COMM-P |
| Product Type | PROFIBUS DP Communication Adapter |
| Communication Protocol | PROFIBUS DP |
| Compatible Drives | PowerFlex 7-Class Drives |
| Supported Products | PowerFlex 70, 700, 700H, 700S, 753, 755 (application dependent) |
| PROFIBUS Version | PROFIBUS DP-V0 / DP-V1 |
| Network Speed | Up to 12 Mbps |
| Interface Type | DPI / Internal Drive Communication |

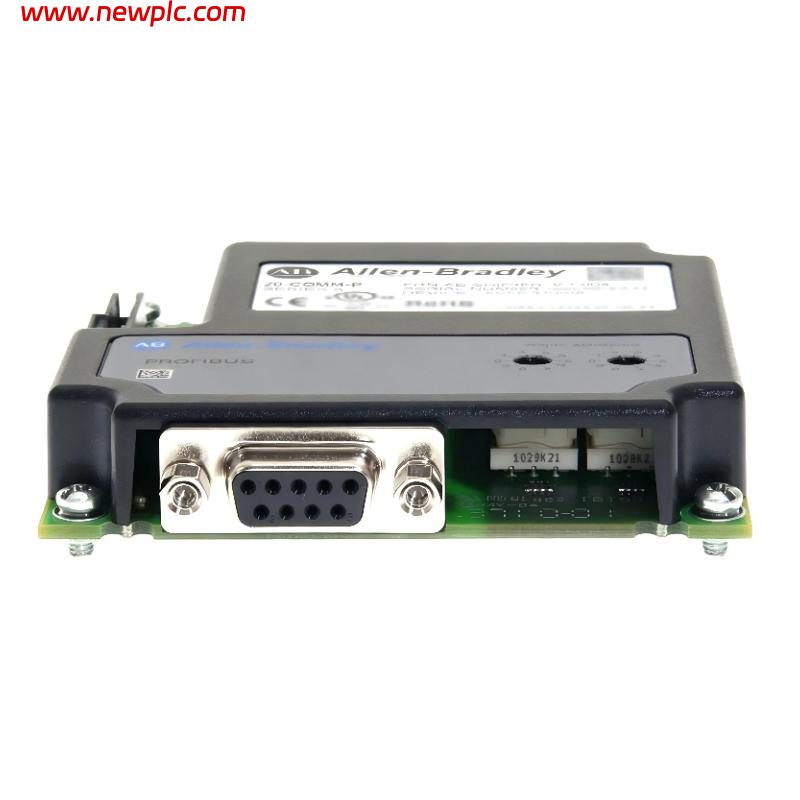

| Connector Type | 9-pin D-sub PROFIBUS Connector |
| Supported Services | Cyclic and Acyclic Data Exchange |
| Configuration Method | Drive Parameters, PROFIBUS Configuration Tools |
| LED Indicators | Module Status, Network Status |
| Power Supply | Powered by Host Drive |
| Mounting Type | Internal / Drive-mounted |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Protection Rating | IP20 |
| Certifications | UL, CE, CSA |
| Lifecycle Status | Discontinued / Legacy Support |
| Actual Dimensions (H × W × D) | Approx. 110 × 75 × 25 mm |
| Actual Weight | Approx. 0.16 kg |
| Typical Applications | PROFIBUS Networking, PLC Integration, Industrial Drive Communication |
FAQ
FAQ
Q1: What is the Allen-Bradley 20-COMM-P used for?
A1: The 20-COMM-P is a PROFIBUS DP communication adapter used to connect compatible PowerFlex drives to PROFIBUS industrial networks.
Q2: Which communication protocol does the 20-COMM-P support?
A2: The adapter supports PROFIBUS DP-V0 and DP-V1 communication protocols.
Q3: Which PowerFlex drives are compatible with the 20-COMM-P?
A3: The adapter is compatible with many Allen-Bradley PowerFlex drives including PowerFlex 70, 700, 700S, 753, and 755 series drives.
Q4: What is the maximum communication speed of the 20-COMM-P?
A4: The module supports PROFIBUS communication speeds up to 12 Mbps.
Q5: How is the 20-COMM-P powered?
A5: The adapter is powered directly by the host drive.
Q6: What connector type is used on the 20-COMM-P?
A6: The module uses a 9-pin D-sub PROFIBUS connector.
Q7: What are the actual dimensions and weight of the 20-COMM-P?
A7: The approximate dimensions are 110 × 75 × 25 mm (H × W × D) and the approximate weight is 0.16 kg.
Q8: What are common applications for the 20-COMM-P?
A8: Common applications include PROFIBUS-based PLC systems, industrial automation networks, conveyor systems, packaging machinery, and distributed motor control systems.
