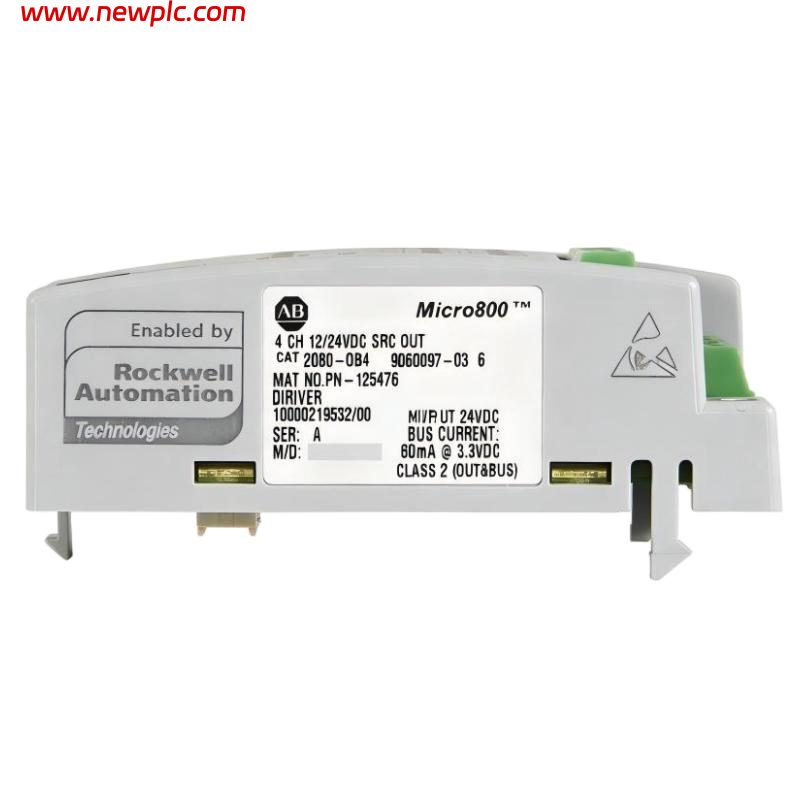

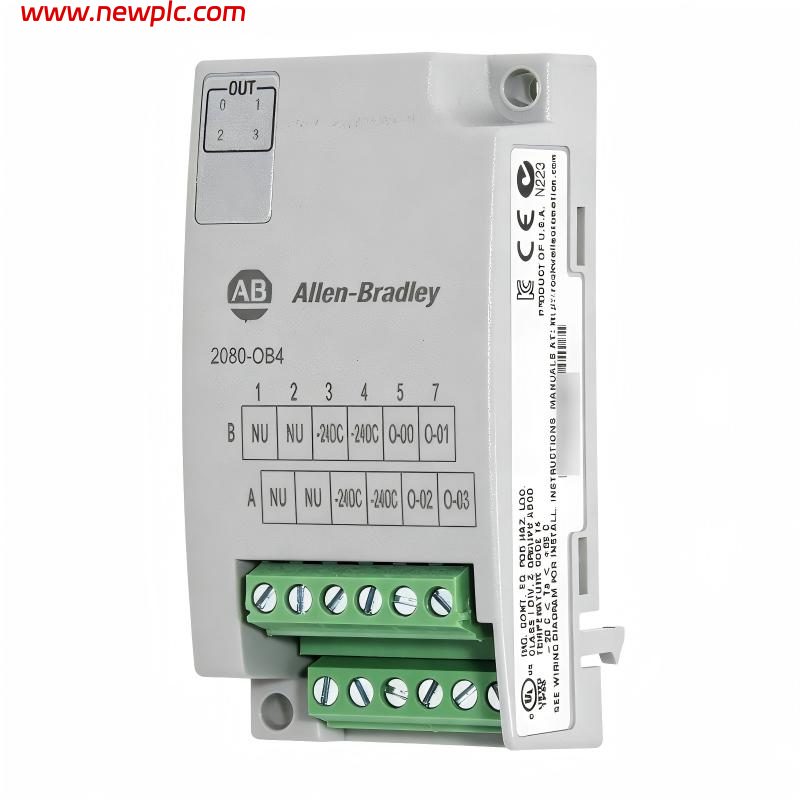

Allen Bradley 2080-OB4 Micro800 4-Point Digital Output Module

FAQ

Q1: What is the Allen-Bradley 2080-OB4?
It is a Micro800 4-point digital source output plug-in module.

Q2: How many outputs does the 2080-OB4 provide?
It provides 4 digital outputs.

Q3: Is the 2080-OB4 a sourcing or sinking output module?
The 2080-OB4 is a sourcing (source) output module. The 2080-OV4 is the corresponding sinking-output version.

Q4: What voltage does the 2080-OB4 support?
It is designed for 12/24V DC systems, with a specified supply range of 10.8–30V DC.

Q5: What is the maximum output current?
Each output supports up to 0.5A steady-state, with up to 2A surge current for at least 2 seconds.

Q6: What type of output technology does it use?
The 2080-OB4 uses transistor outputs.

Q7: What is the operating temperature range?
The operating temperature range is −20 to +65°C.

Q8: What are the dimensions and weight of the 2080-OB4?
The supplied dimensions are 62 × 20 × 31.5 mm, and the supplied weight is 0.023 kg. Rockwell’s technical documentation lists an approximate module weight of 23.13 g, consistent with the supplied 0.023 kg.

2080-OB4 Allen Bradley
