Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Integrated Axis Module (IAM) |

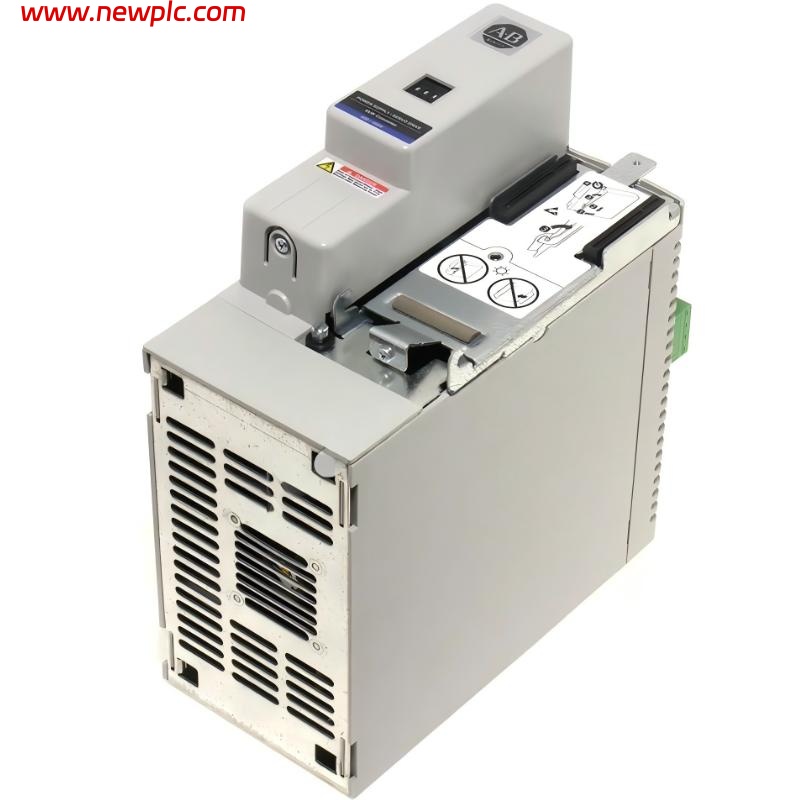

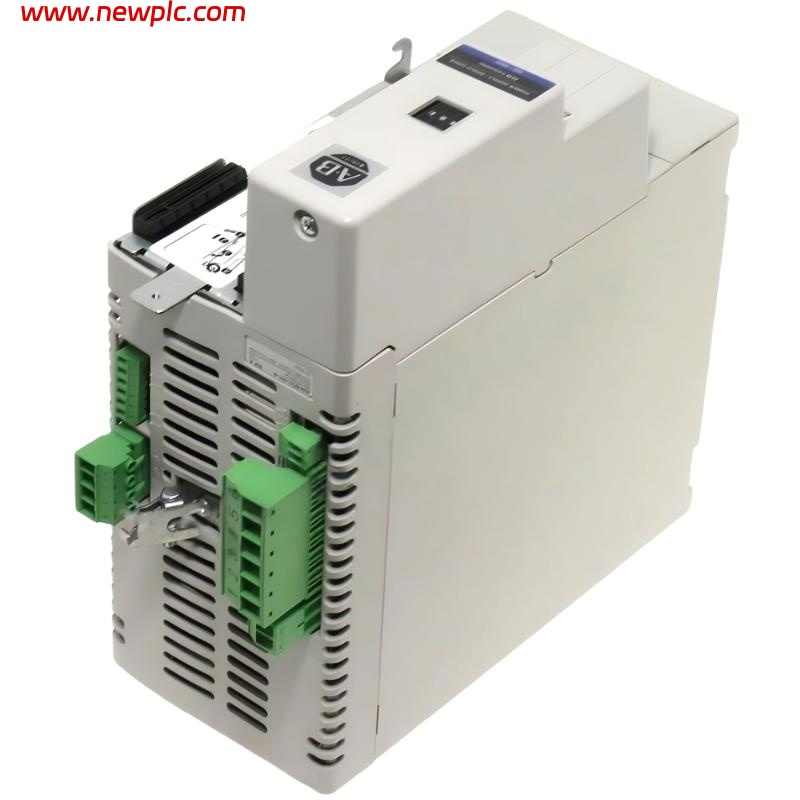

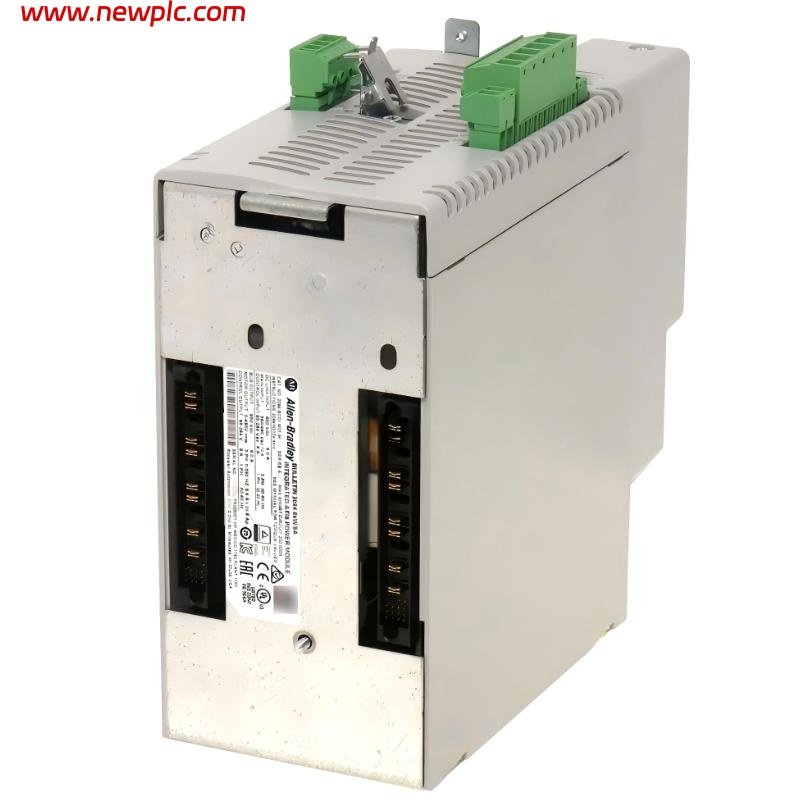

| Model | Allen-Bradley 2094-BC01-M01-M |
| Series | Kinetix 6200 / 6500 |
| Function | Multi-axis servo drive power module with integrated inverter |
| Input Voltage | 360–480 V AC, 3-phase |
| Nominal Voltage | 460 V AC |
| Converter Power Rating | 6 kW |
| Inverter Power Rating | 3.9 kW |
| Output Current | 9 A |
| Continuous Output Current | ~8.6–9 A |
| Bus Capacitance | 4585 µF |
| Safety Feature | Integrated Safe Speed Monitor / Safe Torque Off |
| Communication Interface | SERCOS / EtherNet/IP compatible system |
| Operating Temperature | 0 to 50 °C |
| Mounting Type | Panel-mounted (modular drive system) |
| Certifications | CE, UL, KC, C-TICK |
| Dimensions (H × W × D) | 125 × 302 × 336 mm |
| Weight | 5.67 kg (12.5 lb) |
FAQ
FAQ
Q1. What is the 2094-BC01-M01-M used for?
It is an integrated axis module used in Kinetix 6200/6500 servo systems to provide power and motion control for multi-axis applications.
Q2. What is the power rating of this module?
It features a 6 kW converter and a 3.9 kW inverter section.
Q3. What input voltage does it require?
It operates on 360–480 V AC three-phase, typically 460 V AC.
Q4. Does it include safety features?
Yes, it includes integrated Safe Torque Off (STO) and Safe Speed Monitor functions.
Q5. What is the output current capacity?
It delivers approximately 9 A output current.
Q6. Is this product still available?
No, it has been discontinued as of August 2025.
Q7. What are its physical dimensions?
Its dimensions are 125 × 302 × 336 mm.
Q8. What is the weight of the module?
It weighs approximately 5.67 kg.
