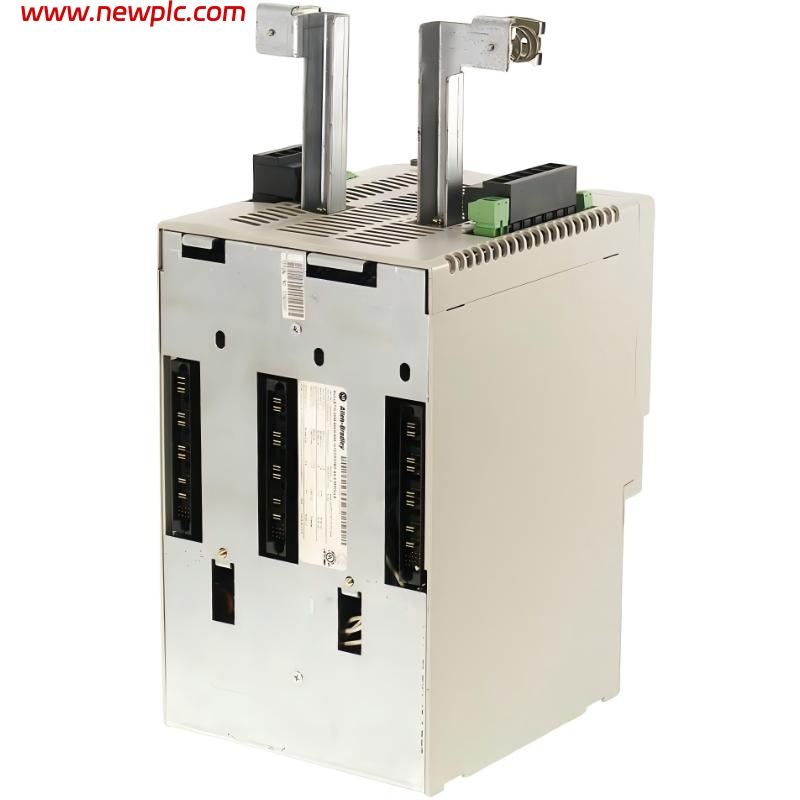

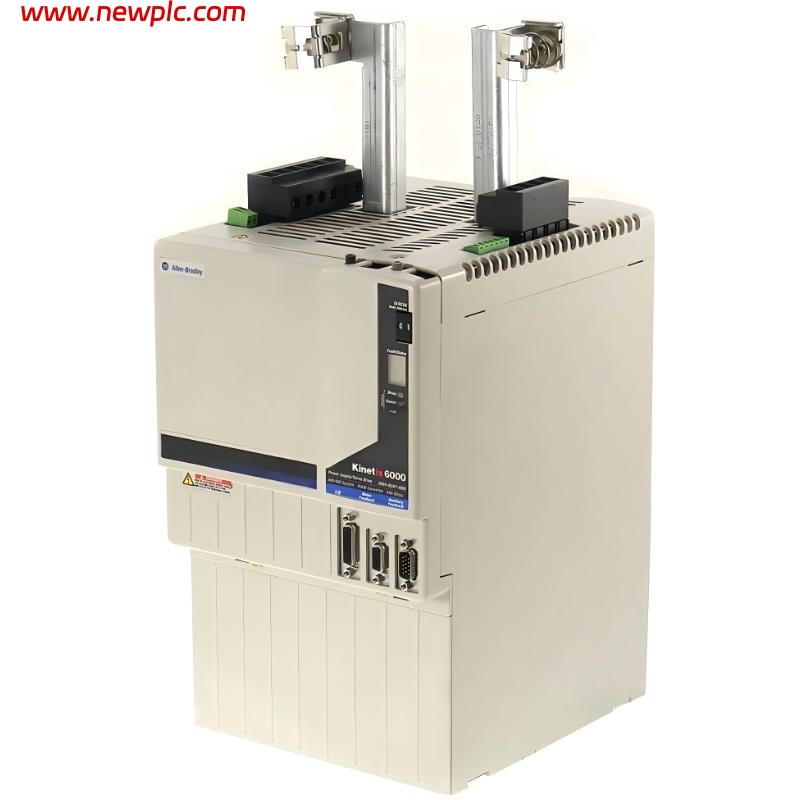

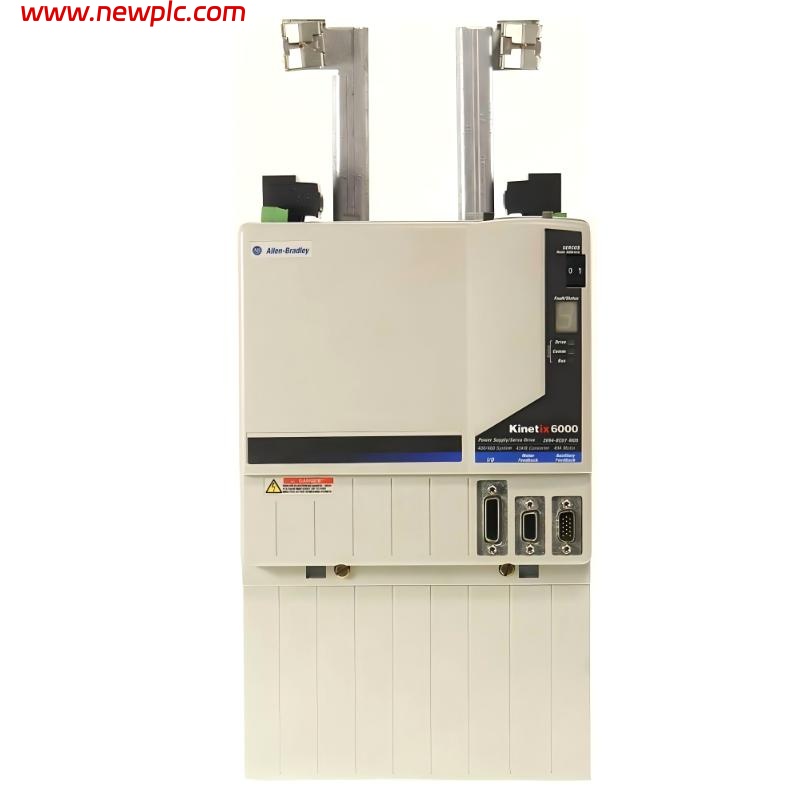

Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Integrated Axis Module (IAM) |
| Model | Allen-Bradley 2094-BC07-M05 |
| Series | Kinetix 6000 / 6200 / 6500 |
| Function | Servo drive module integrating converter and inverter |
| Input Voltage | 324–528 V AC (3-phase), nominal 360–480 V AC |
| Input Frequency | 47–63 Hz |
| Converter Power Rating | 45 kW |
| Inverter Power Rating | 22 kW |
| Continuous Output Current | 34.6–49 A (variant dependent) |
| Peak Output Power | Up to 90–135 kW (series dependent) |
| DC Bus Voltage | 458–747 V DC |
| Efficiency | ~95–97% |
| Internal Shunt | 200 W continuous / ~22.5 kW peak |
| Safety Features | Optional Safe Torque Off (STO) |
| Communication | EtherNet/IP or SERCOS (system dependent) |
| Mounting Type | Panel-mounted (power rail system) |
| Operating Temperature | 0 to 50 °C |
| Dimensions (H × W × D) | 196 × 302 × 426 mm (approx.) |
| Weight | ~9.98–10.4 kg |
| Lifecycle Status | Discontinued (typical for Kinetix 6000 series) |
FAQ
FAQ
Q1. What is the 2094-BC07-M05 used for?
It is an integrated axis module used in Kinetix servo systems to provide both power conversion and motor control.
Q2. What is the power capacity of this module?
It provides a 45 kW converter and a 22 kW inverter for multi-axis motion systems.
Q3. What input voltage does it require?
It operates on 324–528 V AC three-phase, typically 360–480 V AC.
Q4. What is the output current capability?
It delivers approximately 34.6 to 49 A continuous output depending on configuration.
Q5. Does it support safety functions?
Yes, versions are available with Safe Torque Off (STO) for functional safety.
Q6. Which systems is it compatible with?
It is designed for Kinetix 6000, 6200, and 6500 servo drive platforms.
Q7. What are its physical dimensions?
Its size is approximately 196 × 302 × 426 mm.
Q8. What is the weight of the unit?
It weighs around 10 kg.
