Technical Specifications
| Parameter | Specification |
|---|---|

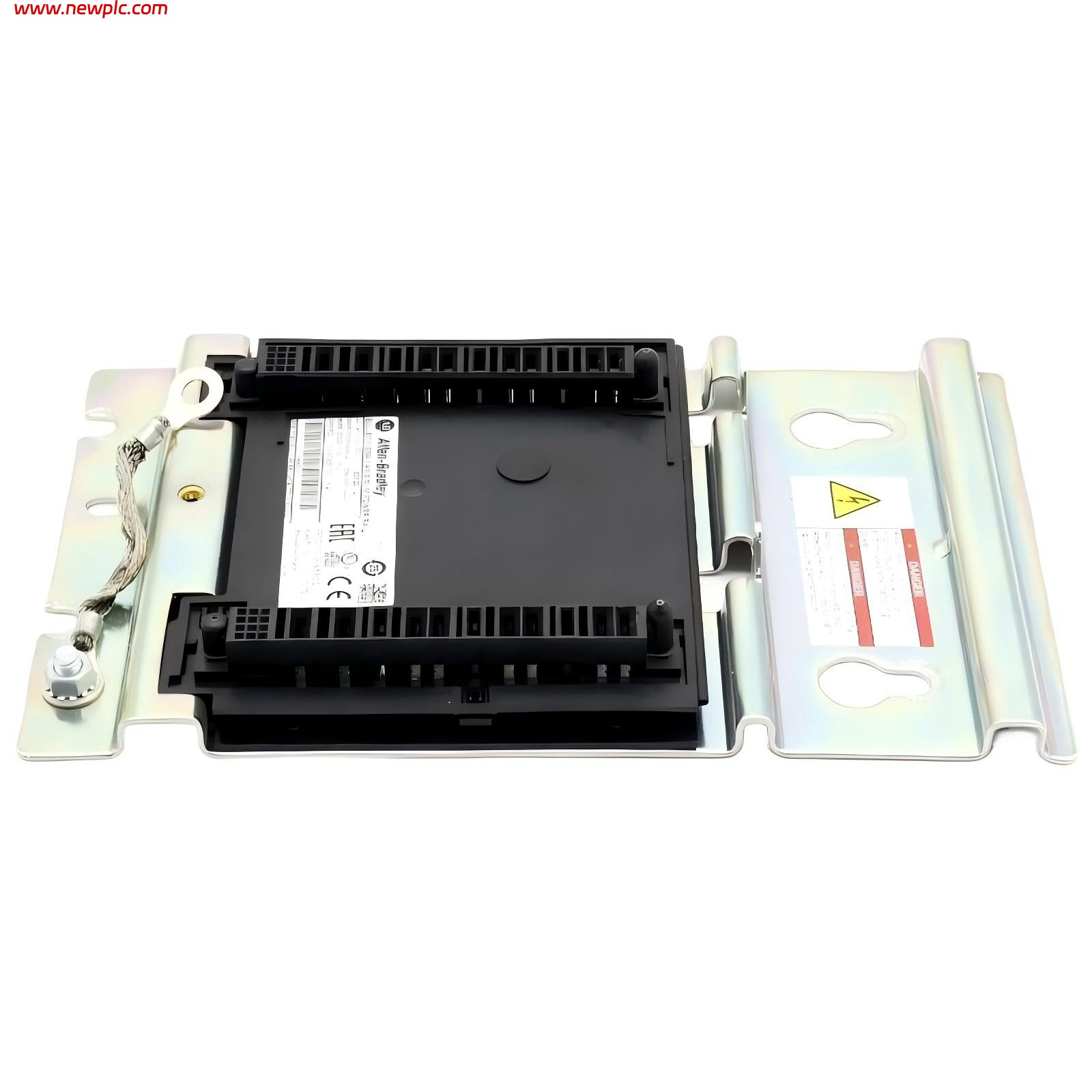

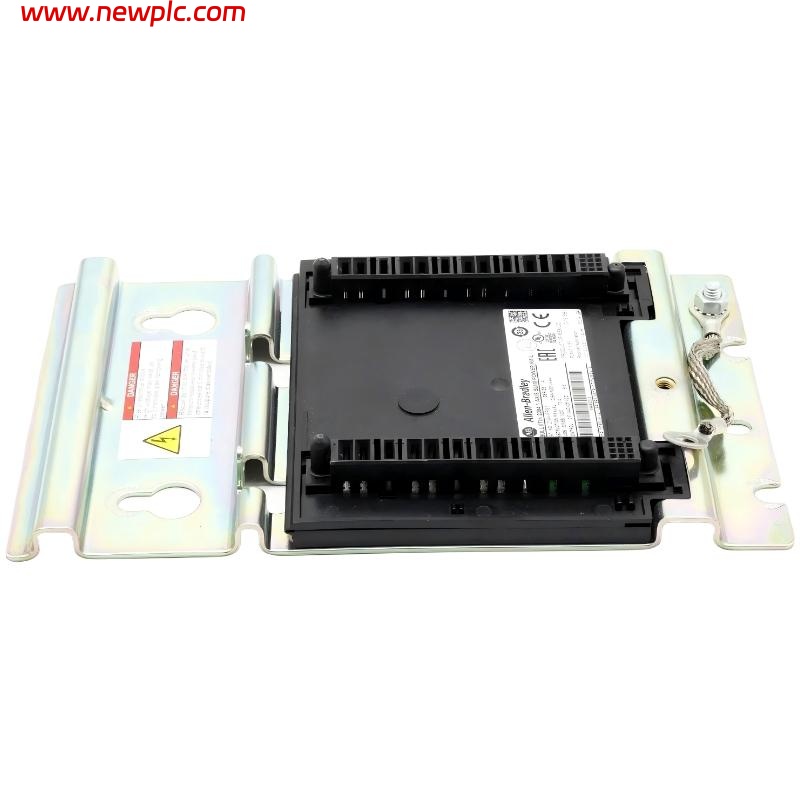

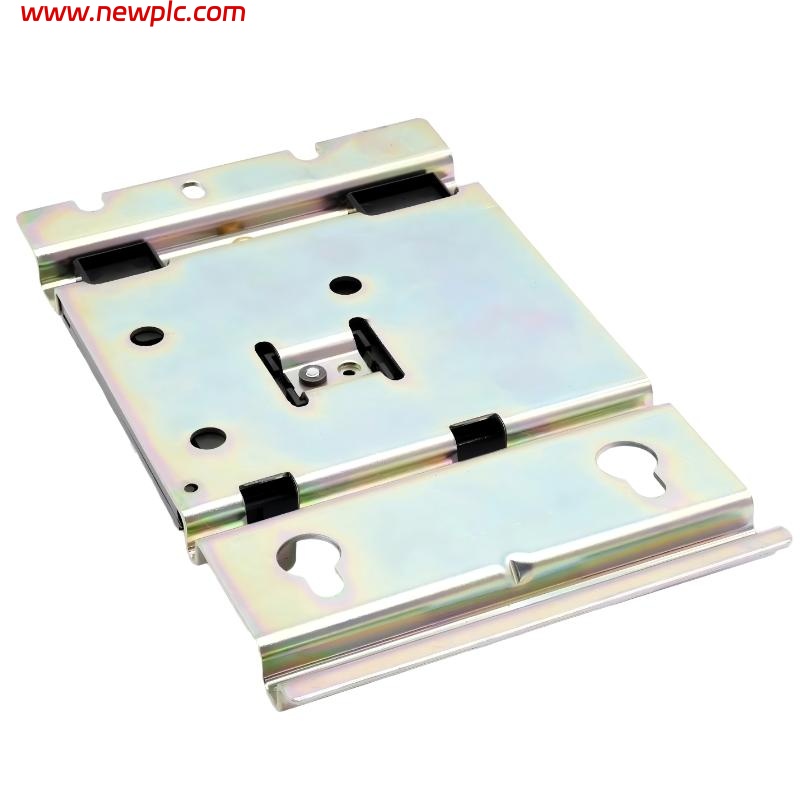

| Product Type | Slim Power Rail |
| Model | Allen-Bradley 2094-PRS1 |
| Series | Kinetix 6000 |
| Function | Mechanical and electrical mounting base for servo drive modules |
| Axis Support | 1 axis (single IAM only) |
| Supported Modules | 1 Integrated Axis Module (IAM), no additional modules |
| Input Voltage Compatibility | 230 V / 460 V drive systems |
| System Compatibility | Kinetix 6000 / 6000M / 6200 / 6500 |
| Mounting Type | Panel mount with mounting bracket |
| Slot Type | Single inverter slot (protected connector pins) |
| Operating Temperature | 0 to 50 °C |
| Humidity | 5–95% non-condensing |
| Certifications | CE, UL, cUL, IEC functional safety |
| Dimensions (H × W × D) | 134.6 × 88.9 × 25.4 mm |
| Weight | ~1.05–1.1 kg |
FAQ
FAQ
Q1. What is the 2094-PRS1 used for?
It is a slim power rail used to mount and connect a single axis module in Kinetix 6000 servo systems.
Q2. How many axes does it support?
It supports only one axis and one Integrated Axis Module (IAM).
Q3. Can additional modules be installed on it?
No, it is a single-slot power rail and does not support expansion modules.
Q4. Which systems is it compatible with?
It is compatible with Kinetix 6000, 6000M, 6200, and 6500 servo drive systems.
Q5. What voltage systems can it be used with?
It supports both 230 V and 460 V drive configurations.
Q6. Is this an active electronic device?
No, it is a passive mounting and power distribution rail.
Q7. Is the product still available?
No, it has been discontinued and reached end-of-life at the end of 2025.
Q8. What are its size and weight?
Its dimensions are approximately 134.6 × 88.9 × 25.4 mm, and it weighs about 1.05–1.1 kg.
