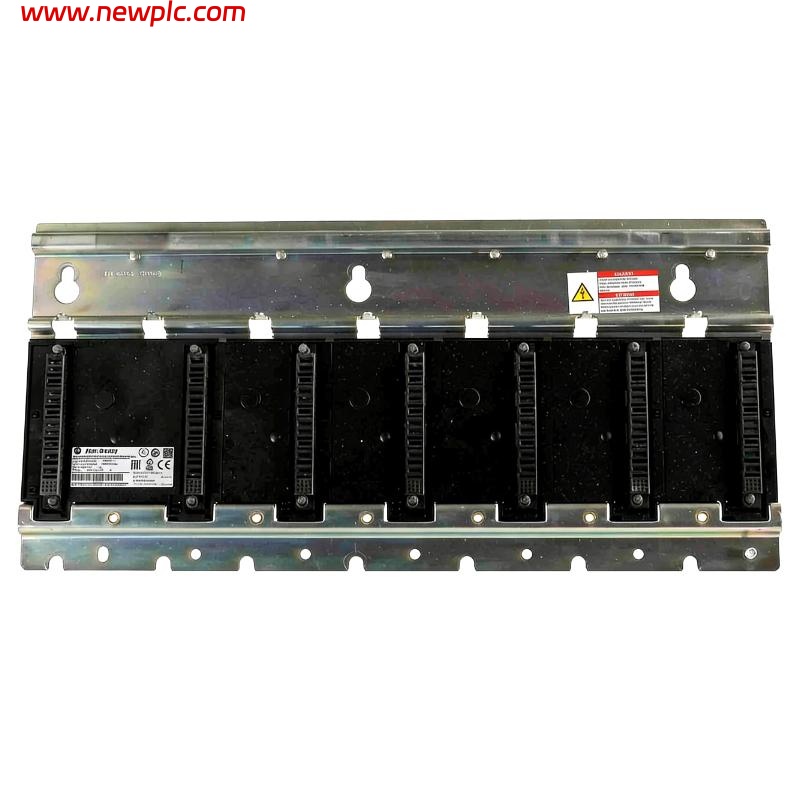

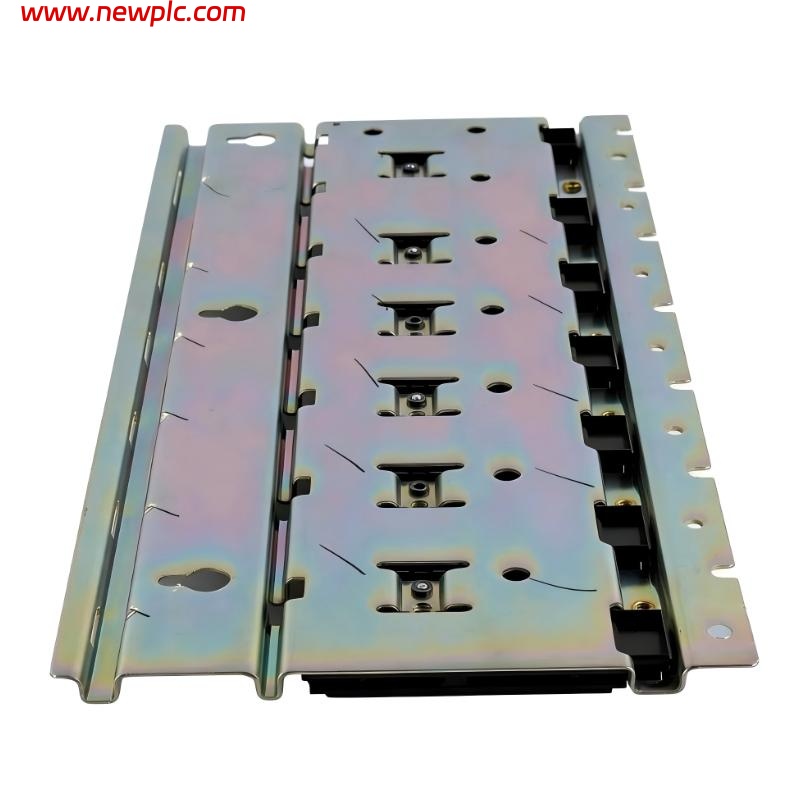

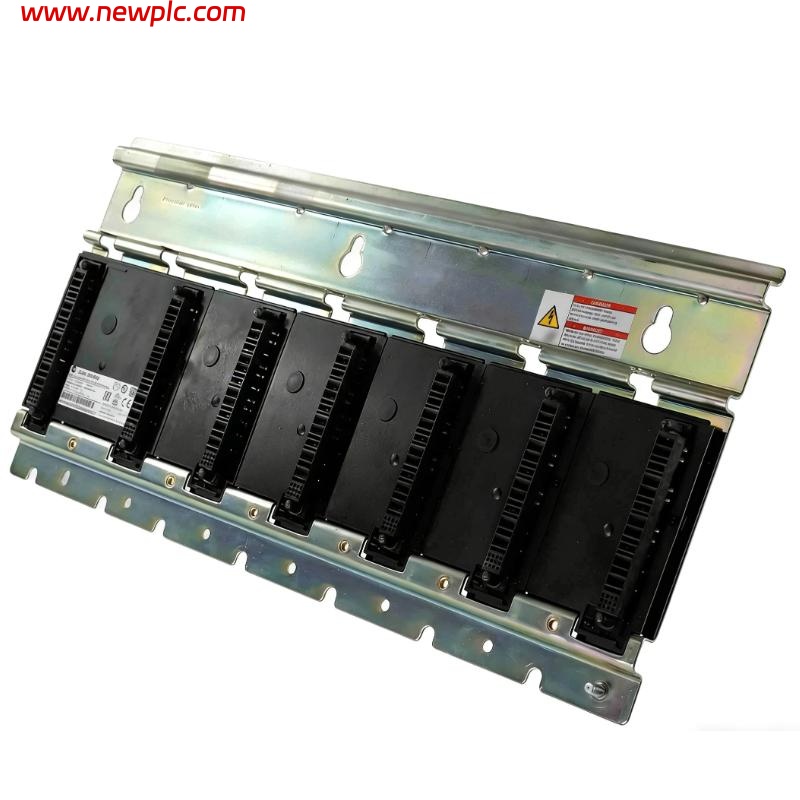

Allen-Bradley 2094-PRS6 Slim Power Rail

FAQ

Q1. What is the 2094-PRS6 used for?
It is a slim power rail used in Kinetix 6000 systems to mount and electrically connect multiple servo drive modules in a modular motion control setup.

Q2. How many axes does it support?
It supports up to 6 axes, including one Integrated Axis Module and up to five additional axis modules.

Q3. Which systems is it compatible with?
It is compatible with Kinetix 6000, 6200, and 6500 servo drive platforms.

Q4. What voltage systems does it support?
It supports both 230 V and 460 V AC drive configurations.

Q5. What is the main advantage of this power rail design?
Its slim modular structure reduces panel space requirements while enabling scalable multi-axis motion control.

Q6. Is it an active electronic device?
No, it is a passive mechanical and electrical mounting structure used for drive integration.

Q7. What is the operating environment requirement?
It is designed for installation inside industrial control cabinets with standard temperature and humidity ranges.

Q8. What are its size and weight?
Its dimensions are approximately 490.2 × 408.9 × 195.6 mm, and it weighs about 3.55 kg.
