Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | AC Variable Frequency Drive |

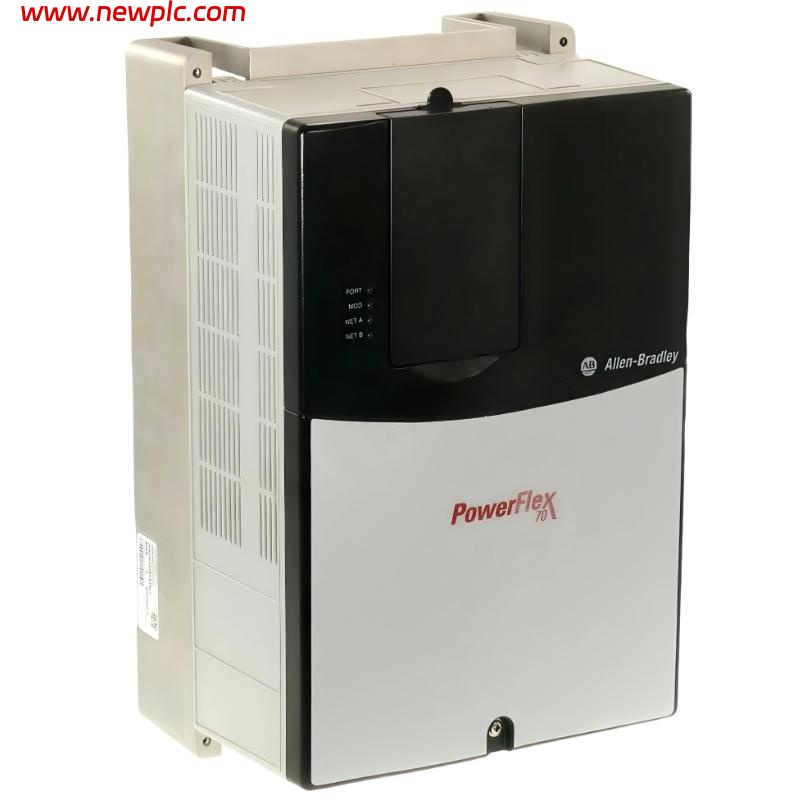

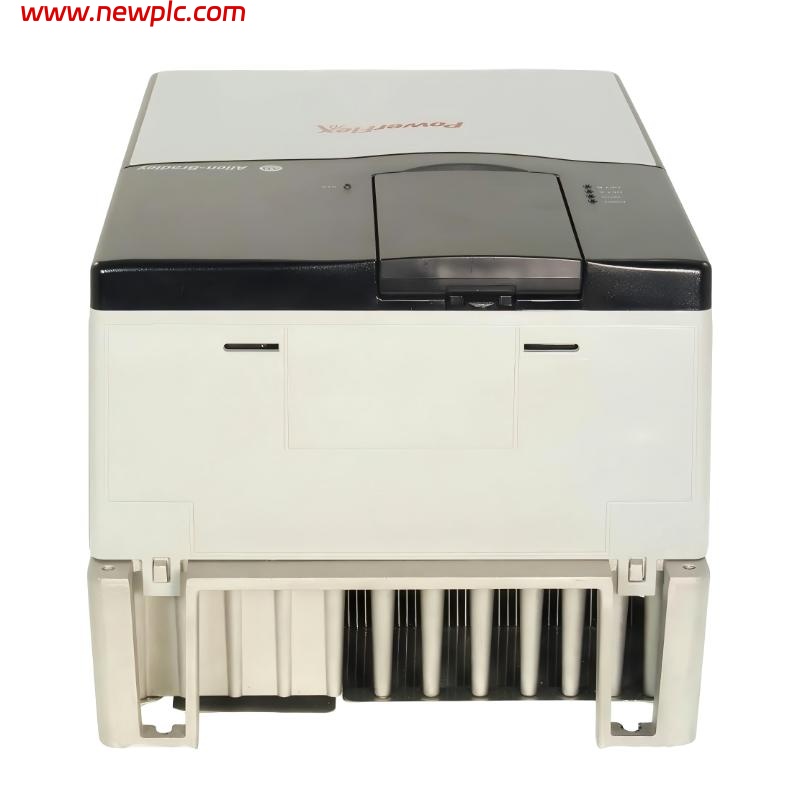

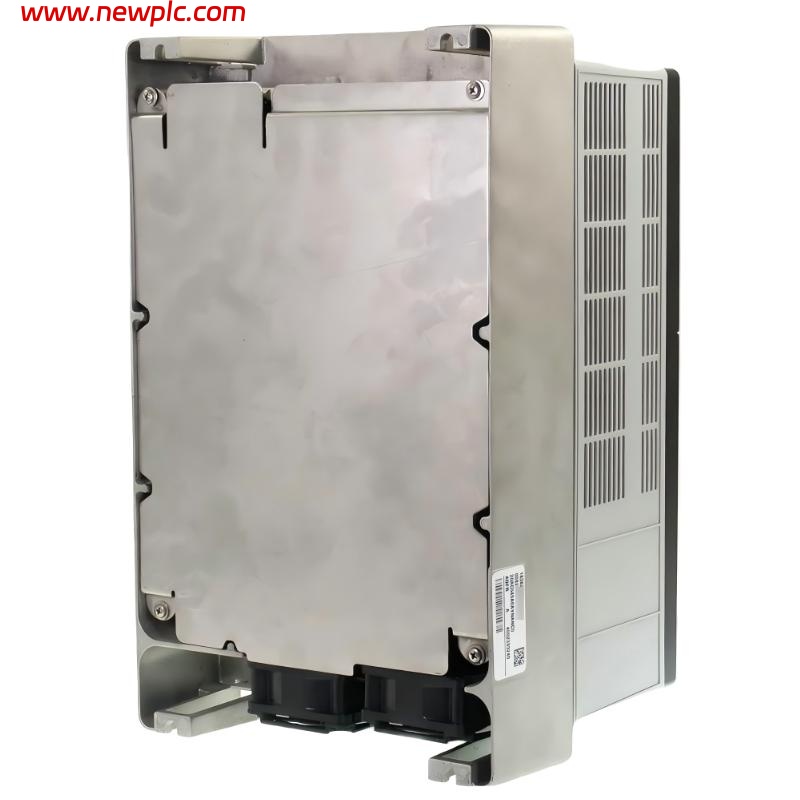

| Model | Allen-Bradley 20AC043A0AYNANC0 |
| Series | PowerFlex 70 |
| Function | Industrial motor speed and torque control drive |
| Input Voltage | 380–480 V AC, 3-phase |
| Input Frequency | 50/60 Hz |
| Output Current | 43 A |
| Output Power | 22 kW (Normal Duty) / 18.5 kW (Heavy Duty) |
| Frame Size | D Frame |
| Control Method | Sensorless Vector Control / Volts per Hertz |
| Communication | EtherNet/IP, DeviceNet, Modbus, PROFIBUS (optional depending on configuration) |
| EMC Filter | Integrated EMC filter with common-mode choke |
| Brake Function | Brake IGBT installed (no internal brake resistor included) |
| Control I/O | 6 digital inputs, 2 digital outputs, 2 analog inputs, 1 analog output |
| Protection Functions | Overcurrent, overvoltage, undervoltage, motor overload, ground fault |
| Stop Modes | Coast, ramp, DC brake, fast stop, S-curve |
| Efficiency | ~97.5% |
| Enclosure Rating | IP20 / NEMA Type 1 (panel mount) |
| Operating Temperature | 0 to 50 °C |
| Dimensions (H × W × D) | 350 × 219.9 × 210.7 mm |
| Weight | 9.13 kg |
FAQ
FAQ
Q1. What is the 20AC043A0AYNANC0 used for?
It is a PowerFlex 70 variable frequency drive used to control AC motor speed and torque in industrial automation systems.
Q2. What is the rated output power of this drive?
It delivers 22 kW in normal duty and 18.5 kW in heavy duty operation.
Q3. What type of input power does it require?
It operates on a 380–480 V AC three-phase supply.
Q4. Does it include braking capability?
Yes, it includes a built-in brake IGBT, but an external brake resistor may be required depending on application.
Q5. What communication protocols are supported?
It supports EtherNet/IP and can support other industrial networks depending on installed options.
Q6. Is this drive suitable for enclosed cabinet installation?
Yes, it is designed for IP20 / NEMA Type 1 panel mounting inside control cabinets.
Q7. What are its physical size and weight?
Its dimensions are 350 × 219.9 × 210.7 mm and it weighs approximately 9.13 kg.
Q8. Is this model still in production?
It is considered a legacy PowerFlex 70 model and is in end-of-life transition status.
