Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | AC Variable Frequency Drive |

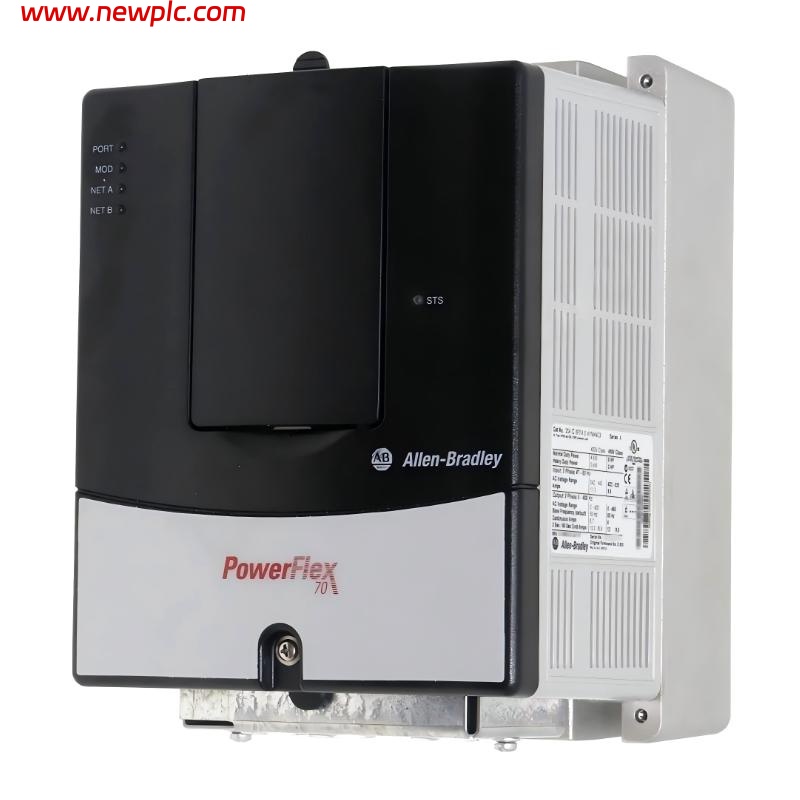

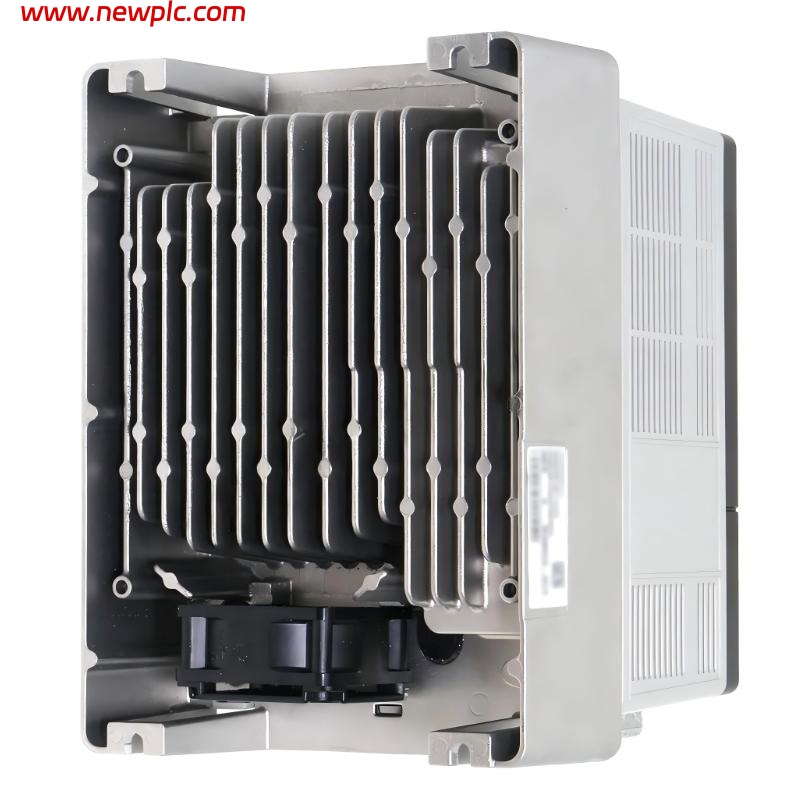

| Model | Allen-Bradley 20AC8P7A0AYNANC0 |
| Series | PowerFlex 70 |
| Function | Industrial motor speed and torque control drive |
| Input Voltage | 380–480 V AC, 3-phase |
| Input Range | 342–528 V AC |
| Input Frequency | 50/60 Hz |
| Output Current | 8.7 A |
| Output Power | 4.0 kW (Normal Duty) / 3.0 kW (Heavy Duty) |
| Frame Size | B Frame |
| Control Method | Sensorless Vector Control / Volts per Hertz |
| Communication | EtherNet/IP, DeviceNet (optional modules) |
| EMC Filter | Integrated EMC filter with common-mode choke |
| Brake Function | Brake IGBT installed (no internal brake resistor) |
| Control I/O | 6 digital inputs, 2 digital outputs, 2 analog inputs, 1 analog output |
| Protection Functions | Overvoltage, undervoltage, overcurrent, motor overload, ground fault |
| Efficiency | ~97.5% |
| Stop Modes | Coast, ramp, DC brake, fast stop, S-curve |
| Enclosure Rating | IP20 / NEMA Type 1 (panel mount) |
| Operating Temperature | 0 to 50 °C |
| Dimensions (H × W × D) | 234.6 × 171.7 × 179.8 mm |
| Weight | ~3.6 kg |
FAQ
FAQ
Q1. What is the 20AC8P7A0AYNANC0 used for?
It is a PowerFlex 70 AC drive used for controlling speed and torque of three-phase AC motors in industrial systems.
Q2. What is its power rating?
It provides 4.0 kW (normal duty) and 3.0 kW (heavy duty) output.
Q3. What type of input power does it require?
It operates on a 380–480 V AC three-phase supply.
Q4. What is the output current capability?
It delivers 8.7 A continuous output current.
Q5. Does it include braking capability?
Yes, it includes a built-in brake IGBT, but no internal brake resistor is provided.
Q6. What communication options are available?
It supports EtherNet/IP and DeviceNet via optional communication modules.
Q7. What are its physical dimensions and weight?
Its dimensions are approximately 234.6 × 171.7 × 179.8 mm and it weighs about 3.6 kg.
Q8. Is this product still available?
No, it is in end-of-life status and will be discontinued after May 30, 2027.
