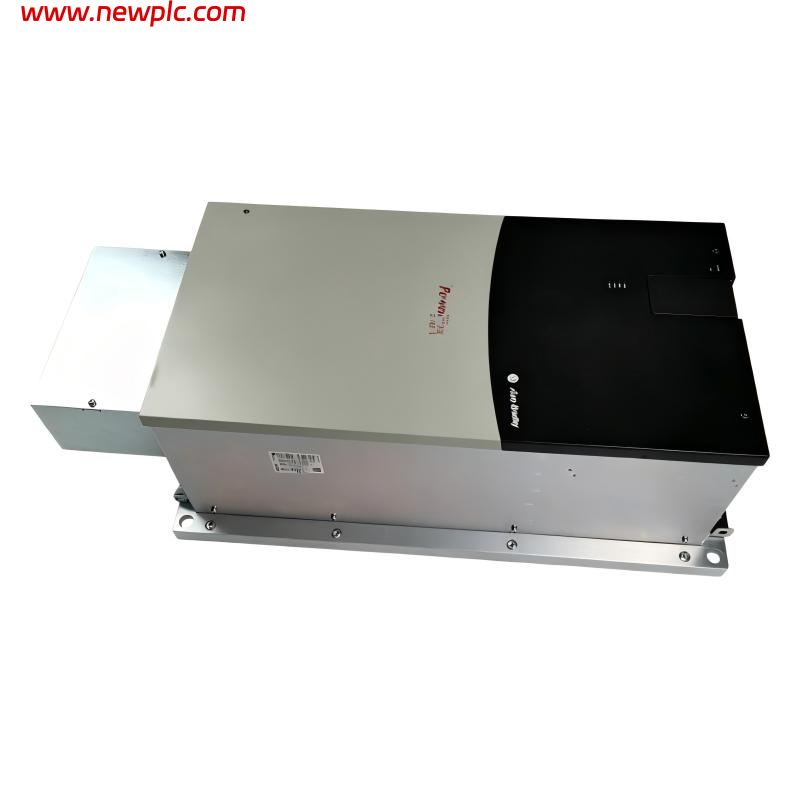

Allen Bradley 20BC205A3NNNANA0 PowerFlex 700 AC Drive

FAQ

Q1: What is the Allen-Bradley 20BC205A3NNNANA0 PowerFlex 700 AC Drive?

A: The Allen-Bradley 20BC205A3NNNANA0 is a PowerFlex 700 AC Drive designed for industrial motor speed and torque control. It supports multiple motor-control methods, including V/Hz, Sensorless Vector, and Vector Control, providing flexibility for different industrial applications. With a rated output current of 205 A, it is intended for demanding motor-control systems where reliable speed regulation and adjustable operating performance are required. Its suitability for a specific installation should be determined by checking the motor nameplate, load requirements, and drive configuration.

Q2: What are the input voltage and output power ratings of the 20BC205A3NNNANA0?

A: The supplied specifications list an input voltage of 400 V AC, three-phase input, an input frequency of 50 Hz, and an input current of 199 A. The rated output current is 205 A, with a normal-duty power rating of 110 kW and a heavy-duty power rating of 90 kW. These duty ratings reflect different load requirements, so the correct rating must be selected according to the motor and application. Always confirm the electrical supply, motor current, and required overload performance before installation.

Q3: What motor-control modes does the 20BC205A3NNNANA0 support?

A: This drive is specified to support V/Hz, Sensorless Vector, and Vector Control. V/Hz control is commonly used for applications requiring straightforward speed adjustment, such as fans and pumps. Sensorless Vector Control can provide improved torque performance without a motor feedback encoder in suitable applications. Vector Control offers more advanced motor-control capabilities, depending on the installed configuration and control setup. The appropriate mode depends on the required speed accuracy, torque response, and operating conditions of the machine.

Q4: What communication and I/O capabilities does the 20BC205A3NNNANA0 provide?

A: The supplied specifications list two analog inputs, two analog outputs, six digital inputs, and three digital outputs, along with standard control I/O using 24 V AC/DC I/O. These connections can support external commands, monitoring signals, and integration with industrial control equipment. The drive is listed as having no internal communication module, while EtherNet/IP, DeviceNet, Modbus, PROFIBUS, CAN, LON, and TCP/IP are listed as supported protocols. Actual network connectivity depends on the appropriate communication hardware, adapter, and configuration; these protocols should not be assumed to be available simultaneously without additional verification.

Q5: Does the 20BC205A3NNNANA0 include a braking resistor or braking IGBT?

A: According to the supplied specifications, this model is listed as having no internal brake resistor and no brake IGBT. Applications that require rapid deceleration, frequent stopping, or regenerative energy management may therefore need an appropriately engineered external braking solution or another compatible configuration. The required braking method depends on motor inertia, stopping time, load behavior, and the drive’s supported options. Verify the hardware configuration and manufacturer’s instructions before designing or installing a braking system.

Q6: What are the dimensions, weight, and enclosure rating of the 20BC205A3NNNANA0?

A: The specified dimensions are 976.3 × 403.9 × 275.5 mm, and the listed weight is 71.44 kg. The drive is identified as Frame 6 with an IP20 / NEMA/UL Type 1 enclosure rating. These details are important when planning cabinet space, mounting, ventilation, and equipment handling. Ensure that the installation provides sufficient clearance and suitable environmental protection. Before lifting or mounting the unit, use appropriate handling equipment and follow the manufacturer’s installation instructions.

Q7: What are the operating environment and cooling requirements for the 20BC205A3NNNANA0?

A: The supplied specifications list forced-air cooling, an operating temperature range of 0–50 °C depending on configuration, and relative humidity of 5–95% non-condensing. Adequate airflow is essential to remove heat generated during operation and help maintain reliable performance. The drive should be installed in a suitable environment with ventilation openings kept clear and ambient conditions within the permitted limits. High temperatures, dust accumulation, condensation, or restricted airflow can affect drive performance and service life.

Q8: What should buyers check before purchasing the Allen-Bradley 20BC205A3NNNANA0?

A: Buyers should verify the complete catalog number, input and output ratings, duty rating, control options, communication requirements, enclosure type, dimensions, and weight. It is also important to confirm that the selected drive matches the motor and the existing control system. The product is listed as New & In Stock, with payment methods including T/T and Western Union. Before ordering, confirm current availability, product condition, warranty coverage, delivery arrangements, and included accessories with the supplier.
