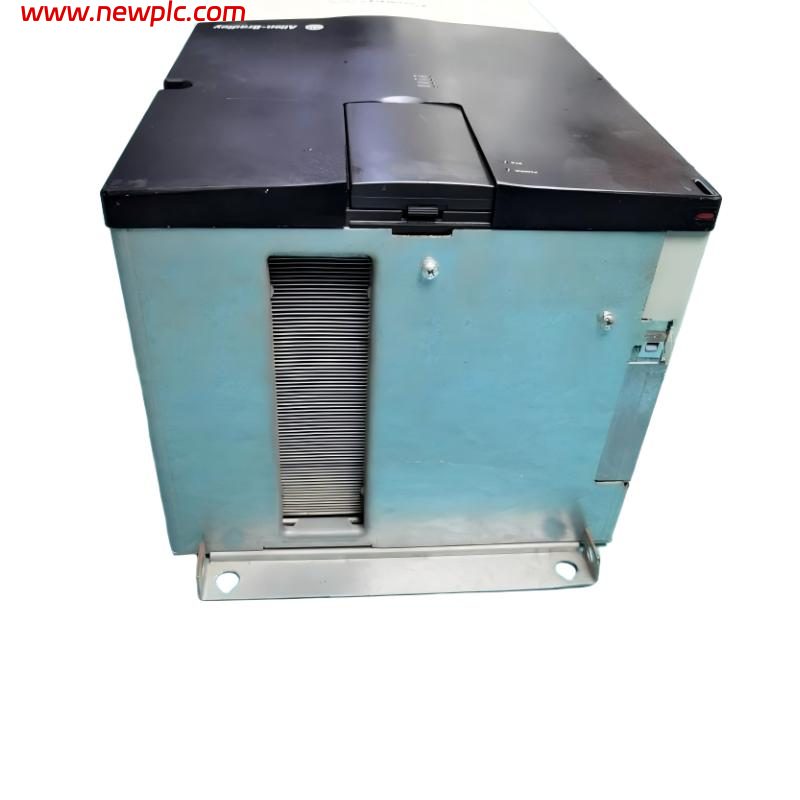

Allen Bradley 20BC260A3ANNADC0 PowerFlex 700

FAQ

Q1: What is the Allen-Bradley 20BC260A3ANNADC0 PowerFlex 700 AC Drive?

A: The Allen-Bradley 20BC260A3ANNADC0 is a PowerFlex 700 AC drive designed to regulate the speed and torque of three-phase AC motors in industrial automation systems. It supports V/Hz, Sensorless Vector, and Vector Control, making it suitable for applications that require adjustable motor speed and controlled acceleration and deceleration. With a continuous output current of 260 A, it can support demanding motor-driven equipment when correctly sized for the motor and load.

Q2: What are the voltage and power ratings of this drive?

A: The drive operates from a three-phase supply rated at 400 VAC, with an input voltage range of 380–480 VAC and a specified input frequency of 50 Hz. Its input current is 255 A at 400 VAC, and its input power rating is 177 kVA. The continuous output current is 260 A, with a power rating of 132 kW for normal-duty operation and 110 kW for heavy-duty operation. For heavy-duty applications, the specified output current can reach 308 A for one minute and 410 A for three seconds. Always confirm the motor nameplate current and actual load requirements before selecting the drive.

Q3: Which motor control modes are supported, and how accurately can the drive regulate speed?

A: The 20BC260A3ANNADC0 supports V/Hz control, Sensorless Vector Control, and Vector Control. V/Hz is suitable for many general-purpose speed-control applications, while vector-based modes can provide improved motor torque and speed performance. The specified speed regulation is 0.1% of base speed in Vector Control mode without feedback, and torque regulation is ±5% without feedback. The drive’s frequency accuracy is specified as ±0.01% of the set output frequency when using a digital input. Actual results depend on motor tuning, load conditions, and drive configuration.

Q4: What communication interface does the 20BC260A3ANNADC0 include?

A: This model is specified with an internal DeviceNet DPI communication module and uses the DeviceNet protocol. It can be integrated into a compatible industrial control network to exchange supported control commands, operating status, and diagnostic information with a PLC or other automation equipment. Before ordering, verify that the existing control system supports DeviceNet and that the required cabling, connectors, network configuration, and controller interface are available. Do not assume that the DeviceNet-equipped version is interchangeable with variants that use ControlNet or EtherNet/IP modules.

Q5: Does this drive have built-in braking hardware?

A: No. The specifications list neither a built-in brake IGBT nor an internal braking resistor. The drive supports programmable stop modes, including Coast, DC Brake, Fast Brake, Ramp-to-Hold, and S-Curve, but these functions do not mean that a complete dynamic braking system is included. If the application involves frequent rapid stops, high-inertia loads, or substantial regenerative energy, check whether an external braking solution is required and confirm compatibility with the drive before installation.

Q6: What I/O and protection features are provided?

A: The drive provides 2 analog inputs, 2 analog outputs, 6 digital inputs, and 3 digital outputs, with 24V DC control I/O. Its listed protection and control features include Class 10 motor overload protection, configurable acceleration and deceleration times from 0 to 3600 seconds, and an overcurrent limit of 220–300% of rated current depending on the drive rating. It also includes an EMC filter with a common-mode choke and conformal coating. Correct wiring, grounding, motor protection coordination, and parameter configuration remain essential for safe operation.

Q7: What are the dimensions, weight, and installation requirements?

A: The 20BC260A3ANNADC0 measures 976.3 × 403.9 × 275.5 mm and weighs 71.44 kg. Its enclosure is rated IP20 / NEMA/UL Type 1, so it should be installed in a suitable environment with appropriate protection from dust, moisture, and accidental contact. The specified operating temperature is 0–50 °C, relative humidity is 5–95% non-condensing, and installation altitude is up to 1000 m without derating. Allow sufficient cabinet clearance and ventilation, and ensure that the mounting structure can support the drive’s weight.

Q8: What should buyers verify before purchasing this model?

A: Buyers should confirm the complete model number, supply voltage, motor current and power, duty rating, control I/O requirements, and communication compatibility. In particular, the 20BC260A3ANNADC0 is specified with a DeviceNet DPI module, so the communication interface should match the intended automation system. Also check whether the application requires external braking hardware, whether the installation space can accommodate the drive’s dimensions, and whether the site’s environmental conditions meet the specifications. The product is listed as new and in stock, with T/T and Western Union accepted as payment methods. Confirm availability, warranty coverage, delivery arrangements, and included accessories with the supplier before placing an order.
