Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Model | 20BC481U3ANNNNC0 |
| Product Series | PowerFlex 700 |
| Product Type | AC Drive / Variable Frequency Drive |
| Input Voltage | 400 VAC |
| Input Voltage Range | 380–480 VAC |
| Phase | 3-Phase Input / 3-Phase Output |
| Current Rating | 481 A |
| Power Rating | 280 kW Normal Duty / 240 kW Heavy Duty |
| Frame Size | Frame 8 |
| Mounting Configuration | Roll-In |
| Enclosure | IP00 |
| Operator Interface | LCD Display with Full Numeric Keypad |
| Control Method | Vector Control |
| Control I/O | 24 VDC I/O |
| Communication | No Communication Module |
| Feedback | No Feedback |
| Brake IGBT | None |
| Drive-Mounted Brake Resistor | None |
| EMC Filter | Without CE-Compliant Filter |
| Maximum Output Frequency | 420 Hz |
| Dimensions (L × W × H) | 2283.7 × 254.6 × 757.8 mm |
| Weight | 384 kg |
| Country of Origin | USA |
FAQ
FAQ
Q1: What is the 20BC481U3ANNNNC0?

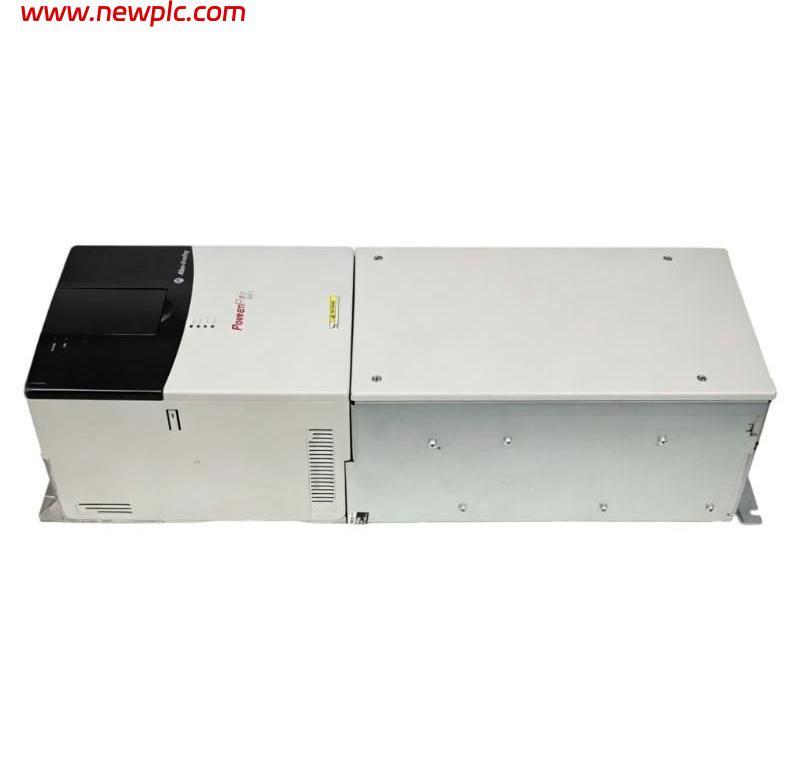

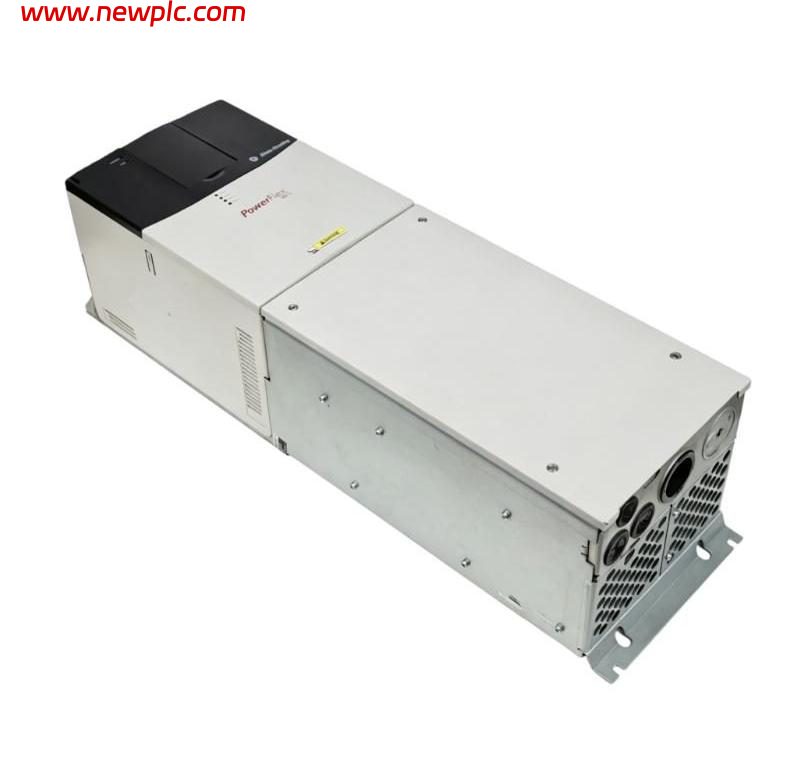

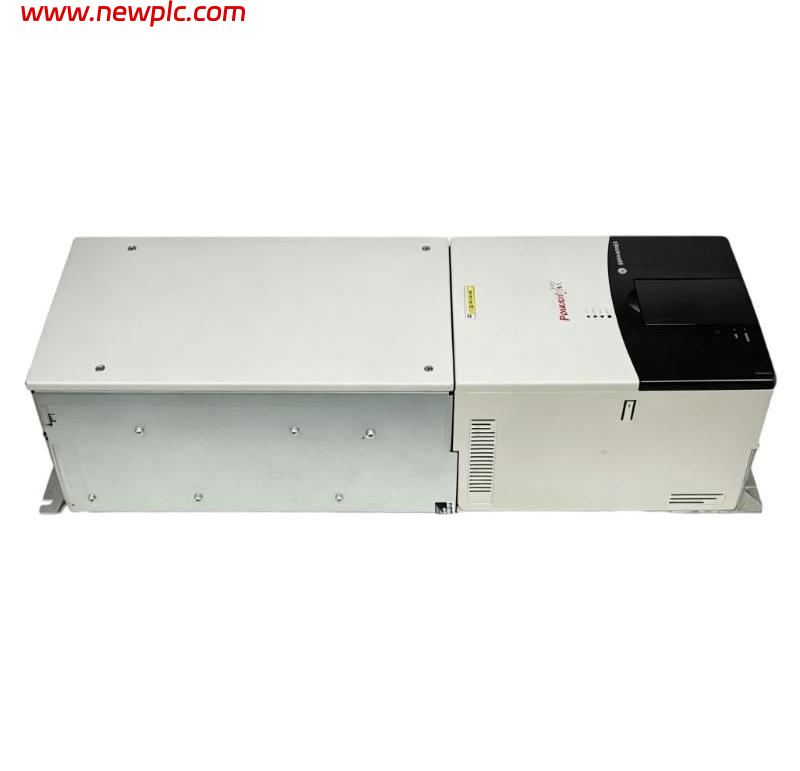

It is an Allen-Bradley PowerFlex 700 AC drive intended for high-power three-phase motor control in industrial applications.
Q2: What is the input voltage?
It is designed for a 380–480 VAC three-phase supply, with 400 VAC as the nominal voltage.
Q3: What is the current and power rating?
The drive is rated at 481 A, with a 280 kW normal-duty rating and 240 kW heavy-duty rating.
Q4: What type of mounting does this model use?
The U3 configuration is a roll-in version. This makes it suitable for large drive installations where the power section is integrated into a larger electrical cabinet or lineup.
Q5: What is the enclosure rating?
The drive is rated IP00. It therefore requires installation inside a suitable protective enclosure and should not be exposed directly to the operating environment.
Q6: Does it include a keypad and display?
Yes. This model is specified with an LCD display and full numeric keypad for local setup and monitoring.
Q7: Does it have a built-in braking resistor or communication module?
No. The listed configuration has no brake IGBT, no drive-mounted brake resistor, and no internal communication module.
Q8: What are the dimensions and weight?
The listed dimensions are approximately 2283.7 × 254.6 × 757.8 mm, with a weight of approximately 384 kg. Because this is a large roll-in drive, transportation and cabinet installation should be planned accordingly.
