Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | AC Variable Frequency Drive |

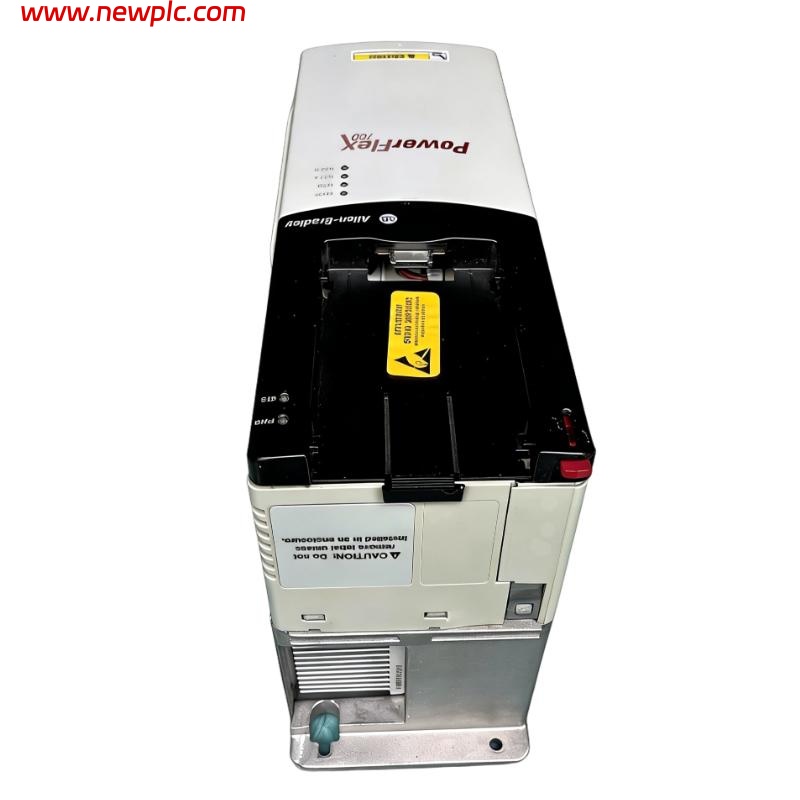

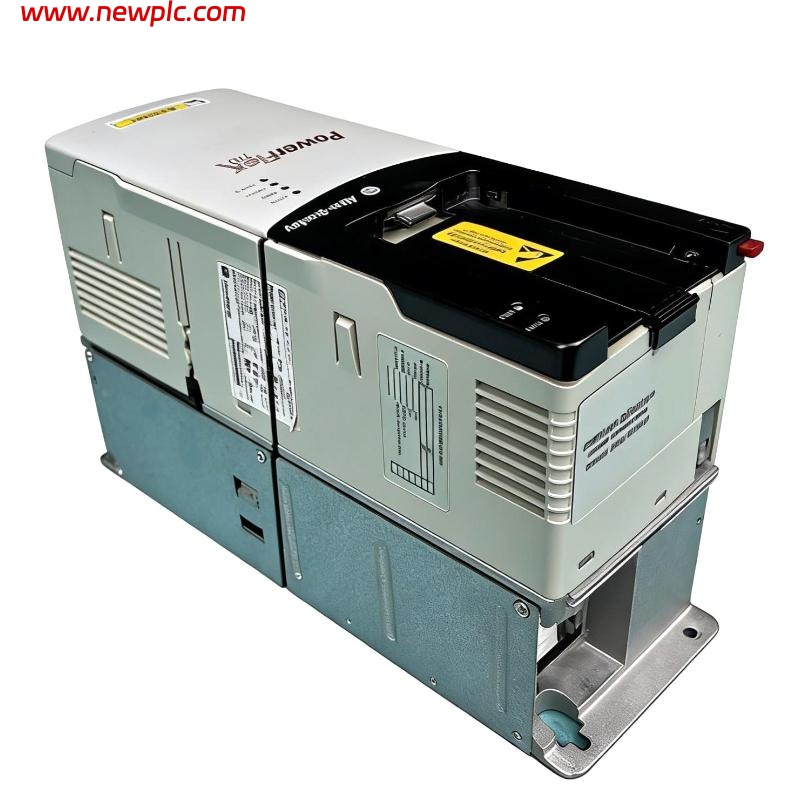

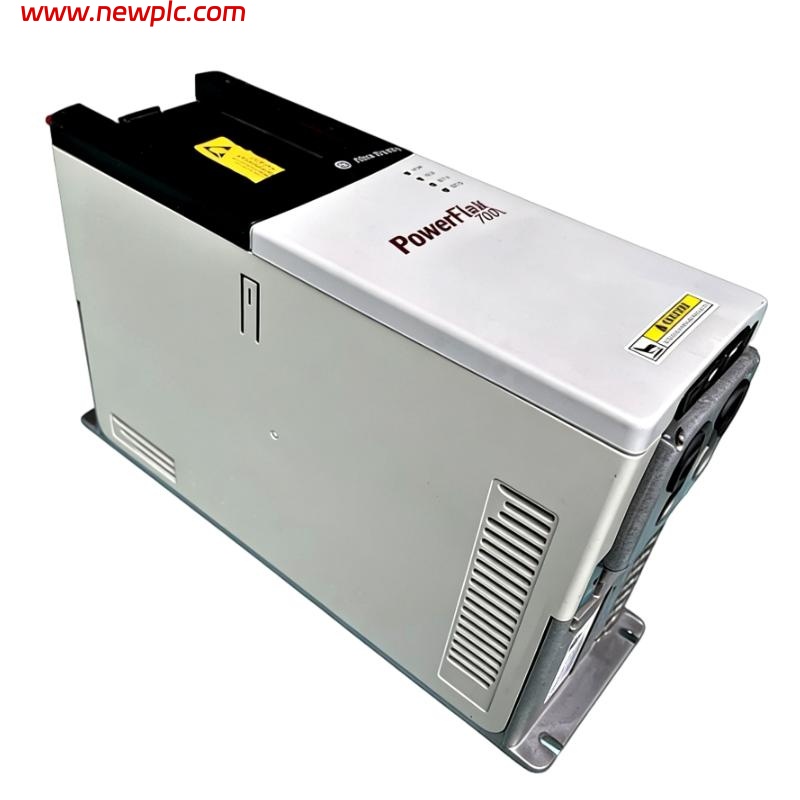

| Model | Allen-Bradley 20BC8P7A0AYNACC0 |
| Series | PowerFlex 700 |
| Function | Industrial AC motor speed and torque control drive |
| Input Voltage | 380–480 V AC, 3-phase |
| Input Frequency | 50/60 Hz |
| Output Current | 8.7 A |
| Output Power | 4.0 kW (Normal Duty) / 3.0 kW (Heavy Duty) |
| Frame Size | Frame 0 / B Frame equivalent |
| Control Method | Sensorless Vector Control / V/Hz control |
| Communication | Optional modules (ControlNet / DeviceNet / EtherNet/IP depending on configuration) |
| EMC Filter | Integrated EMC filter with common-mode choke |
| Brake Function | Brake IGBT installed (no internal brake resistor) |
| Control I/O | 24 V DC control, digital and analog I/O supported |
| Protection Functions | Overcurrent, overvoltage, undervoltage, motor overload, ground fault |
| Efficiency | ~97.5% |
| Stop Modes | Coast, ramp, DC brake, fast stop, S-curve |
| Enclosure Rating | IP20 / NEMA Type 1 |
| Mounting Type | Panel mount |
| Operating Temperature | 0 to 50 °C |
| Dimensions (H × W × D) | 336 × 110 × 200 mm |
| Weight | ~8.16 kg |
FAQ
FAQ
Q1. What is the 20BC8P7A0AYNACC0 used for?
It is a PowerFlex 700 AC drive used to control speed and torque of three-phase induction motors in industrial applications.
Q2. What is its power rating?
It is rated at 4.0 kW (normal duty) and 3.0 kW (heavy duty).
Q3. What type of input supply does it require?
It operates on a 380–480 V AC three-phase power supply.
Q4. Does it include braking capability?
Yes, it includes a built-in brake IGBT, but no internal brake resistor is included.
Q5. What communication options are available?
It supports optional industrial networks such as EtherNet/IP, DeviceNet, and ControlNet depending on installed modules.
Q6. What is the enclosure type?
It is designed for IP20 / NEMA Type 1 panel mounting inside electrical cabinets.
Q7. What are its physical dimensions and weight?
Its dimensions are approximately 336 × 110 × 200 mm and it weighs about 8.16 kg.
Q8. Is this model still in production?
No, it is discontinued as part of the PowerFlex 700 series lifecycle end-of-sale notice.
