Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Manufacturer |
Allen-Bradley / Rockwell Automation |
|
Model |
|
|
Product Type |
Adjustable Frequency AC Drive |
|
Product Family |
PowerFlex 700 |
|
Input Voltage |
480 VAC |
|
Input Phase |
3-phase |
|
Input Frequency |
60 Hz |
|
Rated Output Current |
125 A |
|
Normal-Duty Power |
100 HP (approximately 75 kW) |
|
Frame Size |
Frame 5 |
|
Control Method |
Vector Control |
|
I/O Voltage |
24 V DC/AC |
|
Operator Interface |
LCD display with full numeric keypad |
|
Feedback |
No encoder feedback listed |
|
Communication Network |
No internal communication network listed |
|
EMC Filter |
CE filter included |
|
Common-Mode Choke |
Included |
|
Brake IGBT |
Not included |
|
Internal Brake Resistor |
Not included |
|
Enclosure |
IP20 / NEMA 1 / UL Type 1 |
|
Power Dissipation |
1,527 W |
|
Ambient Operating Temperature |
0–50°C |
|
Storage Temperature |
−40 to +70°C |
|
Maximum Installation Altitude |
1,000 m without derating |
|
Shock Rating |
15 G |
|
Vibration |
0.152 mm displacement, 1 G peak |
|
PWM Carrier Frequency |
4 kHz |
|
Dimensions (H × W × D) |
644.5 × 308.9 × 275.4 mm (25.37 × 12.16 × 10.84 in), including mounting hardware |
|
Net Drive Weight |
37.19 kg (82.0 lb) |
|
Estimated Shipping Weight |
49.50 kg (109.0 lb), including packaging |
|
Mounting Hole Spacing |
625.0 mm high × 225.0 mm wide |
|
Lifecycle Status |
Discontinued; Rockwell Automation announced discontinuation of the PowerFlex 700 20B series effective June 1, 2023 |
FAQ
FAQ

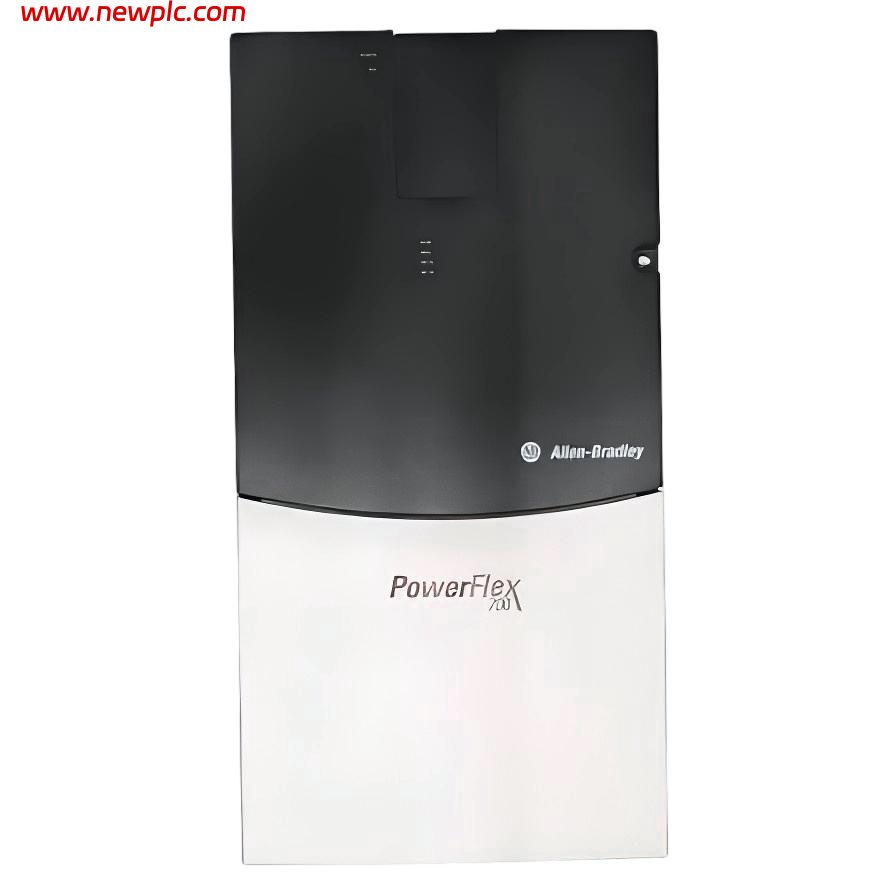

Q1: What is the 20BD125A3ANNANC0?
A: It is an Allen-Bradley PowerFlex 700 adjustable-frequency AC drive designed for industrial motor speed and torque control.
Q2: What is its rated input voltage?
A: It operates on a 480 VAC, three-phase power supply at 60 Hz.
Q3: What is its rated output current and power?
A: Its rated output current is 125 A, with a normal-duty power rating of 100 HP (approximately 75 kW).
Q4: What control method does it use?
A: It uses vector control for motor speed and torque regulation.
Q5: Does it include an internal braking resistor?
A: No. The catalog-specific distributor documentation lists neither an internal brake IGBT nor an internal braking resistor. External braking equipment may be required depending on the application.
Q6: What are the dimensions of this drive?
A: The listed dimensions, including mounting hardware, are 644.5 mm high × 308.9 mm wide × 275.4 mm deep.
Q7: What is the drive’s weight?
A: The listed net drive weight is 37.19 kg (82 lb), and the estimated shipping weight with packaging is 49.50 kg (109 lb).
Q8: Is this model still manufactured?
A: The PowerFlex 700 20B series was discontinued by Rockwell Automation effective June 1, 2023. Remaining stock, refurbished units, and repair services may still be available through distributors.
