Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Manufacturer |
Allen-Bradley |
|
Model |
|
|
Product Type |
PowerFlex 700 AC Drive |
|
Product Family |
PowerFlex 700, 20B |
|
Input Voltage |
480 VAC, 3-phase, 60 Hz |
|
Input Current |
233 A |
|
Input Power Rating |
194 kVA |
|
Continuous Output Current |
248 A |
|
Output Current Overload |
273 A for 1 minute; 372 A for 3 seconds |
|
Normal-Duty Power Rating |
200 HP |
|
Heavy-Duty Power Rating |
150 HP |
|
Nominal Motor Voltage |
460 VAC |
|
Output Voltage Range |
0 to rated motor voltage |
|
Output Phases |
3-phase |
|
Control Method |
Vector control, sensorless vector control, and programmable V/Hz |
|
Control I/O |
Verify against the exact catalog configuration |
|
Digital Inputs |
6 |
|
Digital Outputs |
3 |
|
Analog Inputs |
2 |
|
Analog Outputs |
2 |
|
Human Interface |
Full numeric LCD display with programming keypad |
|
Feedback Option |
Verify against the exact catalog configuration |
|
Communication Module |
Verify against the exact catalog configuration |
|
Brake IGBT |
Not included |
|
Internal Brake Resistor |
None |
|
EMC Filtering |
EMC filter with common-mode choke |
|
Enclosure Rating |
IP20 / NEMA/UL Type 1 |
|
Frame Size |
Frame 6 |
|
Carrier Frequency |
2 kHz at 480 VAC for the listed 248 A rating |
|
Maximum Output Frequency |
420 Hz |
|
Acceleration/Deceleration |
Independently programmable, 0–3600 seconds |
|
Motor Overload Protection |
Class 10 |
|
Efficiency |
Approximately 97.5% |
|
Power Factor |
Approximately 0.98 |
|
Nominal DC Bus Voltage |
648 VDC |
|
DC Bus Overvoltage Trip |
810 VDC |
|
DC Bus Undervoltage Trip |
305 VDC |
|
Power Ride-Through |
15 ms at full load |
|
Maximum Short-Circuit Rating |
200,000 A symmetrical, subject to the applicable protection configuration |
|
Operating Temperature |
0–50°C for applicable IP20 ratings |
|
Maximum Altitude |
1000 m without derating |
|
Relative Humidity |
5–95%, noncondensing |
|
Approximate Dimensions (H × W × D) |
976.3 × 403.9 × 275.5 mm (38.44 × 15.90 × 10.85 in), reference dimensions |
|
Approximate Net Weight |
71.44 kg (157.5 lb), reference value |
|
Product Lifecycle |
Discontinued |
|
Typical Applications |
Pumps, fans, conveyors and industrial motor-control systems |
FAQ
FAQ

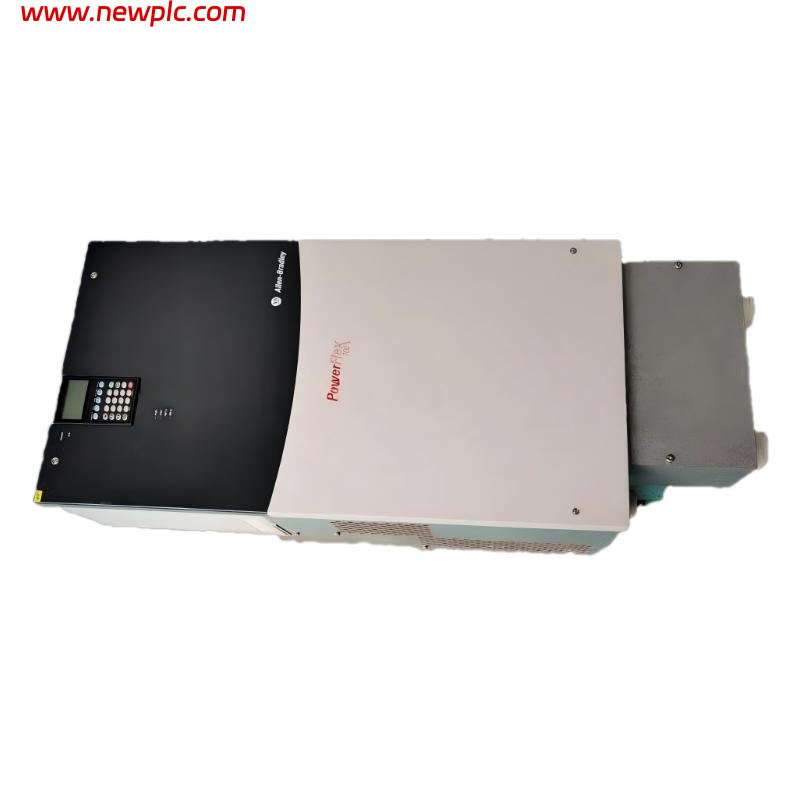

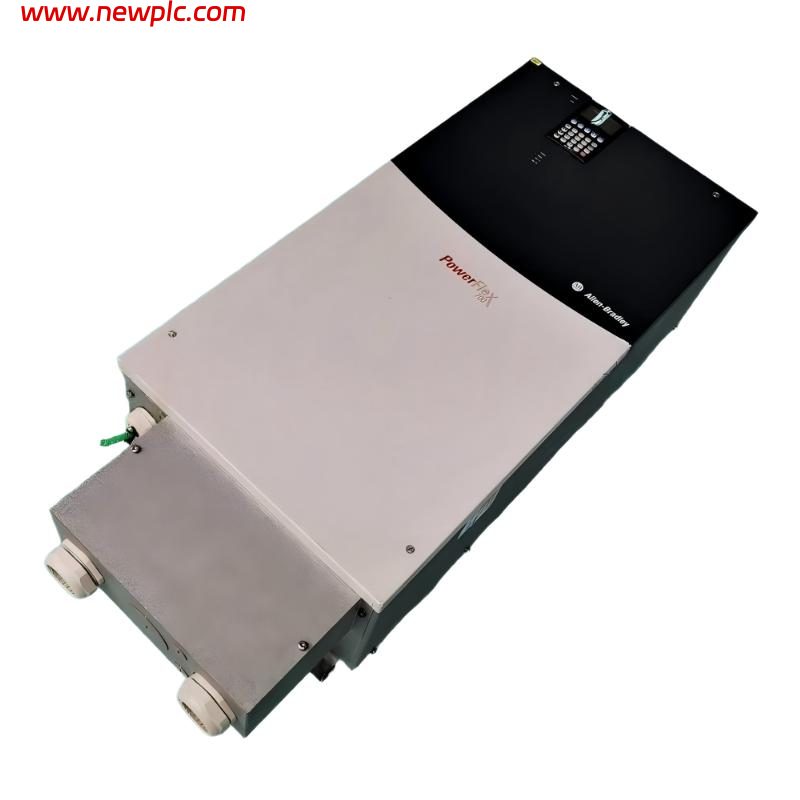

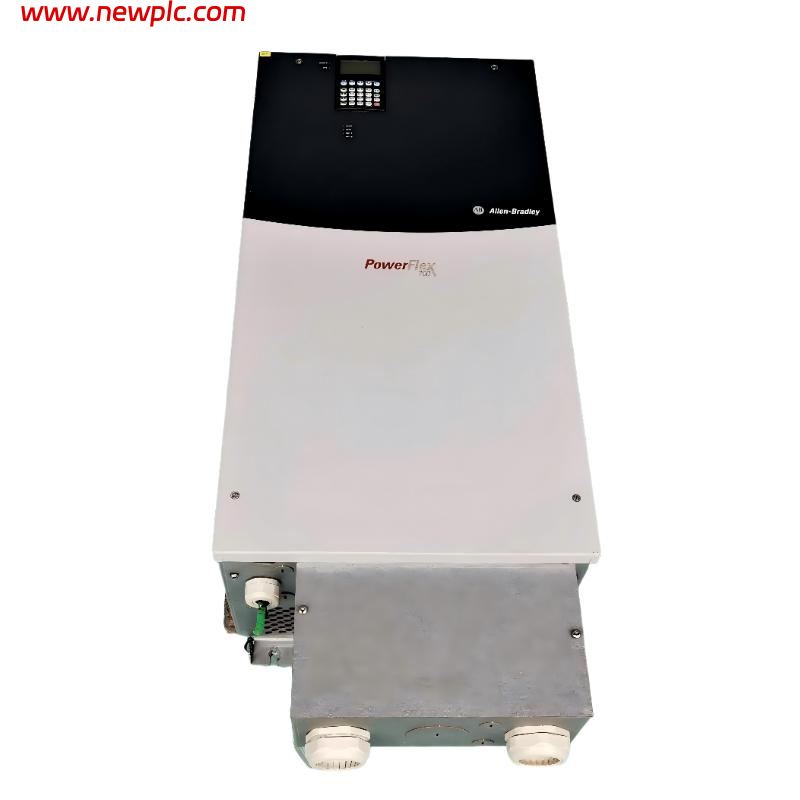

Q1: What is the Allen-Bradley 20BD248A3ANNANC1?
A: The 20BD248A3ANNANC1 is identified as a PowerFlex 700 adjustable frequency AC drive for industrial three-phase motor control. It is designed to regulate motor speed in applications requiring variable-speed operation.
Q2: What are the input voltage and output current ratings?
A: The corresponding drive configuration is rated for a 480 VAC, three-phase supply and 248 A continuous output current. Verify the product nameplate before connecting it to the power supply.
Q3: What motor power ratings does this drive support?
A: The corresponding 248 A configuration is rated at 200 HP for normal-duty operation and 150 HP for heavy-duty operation. The correct selection depends on the motor’s rated current and the application load.
Q4: What are the dimensions and weight of this model?
A: Reference dimensions for the corresponding Frame 6 drive are approximately 976.3 × 403.9 × 275.5 mm (H × W × D), with a reference weight of 71.44 kg (157.5 lb). Confirm the exact enclosure and mechanical drawing before installation.
Q5: Does this model include a built-in braking resistor?
A: The corresponding standard configuration does not include an internal braking resistor or braking IGBT. External braking equipment may be necessary for applications involving rapid deceleration.
Q6: What control methods does the PowerFlex 700 support?
A: The series supports vector control, sensorless vector control and programmable V/Hz control. The available functions depend on the installed control configuration and parameter settings.
Q7: Can this drive communicate with a PLC?
A: PLC integration depends on the communication hardware installed in the drive. Check the exact catalog number and communication module before selecting a network protocol or configuring the control system.
Q8: Is the Allen-Bradley 20BD248A3ANNANC1 still available?
A: The PowerFlex 700 20B series has been discontinued. Remaining inventory and refurbished units may be available from industrial automation suppliers. Confirm the catalog number, hardware options, condition and warranty before purchasing.
