Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Manufacturer |
Allen-Bradley |
|
Model |
|
|
Product Series |
PowerFlex 700 |
|
Product Type |
AC Drive |
|
Input Voltage |
600 VAC |
|
Input Phase |
Three-phase |
|
Input Frequency |
60 Hz |
|
Input Current |
72.3 A |
|
Input Power Rating |
75.1 kVA |
|
Rated Output Current |
77 A |
|
Continuous Output Current |
77 A |
|
1-Minute Output Current |
94 A |
|
3-Second Output Current |
126 A |
|
Normal-Duty Power Rating |
75 HP |
|
Heavy-Duty Power Rating |
60 HP |
|
Frame Size |
Frame 5 |
|
Control Method |
Vector Control, Sensorless Vector Control, and V/Hz Control |
|
I/O Type |
24V DC I/O |
|
Enclosure |
IP20 / NEMA/UL Type 1 |
|
Mounting Type |
Panel Mount |
|
Operator Interface |
HIM Blank Plate; no keypad included |
|
Brake IGBT |
No |
|
Drive-Mounted Brake Resistor |
No |
|
Internal Communication Module |
No |
|
Feedback |
No Feedback |
|
EMC Filter |
Included, with common-mode choke |
|
Conformal Coating |
Included |
|
Output Phase |
Three-phase |
|
Output Voltage Range |
0 to rated motor voltage |
|
Maximum Output Frequency |
420 Hz |
|
Carrier Frequency |
2, 4, 8, or 10 kHz; rating based on 4 kHz |
|
Acceleration / Deceleration |
Independently programmable, 0–3600 seconds |
|
Motor Protection |
Electronic motor overload protection |
|
Current Limit |
Programmable, 20–160% of rated output current |
|
Efficiency |
Approximately 97.5% |
|
Power Factor |
Approximately 0.98 |
|
Power Ride-Through |
15 ms at full load |
|
Maximum Short-Circuit Rating |
200,000 A symmetrical, subject to applicable protection requirements |
|
Operating Temperature |
0–50°C, subject to installation conditions |
|
Maximum Altitude |
1,000 m without derating |
|
Relative Humidity |
5–95%, non-condensing |
|
Dimensions (H × W × D) |
758.8 × 220 × 201.7 mm (29.87 × 8.66 × 7.94 in) |
|
Approximate Net Weight |
24.49 kg (54 lb) |
|
Approximate Weight with Packaging |
29.03 kg (64 lb) |
|
Product Lifecycle |
Discontinued, effective November 30, 2023 |
|
Typical Applications |
Pumps, fans, conveyors, compressors, and industrial motor-control systems |
FAQ
FAQ

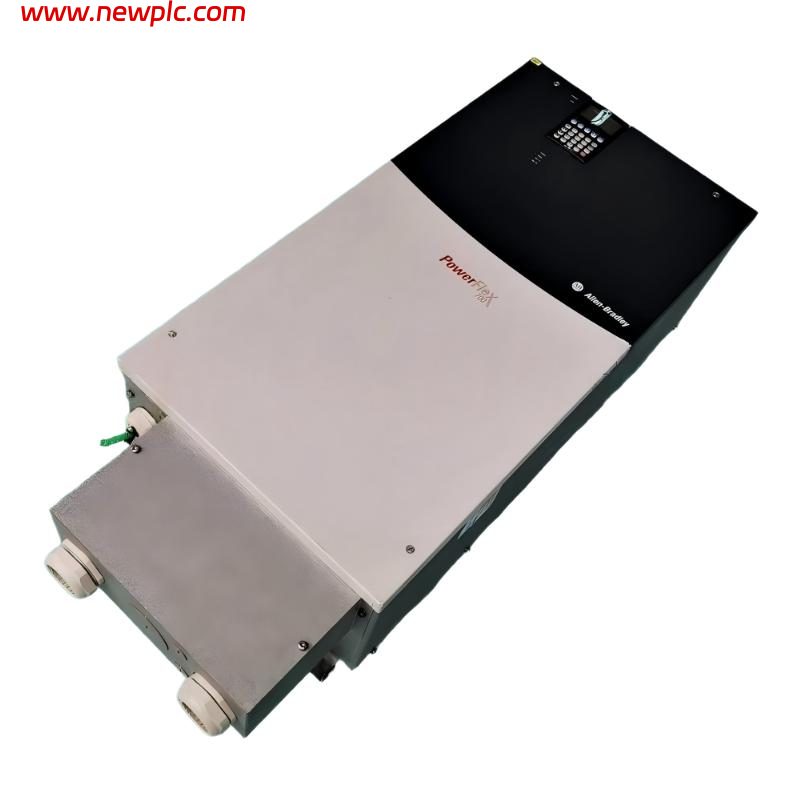

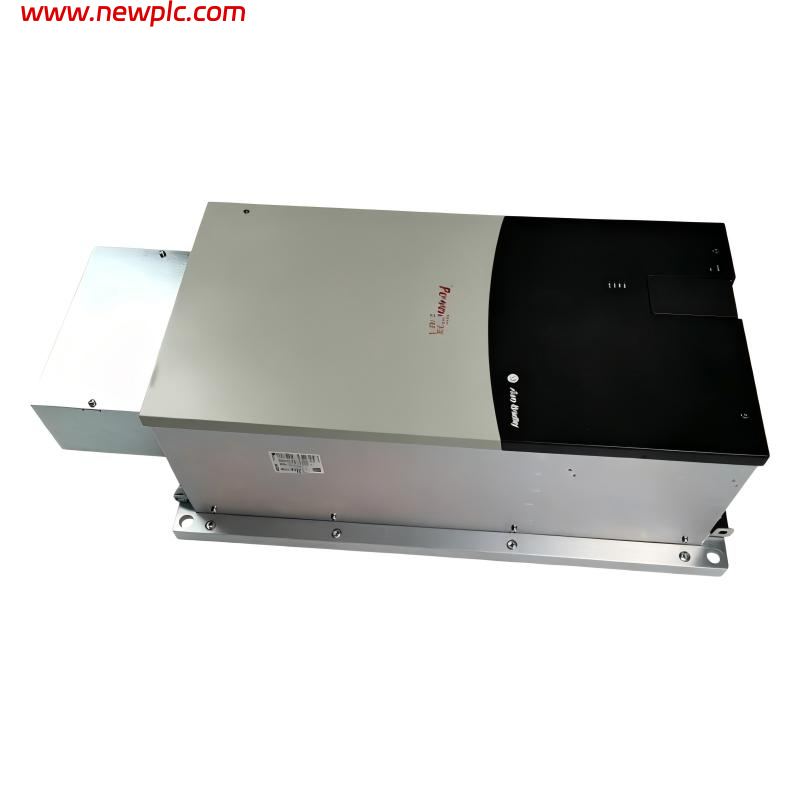

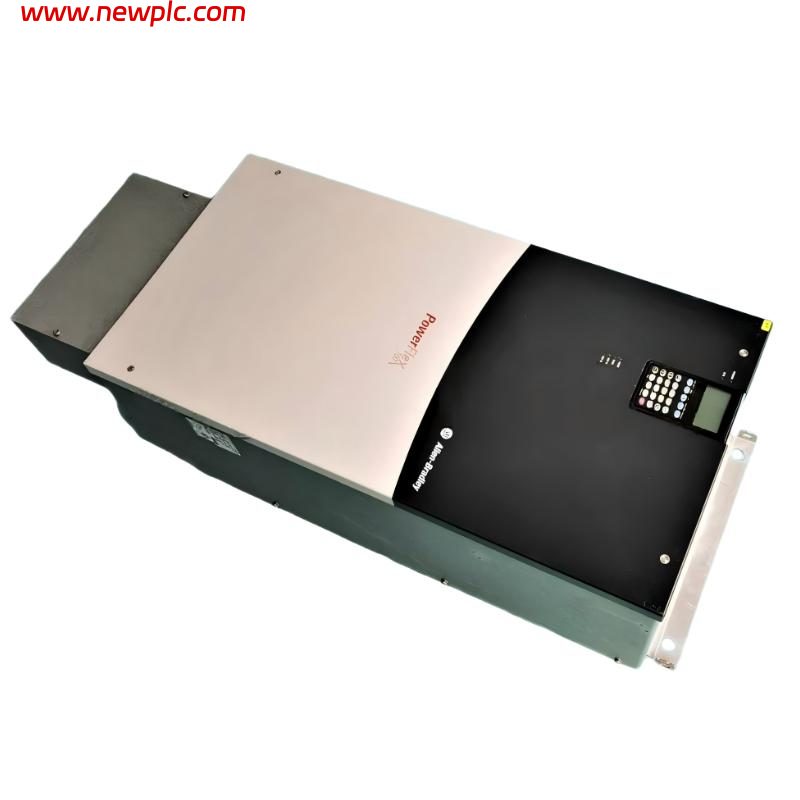

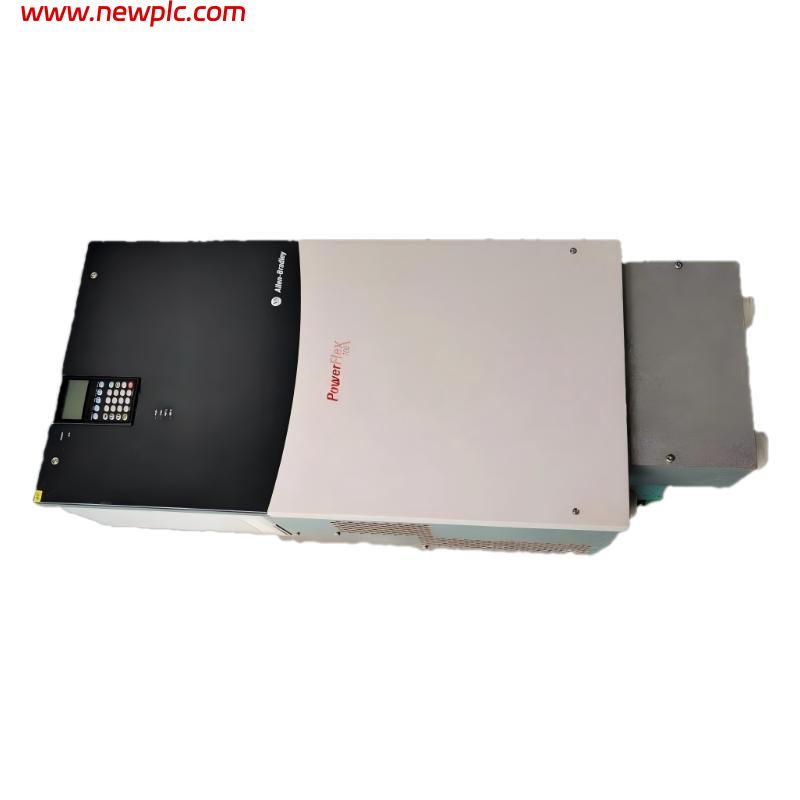

Q1: What is the Allen-Bradley 20BE077A0ANNANC0?
A: The 20BE077A0ANNANC0 is a PowerFlex 700 AC drive designed to regulate the speed and torque of three-phase AC motors in industrial automation systems.
Q2: What are the input voltage and output current ratings?
A: It operates on a nominal 600 VAC, three-phase supply and provides a continuous output current of 77 A.
Q3: What are the normal-duty and heavy-duty horsepower ratings?
A: The drive is rated for 75 HP under normal-duty conditions and 60 HP under heavy-duty conditions.
Q4: What are the dimensions of the 20BE077A0ANNANC0?
A: The reference dimensions are 758.8 mm high, 220 mm wide, and 201.7 mm deep (29.87 × 8.66 × 7.94 inches).
Q5: How much does this AC drive weigh?
A: The approximate net weight is 24.49 kg (54 lb), while the estimated weight with packaging is 29.03 kg (64 lb).
Q6: Does this model include a keypad or communication module?
A: No. This configuration has a blank HIM plate and no internal communication module. Additional interface or communication hardware may be needed for a particular control system.
Q7: Does the 20BE077A0ANNANC0 include braking hardware?
A: No. It does not include a brake IGBT or an internal braking resistor. If the application requires dynamic braking, evaluate a suitable external braking solution.
Q8: Is the 20BE077A0ANNANC0 still available as a new product?
A: Rockwell Automation lists this model as discontinued effective November 30, 2023. Remaining inventory, refurbished units, and repair services may be available through industrial automation suppliers.
