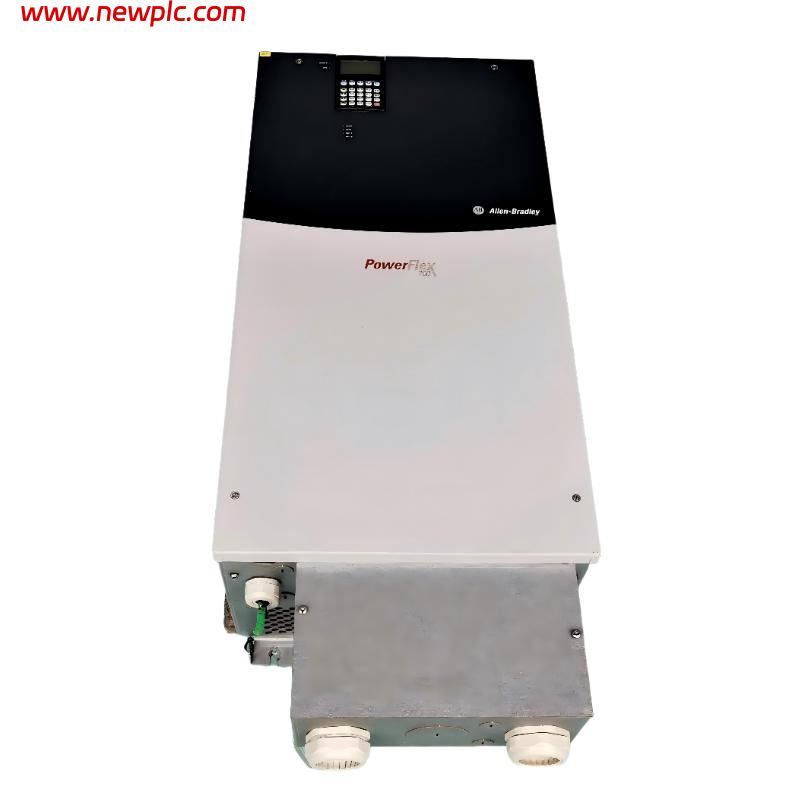

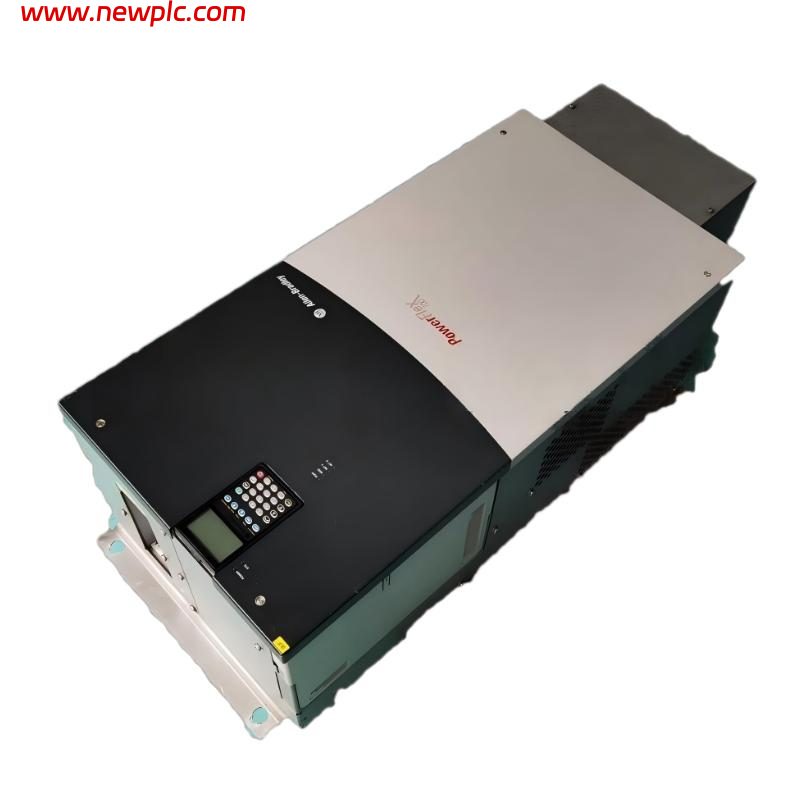

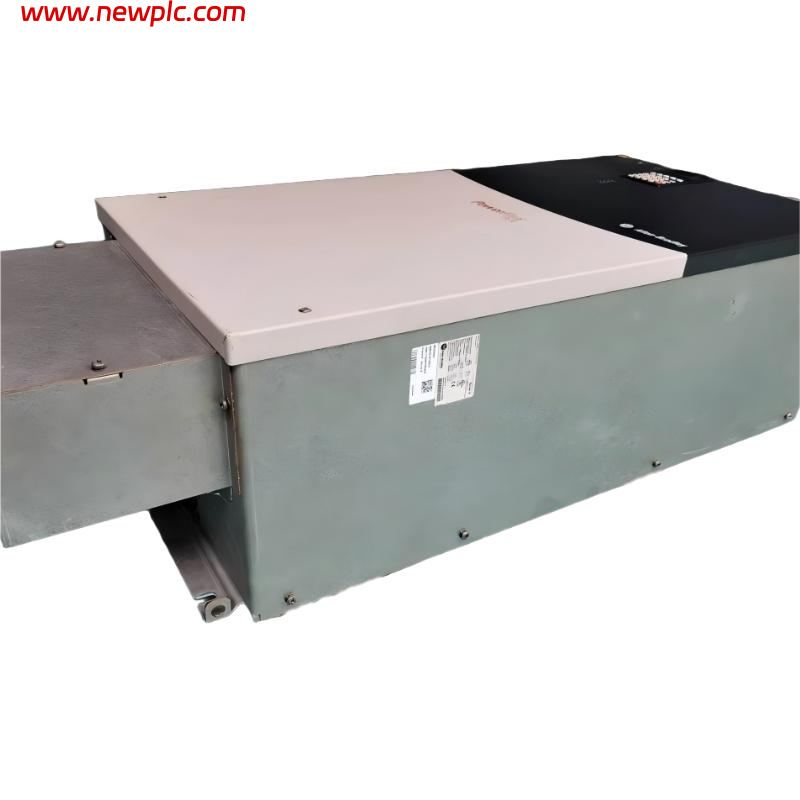

Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Manufacturer |
Allen-Bradley |
|
Model |
|
|
Product Series |
PowerFlex 700 |
|
Product Type |
AC Drive / Variable Frequency Drive |
|
Drive Type |
PowerFlex 700, Type 20B |
|
Input Voltage |
540 V DC |
|
Input Type |
DC input, no pre-charge |
|
Input Phases |
DC input configuration |
|
Input Current |
159 A at 540 V DC, normal-duty rating |
|
Continuous Output Current |
140 A |
|
1-Minute Overload Current |
158 A, heavy-duty reference |
|
3-Second Overload Current |
190 A, normal-duty reference |
|
Normal-Duty Power Rating |
75 kW / approximately 100 HP |
|
Heavy-Duty Power Rating |
55 kW / approximately 75 HP |
|
Output Phases |
3-phase |
|
Output Voltage |
0 to rated motor voltage |
|
Maximum Output Frequency |
420 Hz |
|
Frame Size |
Frame 5 |
|
Enclosure Rating |
IP20 / NEMA/UL Type 1 |
|
Conformal Coating |
Yes |
|
Control Method |
Vector Control |
|
Motor Control Modes |
Sensorless Vector / V/Hz / Vector Control |
|
Control I/O |
24 V DC I/O |
|
Analog Inputs |
2 |
|
Analog Outputs |
2 |
|
Digital Inputs |
6 |
|
Digital Outputs |
3 |
|
Human Interface Module (HIM) |
No HIM; blank plate |
|
Feedback |
No feedback |
|
Brake IGBT |
No |
|
Internal Brake Resistor |
No |
|
Internal Communication Module |
No communication module |
|
EMC Filtering |
EMC filter with common-mode choke |
|
Carrier Frequency |
2, 4, 8, and 10 kHz |
|
PWM Frequency |
4 kHz at 540 V DC |
|
Speed Regulation |
Approximately 0.5% of base speed in V/Hz mode with slip compensation; vector performance depends on configuration |
|
Displacement Power Factor |
0.98 across the speed range |
|
Efficiency |
Approximately 97.5% at rated current and nominal line conditions |
|
Current Limit Capability |
Programmable from 20–160% of rated output current |
|
Instantaneous Current Limit |
Approximately 220–300% of rated current, depending on drive rating |
|
Motor Overload Protection |
Class 10 in vector control |
|
Acceleration Time |
0–3600 s |
|
Deceleration Time |
0–3600 s |
|
Maximum Altitude Without Derating |
1000 m (3281 ft) |
|
Operating Temperature |
0–50°C (32–122°F) |
|
Relative Humidity |
5–95%, non-condensing |
|
Short-Circuit Rating |
Determined by the interrupting rating of the installed fuse or circuit breaker |
|
Dimensions (H × W × D) |
689.6 × 308.9 × 275.4 mm (27.15 × 12.16 × 10.84 in) |
|
Approximate Drive Weight |
37.19 kg (82.0 lb), standard Frame 5 reference |
|
Product Lifecycle |
Discontinued November 30, 2023 |
FAQ
FAQ
Q1: What is the Allen-Bradley 20BH140A0ANNANC0?
A: The 20BH140A0ANNANC0 is a PowerFlex 700 adjustable frequency drive designed for a 540 V DC input without pre-charge. It controls the speed and torque of three-phase AC motors in industrial applications.
Q2: What are the normal-duty and heavy-duty power ratings?
A: The drive is rated at 75 kW (approximately 100 HP) for normal-duty applications and 55 kW (approximately 75 HP) for heavy-duty applications. Select the operating rating according to motor current and load requirements.
Q3: What is the continuous output current?
A: The continuous output current is 140 A at 540 V DC input. The listed overload values are 158 A for one minute in heavy-duty operation and 190 A for three seconds in normal-duty operation.
Q4: Can this drive connect directly to a 540 V DC bus?
A: It is specified for 540 V DC input with no pre-charge. Confirm the DC bus voltage range, polarity, grounding, isolation, and protective-device requirements in the manufacturer’s installation documentation before connecting it.
Q5: What are the dimensions and weight of the 20BH140A0ANNANC0?
A: The standard Frame 5 reference dimensions are 689.6 × 308.9 × 275.4 mm (27.15 × 12.16 × 10.84 inches). The approximate drive weight is 37.19 kg (82.0 lb), excluding packaging.
Q6: Does this model include a keypad or communication module?
A: No. It is supplied with a blank HIM plate and no internal communication module. Compatible accessories may be required for local programming or network integration.
Q7: Does this drive include braking hardware?
A: No. This configuration does not include a braking IGBT or an internal brake resistor. If the application requires rapid deceleration, evaluate an appropriate external braking solution.
Q8: Is the 20BH140A0ANNANC0 still manufactured?
A: Rockwell Automation lists this model as discontinued effective November 30, 2023. When sourcing a used or refurbished unit, verify the catalog number, condition, DC-input requirements, and compatibility with the existing installation.
