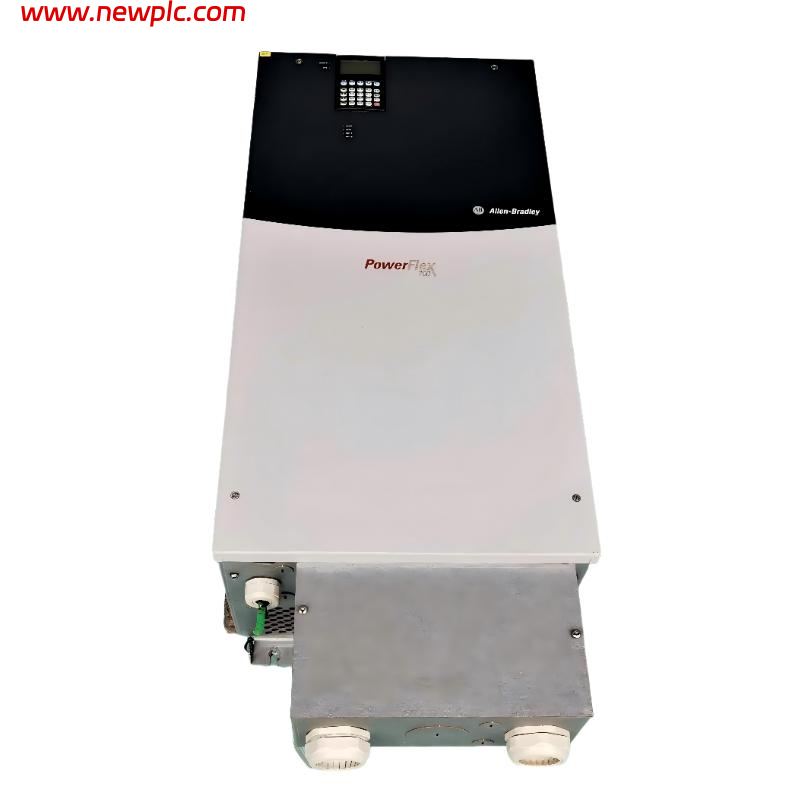

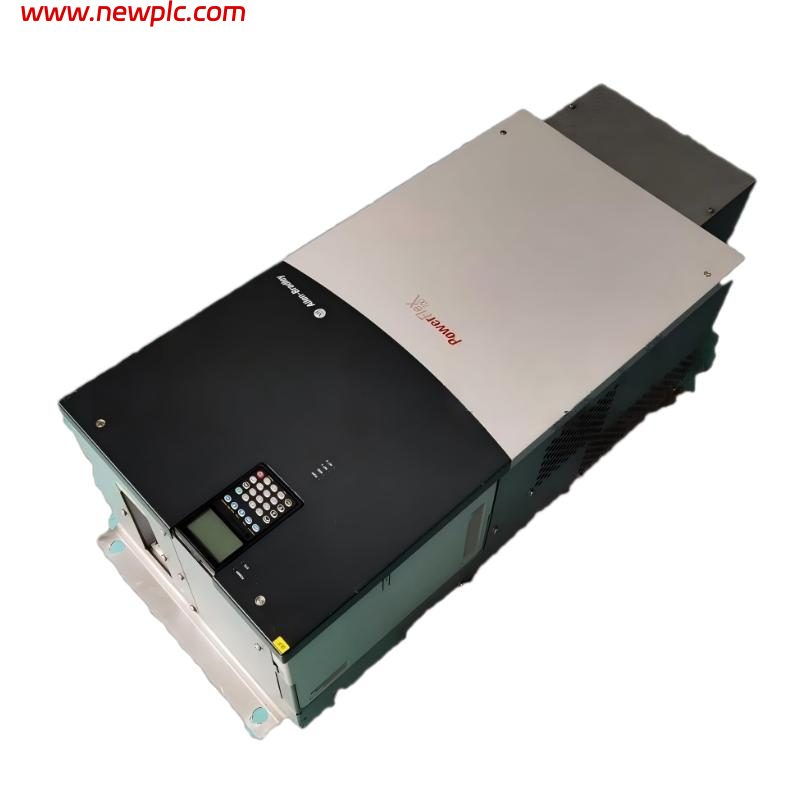

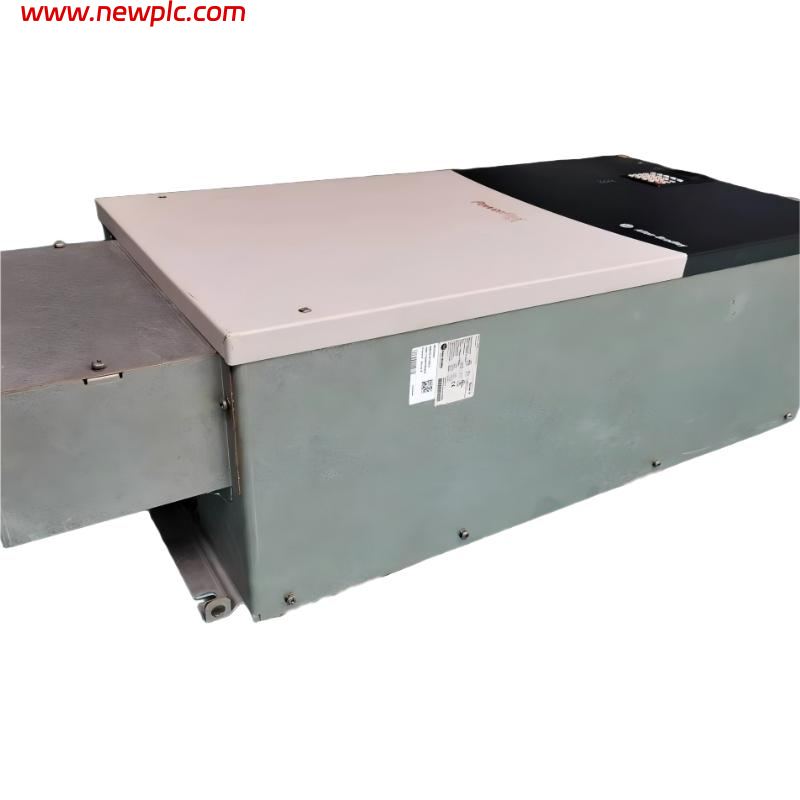

Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Manufacturer |
Allen-Bradley |
|
Product Series |
PowerFlex 700 |
|
Catalog Number |
|
|
Product Type |
AC Drive / Adjustable Frequency Drive |
|
Drive Type |
PowerFlex 700 Type 20B |
|
Input Voltage |
540 V DC |
|
Input Type |
DC bus input with pre-charge |
|
Continuous Output Current |
105 A |
|
Normal Duty Power Rating |
55 kW (55 HP, catalog description) |
|
Heavy Duty Power Rating |
45 kW (45 HP, catalog description) |
|
Output Voltage |
0 V to rated motor voltage |
|
Output Phase |
3-phase |
|
Maximum Output Frequency |
420 Hz in vector control; standard control range up to 400 Hz |
|
Overload Capacity |
110% for up to 1 minute; 150% for up to 3 seconds |
|
Control Method |
Vector Control |
|
Control I/O |
24 V I/O |
|
Analog Inputs |
2 |
|
Analog Outputs |
2 |
|
Digital Inputs |
6 |
|
Digital Outputs |
3 |
|
Human Interface Module (HIM) |
Not included; blank plate installed |
|
Communication Module |
Not included |
|
Feedback Option |
No feedback |
|
Braking IGBT |
Not included |
|
Internal Brake Resistor |
Not included |
|
EMC Filter |
EMC filter with common-mode choke |
|
Enclosure Rating |
IP20 / NEMA/UL Type 1 |
|
Conformal Coating |
Included |
|
Carrier Frequency |
2, 4, 8, and 10 kHz; drive rating based on 4 kHz |
|
Efficiency |
Approximately 97.5% at rated current and nominal voltage |
|
Displacement Power Factor |
Approximately 0.98 |
|
Motor Overload Protection |
Class 10 |
|
Programmable Acceleration/Deceleration |
Two independently programmable times, 0–3600 seconds |
|
Maximum Short-Circuit Rating |
Up to 200,000 A symmetrical, subject to specified protection requirements |
|
Maximum Installation Altitude |
1,000 m (3,300 ft) without derating |
|
Operating Temperature |
0–50°C (32–122°F), subject to installation conditions |
|
Relative Humidity |
5–95%, non-condensing |
|
Frame Size |
Frame 5 |
|
Drive Dimensions (H × W × D) |
Exact dimensions for this catalog configuration require confirmation from the dimensional drawing |
|
Drive Weight |
Exact drive-only weight requires confirmation from the dimensional drawing |
|
Standalone IP54 / NEMA Type 12 Enclosure Dimensions |
1574.8 × 609.6 × 450.7 mm (H × W × D) |
|
Standalone Enclosure Weight |
Approximately 154.68 kg (341 lb), including drive and packaging |
|
Product Lifecycle |
Discontinued |
|
Typical Applications |
Industrial motor control, conveyors, pumps, fans, and process machinery |
FAQ
FAQ
Q1: What is the Allen-Bradley 20BP105A0ANNANC0?
A: The 20BP105A0ANNANC0 is an Allen-Bradley PowerFlex 700 adjustable frequency drive designed for industrial motor speed and torque control. It belongs to the PowerFlex 700 Type 20B family and has a 105 A continuous output current rating.
Q2: What are the power ratings of this drive?
A: The catalog description specifies 55 HP for normal-duty operation and 45 HP for heavy-duty operation. Confirm the motor nameplate and operating requirements before selecting the drive.
Q3: What input power does the 20BP105A0ANNANC0 require?
A: This configuration uses a 540 V DC input with pre-charge. The DC bus supply and associated protection must be designed according to the manufacturer’s installation instructions.
Q4: Does this model include a Human Interface Module?
A: No. It is supplied with a blank plate in place of the Human Interface Module. A compatible HIM may be required for convenient local programming and monitoring.
Q5: Does the drive include a communication module?
A: No internal communication module is included in this catalog configuration. Additional compatible communication hardware may be needed to integrate the drive into a plant network or automation system.
Q6: Does the 20BP105A0ANNANC0 support dynamic braking?
A: This configuration does not include a braking IGBT or internal brake resistor. If the application requires dynamic braking, a compatible external braking solution must be selected separately.
Q7: What are the dimensions and weight of this drive?
A: The exact drive-only dimensions and weight should be verified using the dimensional drawing for catalog number 20BP105A0ANNANC0. The published figures of approximately 1574.8 × 609.6 × 450.7 mm and 154.68 kg apply to a standalone IP54 / NEMA Type 12 enclosure, including the drive and packaging, not necessarily to the bare IP20 drive.
Q8: Is the 20BP105A0ANNANC0 still available as a new product?
A: The PowerFlex 700 Type 20B series has been discontinued. Availability may depend on remaining stock, refurbished equipment, or specialist industrial automation suppliers. Check the exact catalog number, hardware condition, and replacement compatibility before purchasing.
