Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Manufacturer |
Allen-Bradley |
|
Product Series |
PowerFlex 700 |
|
Catalog Number |
|
|
Product Type |
AC Drive / Adjustable Frequency Drive |
|
Drive Type |
PowerFlex 700 Type 20B |
|
Input Voltage |
540 V DC |
|
Input Type |
DC bus input with pre-charge |
|
Continuous Output Current |
170 A |
|
Normal Duty Power Rating |
90 kW (approximately 120 HP) |
|
Heavy Duty Power Rating |
75 kW (approximately 100 HP) |
|
Output Voltage |
0 V to rated motor voltage |
|
Output Phase |
3-phase |
|
Maximum Output Frequency |
420 Hz |
|
Overload Capacity |
110% for up to 1 minute; 150% for up to 3 seconds |
|
Control Method |
Vector Control, Sensorless Vector, and V/Hz |
|
Control I/O |
Vector control with 24 V DC I/O |
|
Analog Inputs |
2 |
|
Analog Outputs |
2 |
|
Digital Inputs |
6 |
|
Digital Outputs |
3 |
|
Human Interface Module (HIM) |
Not included; blank plate installed |
|
Communication Module |
Not included |
|
Feedback Option |
No feedback |
|
Brake IGBT |
Not included |
|
Internal Brake Resistor |
Not included |
|
EMC Filter |
EMC filter with common-mode choke |
|
Enclosure Rating |
IP20 / NEMA/UL Type 1 |
|
Conformal Coating |
Included |
|
Carrier Frequency |
2, 4, 8, and 10 kHz; drive rating based on 4 kHz |
|
Efficiency |
Approximately 97.5% at rated current and nominal voltage |
|
Displacement Power Factor |
0.98 |
|
Motor Overload Protection |
Class 10 in vector control mode |
|
Current Limit |
Programmable from 20% to 160% of rated output current |
|
Instantaneous Current Limit |
220–300%, depending on drive rating |
|
Acceleration/Deceleration |
Two independently programmable times, 0–3600 seconds |
|
Power Ride-Through |
15 ms at full load |
|
Maximum Short-Circuit Rating |
200,000 A symmetrical, subject to specified protection requirements |
|
Maximum Installation Altitude |
1,000 m (3,300 ft) without derating |
|
Operating Temperature |
Up to 50°C (122°F), subject to operating conditions |
|
Relative Humidity |
5–95%, non-condensing |
|
Frame Size |
Frame 6 |
|
Drive Dimensions (H × W × D) |
Approximately 850 × 403.9 × 275.5 mm (33.46 × 15.90 × 10.85 in); verify against the applicable dimensional drawing |
|
Drive Weight |
Approximately 71.44 kg (157.5 lb); reference value |
|
Standalone IP54 / NEMA Type 12 Enclosure Dimensions |
1828.8 × 711.3 × 487.8 mm (H × W × D) |
|
Standalone Enclosure Weight |
Approximately 229.07 kg (505 lb), including drive and packaging |
|
Product Lifecycle |
Discontinued |
|
Typical Applications |
Industrial motor control, conveyors, pumps, fans, compressors, and process machinery |
FAQ
FAQ

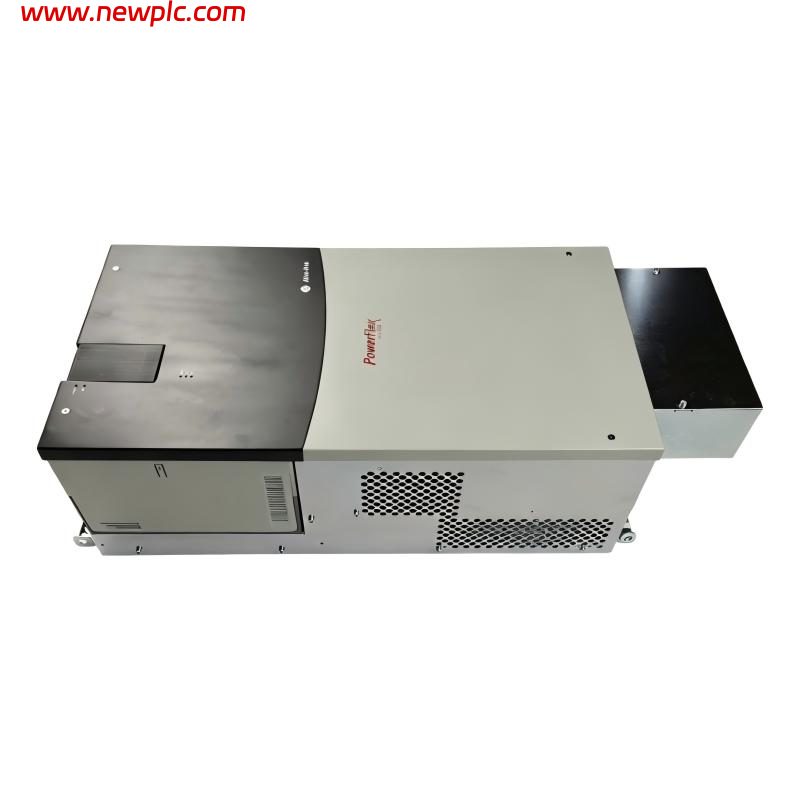

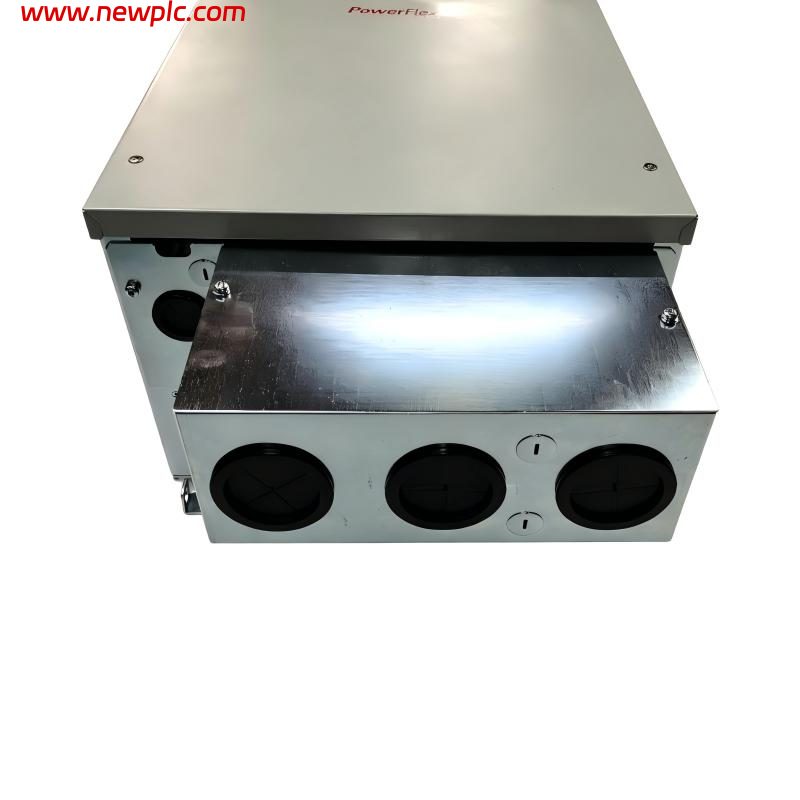

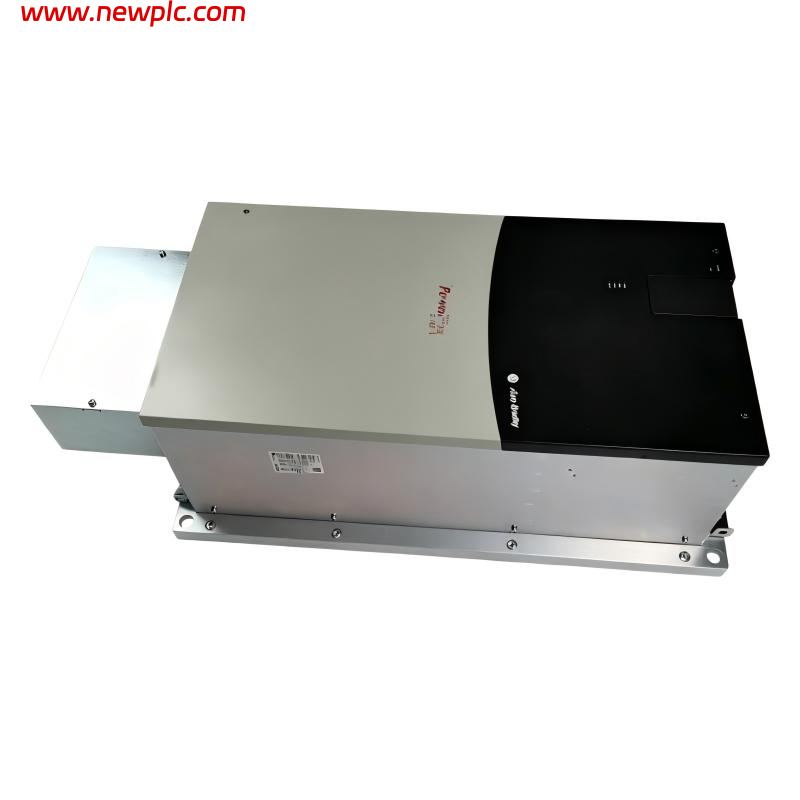

Q1: What is the Allen-Bradley 20BP170A0ANNANC0?
A: The 20BP170A0ANNANC0 is an Allen-Bradley PowerFlex 700 adjustable frequency drive designed for industrial motor speed and torque control. It uses a 540 V DC input with pre-charge and provides a continuous output current rating of 170 A.
Q2: What are the power ratings of this drive?
A: This model has a normal-duty rating of 90 kW and a heavy-duty rating of 75 kW. The correct rating depends on the motor nameplate, load characteristics, and required overload capacity.
Q3: Does the 20BP170A0ANNANC0 require a DC bus supply?
A: Yes. This configuration is designed for a 540 V DC bus input and includes pre-charge. The DC supply, circuit protection, and pre-charge arrangement must follow the manufacturer’s installation requirements.
Q4: Does this model include a Human Interface Module or communication module?
A: No. It is supplied with a blank plate instead of a Human Interface Module and does not include an internal communication module. Compatible accessories may be needed for local programming or network integration.
Q5: Does the drive support encoder feedback?
A: The 20BP170A0ANNANC0 is specified without feedback. It supports sensorless vector control, vector control, and V/Hz control. Applications requiring closed-loop encoder feedback should use a suitable feedback-equipped configuration.
Q6: Does this model include dynamic braking hardware?
A: This catalog configuration does not include a brake IGBT or an internal brake resistor. If dynamic braking is required, a compatible external braking solution must be selected separately.
Q7: What are the dimensions and weight of the 20BP170A0ANNANC0?
A: Reference dimensions are approximately 850 × 403.9 × 275.5 mm, and the reference weight is approximately 71.44 kg. Confirm the exact drive-only dimensions and weight using the applicable dimensional drawing before panel design, transport, or installation. The larger dimensions of 1828.8 × 711.3 × 487.8 mm and weight of 229.07 kg refer to a standalone IP54 / NEMA Type 12 enclosure, including the drive and packaging.
Q8: Is the 20BP170A0ANNANC0 still available as a new product?
A: The PowerFlex 700 Type 20B series was discontinued on November 30, 2023. Availability may depend on remaining inventory, refurbished units, or industrial automation resellers. Verify the exact catalog number, hardware condition, and compatibility before purchasing a replacement.
