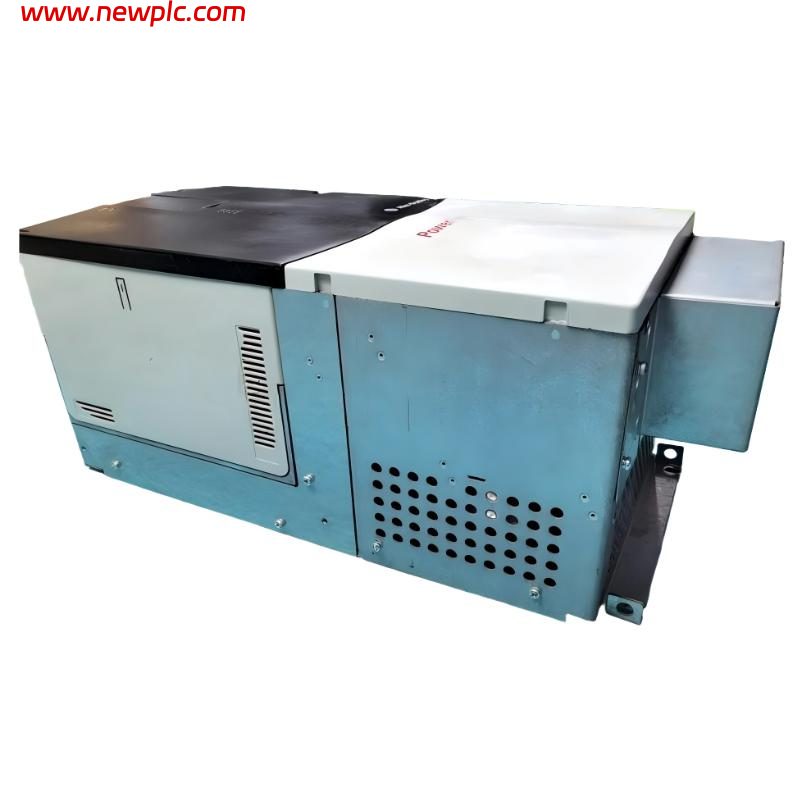

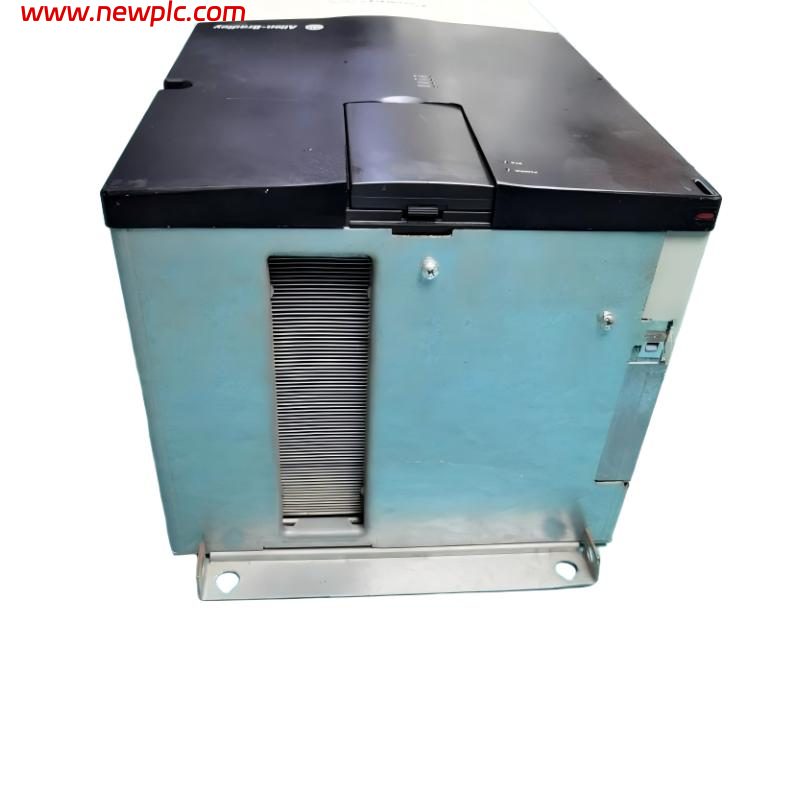

Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Series | PowerFlex 700 |
| Product Type | AC Drive / Variable Frequency Drive |
| Catalog Number | 20BR125A3ANNANC0 |
| Frame Size | Frame 5 |
| Input Voltage | 650 V DC precharge |
| Input Phase | 3-phase |
| Output Phase | 3-phase |
| Input Current | 137.1 A @ 650 V DC |
| Rated Output Current | 125 A |
| Normal-Duty Rating | 100 HP |
| Heavy-Duty Rating | 75 HP |
| Heavy-Duty Continuous Current | 96 A |
| Heavy-Duty Current, 1 Minute | 144 A |
| Heavy-Duty Current, 3 Seconds | 168 A |
| Control Method | Vector control with 24 V DC I/O |
| Selectable Motor Control | Sensorless Vector, V/Hz, Vector Control |
| Feedback | No feedback |
| Analog Inputs | 2 |
| Analog Outputs | 2 |
| Digital Inputs | 6 |
| Digital Outputs | 3 |
| Maximum Output Frequency | 420 Hz |
| Carrier Frequency | 2, 4, 8, and 10 kHz |
| Overload Capability | 110% for 1 minute, 150% for 3 seconds |
| Programmable Current Limit | 20–160% of rated output current |
| Instantaneous Current Limit | 220–300% of rated current, depending on drive rating |
| Brake IGBT | None |
| Internal Brake Resistor | None |
| EMC Filtering | EMC filter with common-mode choke |
| Internal Communication Module | None |
| Human Interface | LCD display with full numeric keypad and programming keys |
| Enclosure Rating | IP20 / NEMA/UL Type 1 |
| Motor Overload Protection | Class 10 |
| Speed Regulation | Approximately 0.1% of base speed over 120:1 in vector control without feedback |
| V/Hz Speed Regulation | Approximately 0.5% of base speed over 40:1 with slip compensation |
| Acceleration / Deceleration | 0–3600 seconds, independently programmable |
| Efficiency | 97.5% at rated current and nominal line voltage |
| Displacement Power Factor | 0.98 |
| Power Ride-Through | 15 ms at full load |
| Logic Control Ride-Through | 0.5 s minimum, 2 s typical |
| Input Voltage Tolerance | ±10% |
| Maximum Short-Circuit Rating | 200,000 A symmetrical, subject to specified installation conditions |
| Operating Temperature | 0–50 °C |
| Relative Humidity | 5–95%, non-condensing |
| Maximum Altitude Without Derating | 1000 m |
| Sound Level | 71 dB @ 200 CFM fan velocity |
| Dimensions (H × W × D) | 689.6 × 308.9 × 275.4 mm |
| Weight | 37.19 kg |
FAQ
FAQ
Q1: What is the Allen-Bradley 20BR125A3ANNANC0?
A: The 20BR125A3ANNANC0 is an Allen-Bradley PowerFlex 700 variable frequency drive designed for industrial motor speed and torque control in DC-bus-powered applications.
Q2: What are the input voltage and rated output current?
A: The supplied specifications list a 650 V DC precharged input and a rated output current of 125 A. Verify the nameplate and installation documentation before connecting the drive.
Q3: What motor power ratings does this drive support?
A: The listed ratings are 100 HP for normal duty and 75 HP for heavy duty. Motor selection should also account for rated current, load profile, and required overload performance.
Q4: What motor control modes are supported?
A: The listed control modes include Sensorless Vector, V/Hz, and Vector Control. The appropriate mode depends on the application’s speed regulation and torque requirements.
Q5: Does the 20BR125A3ANNANC0 support encoder feedback?
A: The supplied specifications identify this configuration as having no feedback. Confirm the installed hardware and control configuration if closed-loop speed regulation is required.
Q6: Does this model include a braking IGBT or internal brake resistor?
A: The supplied configuration lists neither a braking IGBT nor an internal brake resistor. Applications requiring dynamic braking may need compatible external equipment.
Q7: What are the dimensions and weight of this drive?
A: The supplied reference dimensions are 689.6 × 308.9 × 275.4 mm (H × W × D), and the listed weight is 37.19 kg. Confirm these values against the manufacturer’s dimensional drawing before installation.
Q8: What should be checked before installing or replacing this drive?
A: Verify the DC bus voltage, motor current, duty rating, cooling and ventilation, enclosure protection, grounding, wiring, braking requirements, and compatibility with the existing control system.
