Technical Specifications
| Parameter | Description |
|---|---|

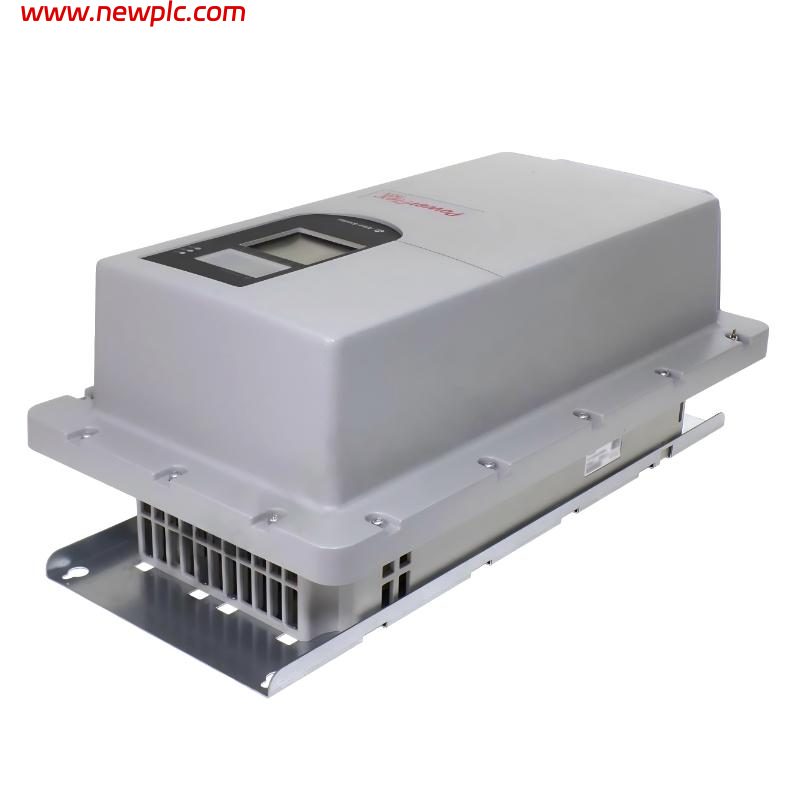

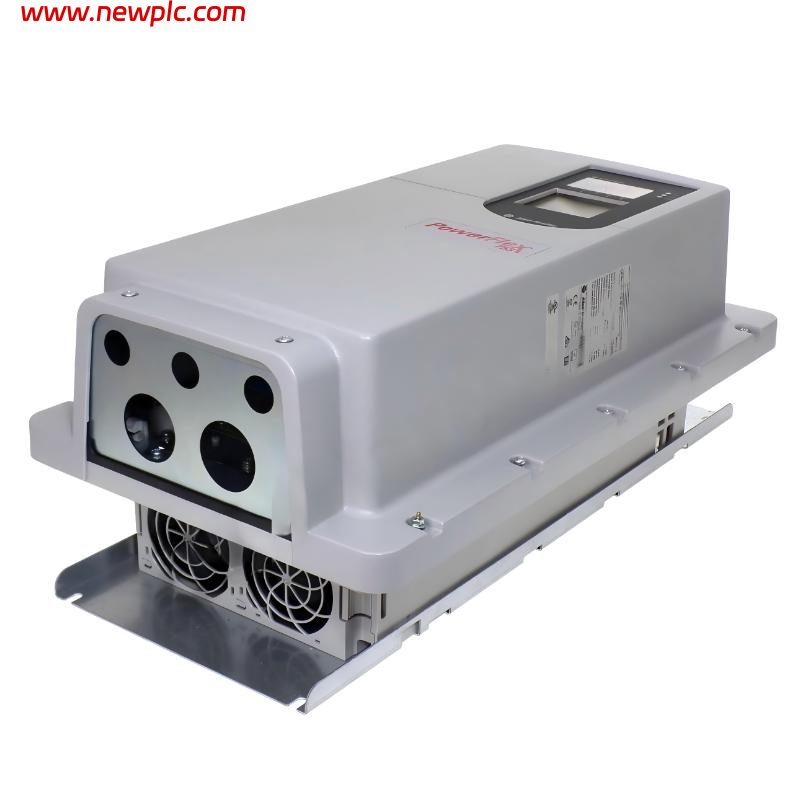

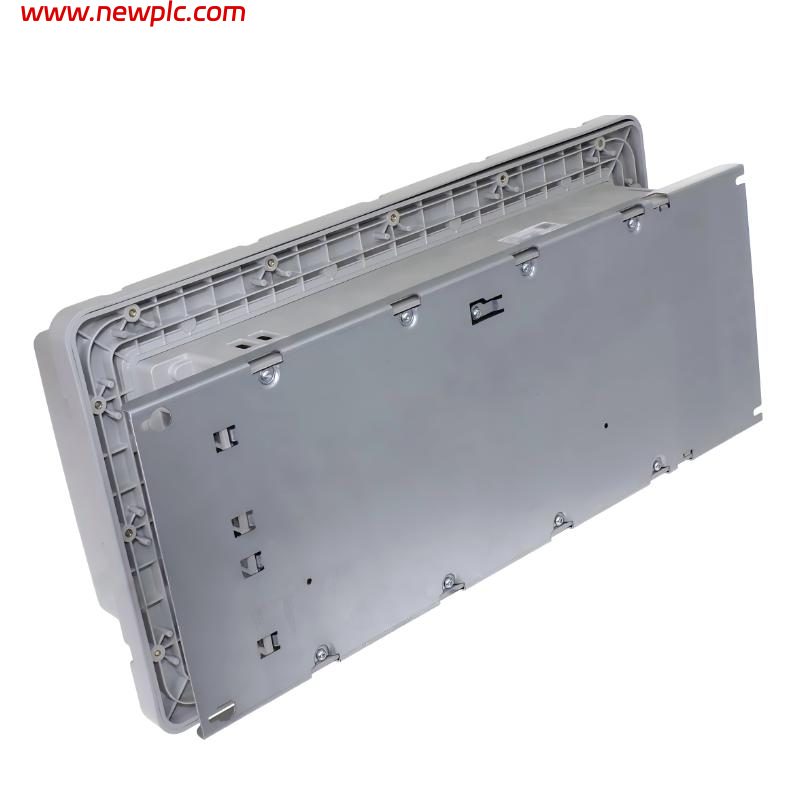

| Product Model | Allen-Bradley 20F11GC3P5JA0NNNNN |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Product Series | PowerFlex® 753 |
| Product Type | AC Variable Frequency Drive (VFD) |
| Function | Provides precise speed, torque, and motor control for three-phase AC motors in industrial applications |
| Application | Pumps, fans, conveyors, compressors, mixers, material handling systems, and general industrial automation |
| Drive Type | PowerFlex 753 with Embedded I/O |
| Input Voltage | 380–480 VAC, Three-phase (400 VAC Class) |
| Input Type | AC Input with DC Terminals |
| Output Current | 3.5 A |
| Motor Power Rating | 1.5 kW (Normal Duty), 1.5 kW (Heavy Duty) |
| Input Frequency | 50/60 Hz |
| Frame Size | Frame 2 |
| Enclosure Rating | IP54 / NEMA Type 12 |
| Cooling Method | Forced Air |
| EMC Filter | Integrated EMC Filter (CM Jumper Installed) |
| Dynamic Braking | Built-in Dynamic Braking Transistor |
| Human Interface Module (HIM) | None (Blank, No HIM) |
| Embedded I/O | Standard Embedded I/O |
| Mounting Type | Wall Mount |
| Operating Temperature | 0°C to +50°C (without derating under specified conditions) |
| Dimensions | Approx. 543.2 × 215.3 × 222.2 mm (H × W × D) |
| Weight | Approx. 18 kg |
FAQ
FAQ
Q1: What is the Allen-Bradley 20F11GC3P5JA0NNNNN used for?
A: The 20F11GC3P5JA0NNNNN is used to control the speed and torque of three-phase AC motors in applications such as conveyors, pumps, fans, mixers, compressors, and other industrial machinery requiring reliable variable-speed operation.
Q2: What are the input voltage and motor power ratings?
A: The drive operates from a 380–480 VAC three-phase power supply (400 V class) and is rated for 1.5 kW in both Normal Duty (ND) and Heavy Duty (HD) applications with a 3.5 A output current.
Q3: Does the 20F11GC3P5JA0NNNNN include an EMC filter and braking transistor?
A: Yes. This configuration includes an integrated EMC filter with the CM jumper installed and a built-in dynamic braking transistor, simplifying installation and improving braking capability.
Q4: What enclosure protection does this drive provide?
A: The drive is supplied in an IP54 / NEMA Type 12 enclosure, offering protection against dust and water splashes, making it suitable for many industrial indoor environments.
Q5: Does this model include an operator keypad (HIM)?
A: No. The 20F11GC3P5JA0NNNNN is supplied with Blank (No HIM). A compatible Human Interface Module can be added separately if local configuration or monitoring is required.
Q6: What are the dimensions and weight of the 20F11GC3P5JA0NNNNN?
A: The drive measures approximately 543.2 × 215.3 × 222.2 mm (H × W × D) and weighs approximately 18 kg, making it suitable for wall-mounted industrial control installations.
Q7: What communication and expansion options are available?
A: The PowerFlex 753 platform supports a wide range of optional communication modules, including EtherNet/IP and other industrial network interfaces, along with additional I/O expansion cards to meet application requirements.
Q8: What should be checked before installing the 20F11GC3P5JA0NNNNN?
A: Before installation, verify the incoming three-phase voltage, motor rating, wiring configuration, grounding, enclosure ventilation, ambient temperature, braking requirements, and parameter settings. After commissioning, confirm motor rotation, protective functions, and communication settings to ensure stable and reliable operation.
