Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |

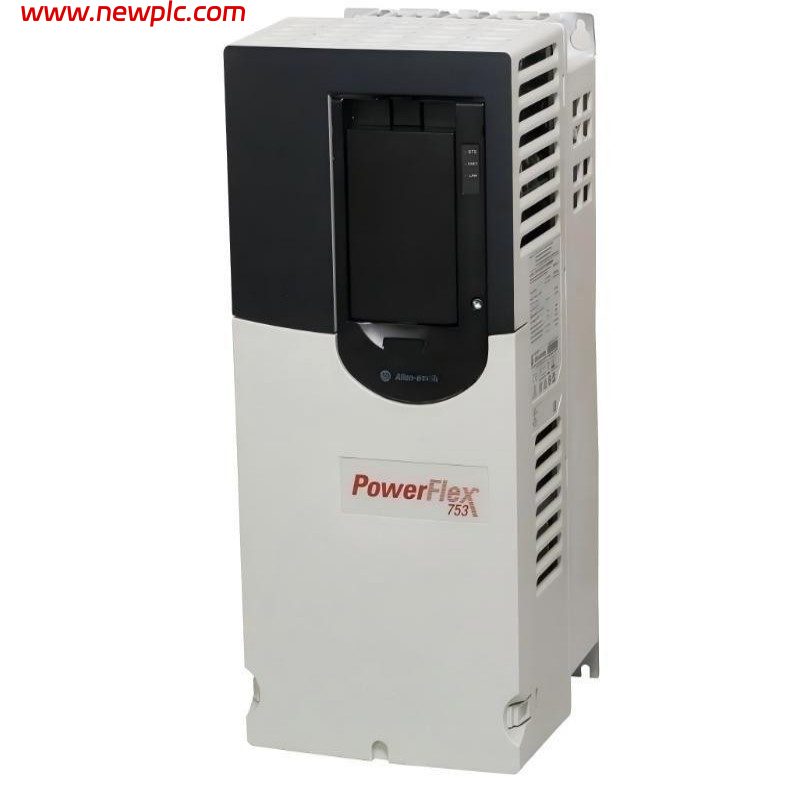

| Product | PowerFlex 753 AC Drive |
| Model | 20F11GE011AA0NNNNN |
| Drive Series | PowerFlex 753 |
| Product Type | Air-Cooled AC Drive with Embedded I/O |
| Input Voltage | 600 V AC, 3-phase |
| Input Frequency | 50/60 Hz |
| Input Type | AC input with precharge and DC terminals |
| Rated Output Current, Normal Duty | 11 A |
| Output Current, 1 min, Normal Duty | 12.1 A |
| Output Current, 3 sec, Normal Duty | 16.5 A |
| Rated Output Current, Heavy Duty | 9 A |
| Output Current, 1 min, Heavy Duty | 13.5 A |
| Output Current, 3 sec, Heavy Duty | 16.5 A |
| Normal-Duty Power Rating | 10 HP / approximately 7.5 kW |
| Heavy-Duty Power Rating | 7.5 HP / approximately 5.5 kW |
| Frame Size | Frame 3 |
| Enclosure Rating | IP54 / NEMA Type 12 |
| Cooling Method | Forced-air cooling |
| Protection Type | Standard protection |
| Digital I/O | Embedded I/O |
| Human Interface Module (HIM) | Blank configuration; no HIM included |
| EMC Filtering | EMC filter |
| Common-Mode Jumper | Removed in this AA0 configuration |
| Dynamic Braking | Dynamic braking transistor included |
| Internal Braking Resistor | Not included |
| Motor Control | Adjustable-frequency AC motor control; V/Hz, sensorless vector and vector control capabilities depend on configuration |
| Communication | Optional communication modules; no specific network module confirmed for this catalog number |
| Feedback Options | Optional feedback modules supported |
| Operating Temperature | Refer to the PowerFlex 753 installation manual for ambient-temperature and derating requirements |
| Maximum Altitude | Refer to manufacturer specifications for derating requirements |
| Country of Origin | United States of America, according to Rockwell Automation |
| Lifecycle Status | Discontinued |
| Dimensions (H × W × D) | 551 × 268 × 220.1 mm |
| Weight | 12 kg |
FAQ
FAQ
Q1: What is the Allen-Bradley 20F11GE011AA0NNNNN?
A: It is an Allen-Bradley PowerFlex 753 AC drive designed for industrial motor speed control, with embedded I/O and a protective IP54/NEMA Type 12 enclosure.
Q2: What are the input voltage and output current ratings?
A: The drive operates on 600 V AC, three-phase input. It is rated at 11 A for normal duty and 9 A for heavy duty.
Q3: What are the dimensions of the 20F11GE011AA0NNNNN?
A: The approximate dimensions are 551 mm high × 268 mm wide × 220.1 mm deep.
Q4: How much does the 20F11GE011AA0NNNNN weigh?
A: The approximate drive weight is 12 kg. Allow additional capacity for packaging and any separately supplied accessories during shipping or installation.
Q5: Does this drive include dynamic braking?
A: Yes. This configuration includes a dynamic braking transistor, but it does not include an internal braking resistor. Check the manufacturer’s specifications when selecting an external resistor.
Q6: What enclosure protection does this model provide?
A: The drive has an IP54/NEMA Type 12 enclosure, designed to protect against dust and water splashes under specified industrial operating conditions.
Q7: Does the drive include a HIM operator interface?
A: No. The catalog number specifies a blank configuration without a Human Interface Module. A compatible HIM can be purchased separately if required.
Q8: Is the 20F11GE011AA0NNNNN still available?
A: Rockwell Automation lists this catalog number as discontinued, with 20F11GE011JA0NNNNN as the direct replacement. Confirm the electrical ratings, enclosure, common-mode jumper configuration, and accessories before substituting the replacement model.
