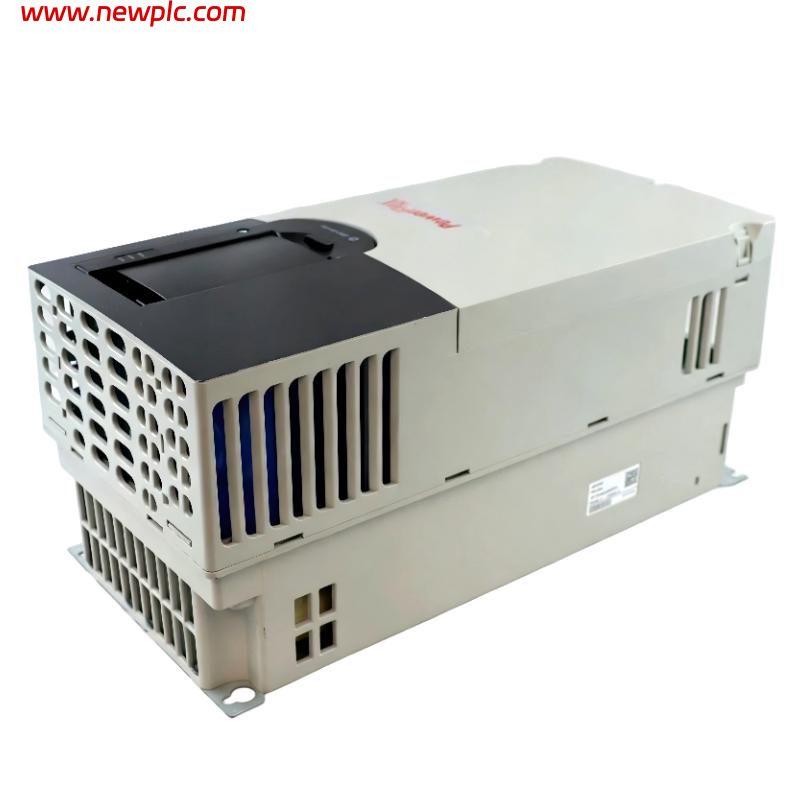

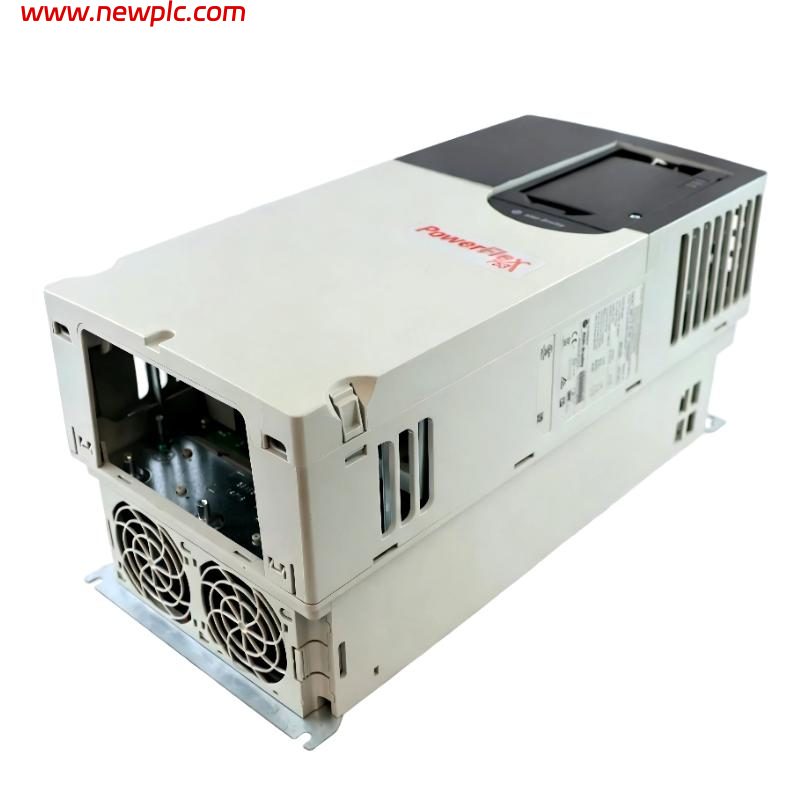

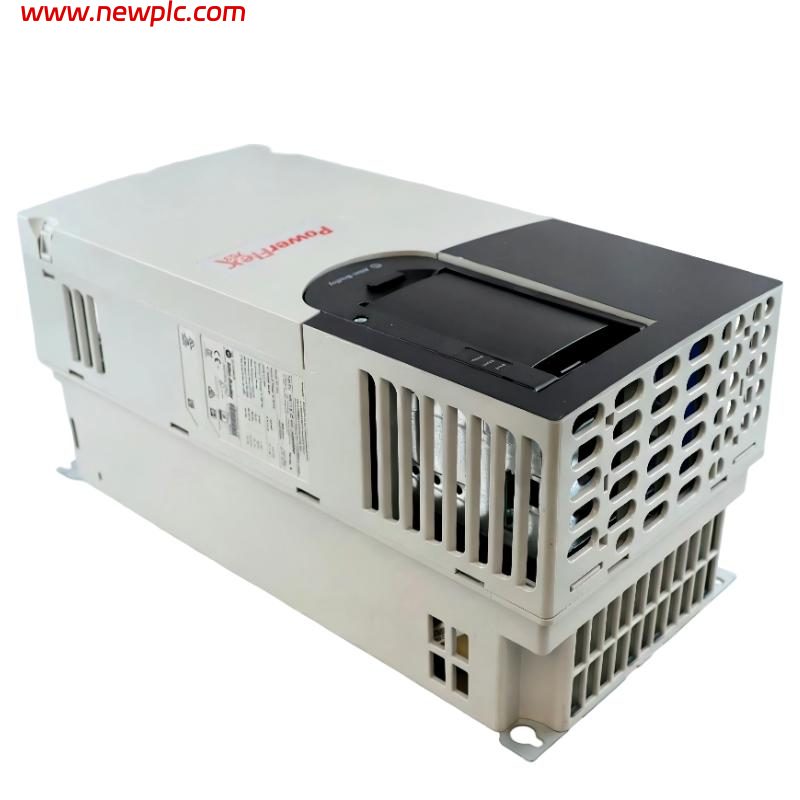

Allen Bradley 20F11ND034AA0NNNNN AC Variable Frequency Drive (VFD)

FAQ

Q1: What is the Allen-Bradley 20F11ND034AA0NNNNN used for?
A: The 20F11ND034AA0NNNNN is used to provide precise speed and torque control for three-phase AC motors in applications such as pumps, conveyors, fans, compressors, mixers, and other industrial machinery.

Q2: What are the input voltage and output ratings of this drive?
A: The drive operates on a 380–480 VAC, three-phase power supply and provides a 34 A output. It supports 18.5 kW (25 HP) motors in Normal Duty applications and 15 kW (20 HP) motors in Heavy Duty applications.

Q3: Does the 20F11ND034AA0NNNNN include an EMC filter and dynamic braking transistor?
A: Yes. This model includes an integrated EMC filter with the CM jumper removed and a built-in dynamic braking transistor, allowing the use of an external braking resistor for applications requiring rapid deceleration.

Q4: What enclosure protection does this drive provide?
A: The drive features an IP20/IP00, NEMA/UL Open Type enclosure. It is intended for installation inside a suitable industrial control cabinet to provide environmental protection.

Q5: Does this model include a Human Interface Module (HIM)?
A: No. The 20F11ND034AA0NNNNN is supplied with Blank (No HIM). A compatible PowerFlex HIM can be installed separately for local programming, monitoring, and diagnostics.

Q6: What are the dimensions and weight of the 20F11ND034AA0NNNNN?
A: The drive measures approximately 454 × 190 × 212 mm (17.87 × 7.48 × 8.35 in.) and weighs approximately 11.8 kg (26.1 lb).

Q7: What control features are available on the PowerFlex 753 platform?
A: The PowerFlex 753 supports V/Hz, Sensorless Vector, Closed Loop Vector, and PID control. It also supports optional communication adapters, encoder feedback modules, and additional I/O expansion cards for flexible system integration.

Q8: What should be checked before installing the 20F11ND034AA0NNNNN?
A: Before installation, verify the incoming power supply, motor ratings, wiring, grounding, cabinet ventilation, braking resistor requirements, and parameter settings. After commissioning, confirm motor rotation, protective functions, and communication settings to ensure reliable operation.
