Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Product Type | AC Drive / Variable Frequency Drive |

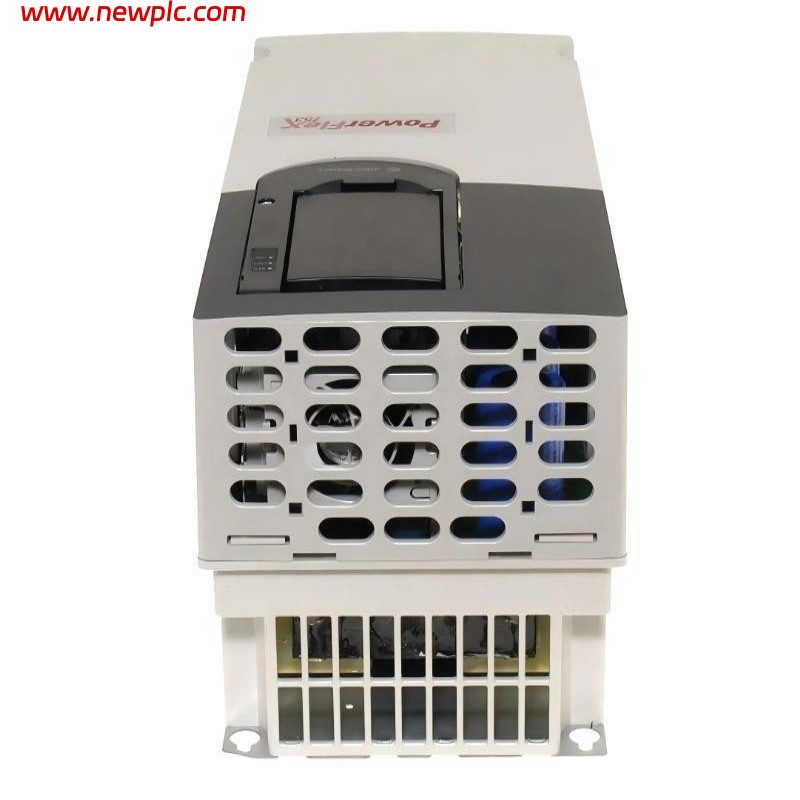

| Product Model | 20F11ND077JA0NNNNN |
| Product Series | PowerFlex 753 |
| Drive Family | PowerFlex 750-Series |
| Drive Type | Air-Cooled AC Drive with Embedded I/O |
| Input Voltage | 480 VAC |
| Input Phase | 3-Phase |
| Normal-Duty Output Current | 77 A |
| Heavy-Duty Output Current | 62 A |
| Normal-Duty Power Rating | 60 HP / 45 kW |
| Heavy-Duty Power Rating | 50 HP / 37 kW |
| Frame Size | Frame 5 |
| Input Configuration | AC Input with DC Terminals |
| Enclosure | IP20/IP00, NEMA/UL Open Type |
| EMC Filtering | Filtered |
| CM Jumper | Installed |
| Dynamic Braking | Internal DB Transistor |
| Human Interface Module (HIM) | Blank / No HIM |
| Embedded I/O | Yes |
| Cooling Method | Forced Air |
| Mounting | Panel / Cabinet Mounting |
| Dimensions (H × W × D) | Approx. 550 × 270 × 212 mm |
| Weight | Approx. 20.4 kg |
| Battery | No |
| Magnet | No |
| Product Lifecycle Status | Active |
FAQ
FAQ
Q1: What is the Allen-Bradley 20F11ND077JA0NNNNN?
A: It is a PowerFlex 753 AC drive manufactured by Rockwell Automation for industrial motor speed control and automation applications.
Q2: What is the input voltage of this drive?
A: The drive operates on a 480 VAC, three-phase power supply.
Q3: What are the normal-duty and heavy-duty power ratings?
A: The normal-duty rating is 60 HP (approximately 45 kW), and the heavy-duty rating is 50 HP (approximately 37 kW).
Q4: What are the normal-duty and heavy-duty output currents?
A: The normal-duty output current is 77 A, while the heavy-duty output current is 62 A.
Q5: What are the dimensions and weight of this model?
A: The approximate dimensions are 550 × 270 × 212 mm (H × W × D), and the weight is approximately 20.4 kg.
Q6: Does the 20F11ND077JA0NNNNN include embedded I/O?
A: Yes. It includes embedded I/O to support control signal connections and integration with industrial automation systems.
Q7: Does this model include dynamic braking?
A: Yes. It includes an internal dynamic braking transistor. A suitable external braking resistor may be required depending on the application.
Q8: Is the 20F11ND077JA0NNNNN an active product?
A: Yes. Rockwell Automation lists this catalog number as active. Confirm current stock and lead time with the supplier before placing an order.
